Rotary Potentiometer - 10k Ohm, Linear

AUD $1.15

In Stock: Ships Today

Back orders: 0 Available

Our Code: MCU-60216

Supplier: [SparkFun MPN:9939]

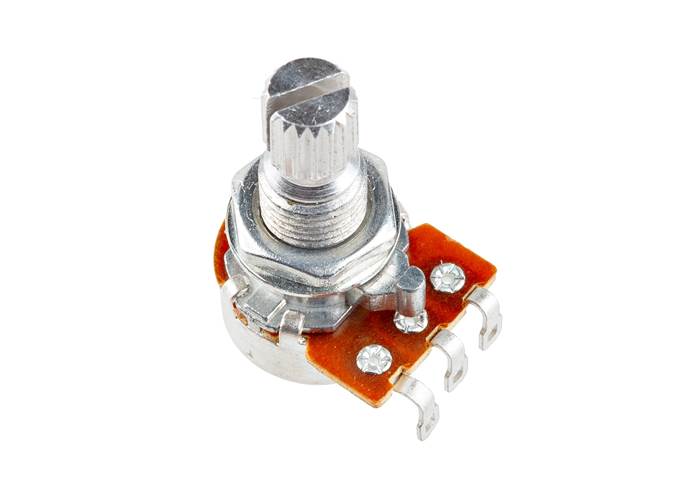

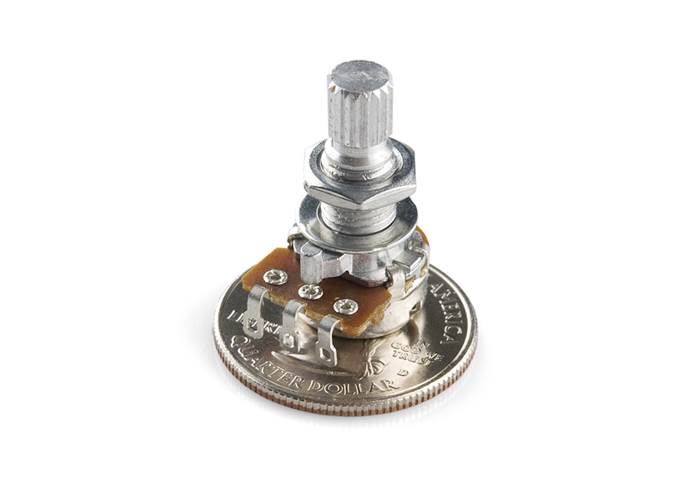

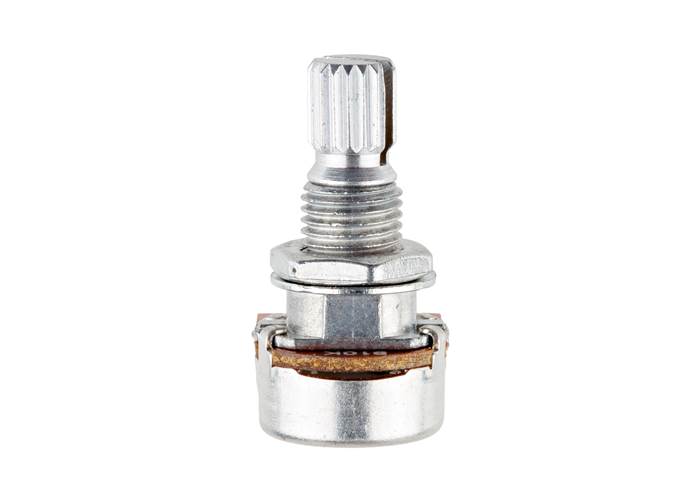

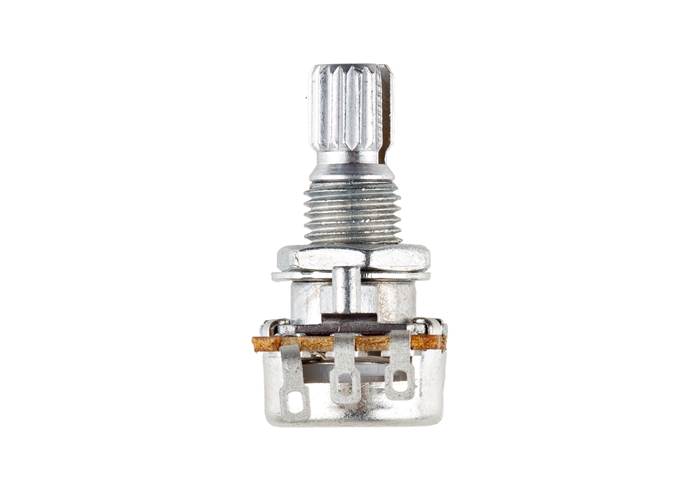

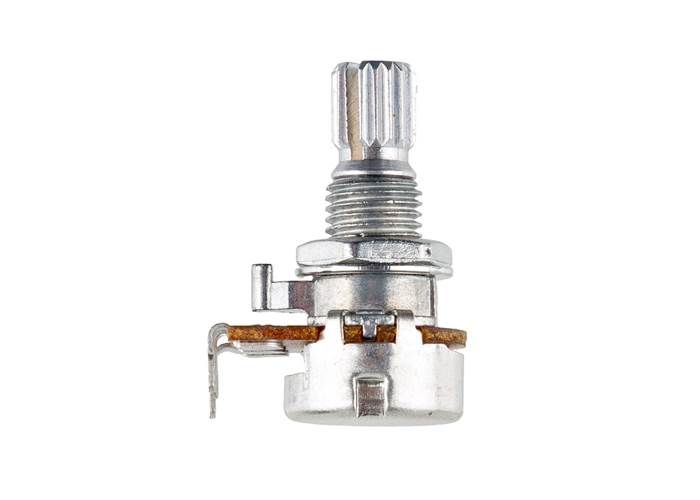

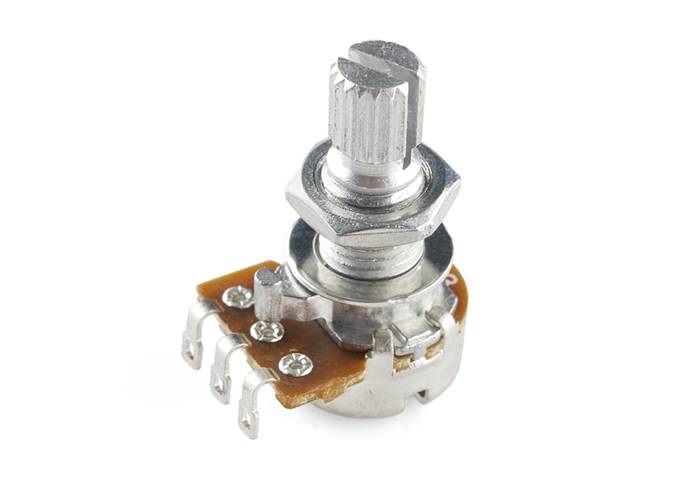

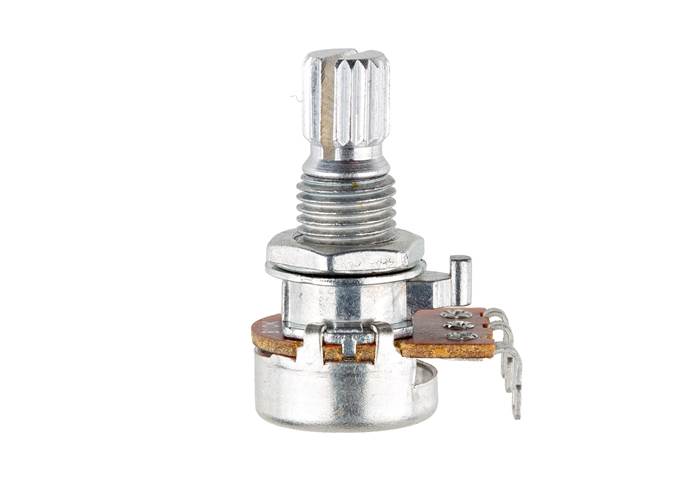

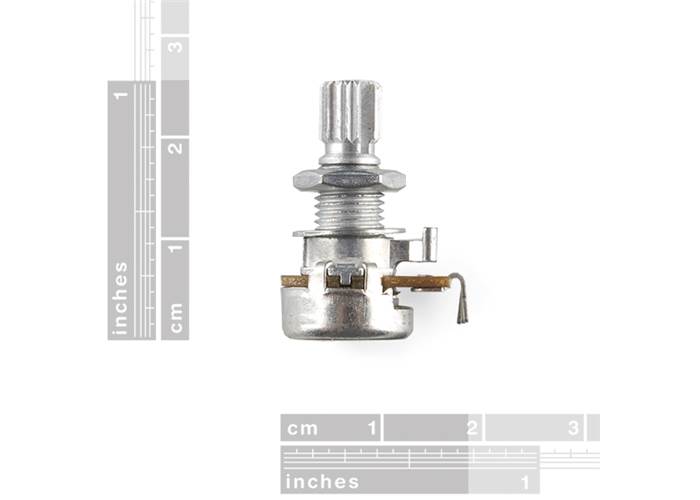

Rotary potentiometer rated at linear 10k Ohm. Metal  build with 15000 life cycle,  300 degree range,  0.08W power this is ideal as an analog input.


Description

Found in most electronic devices that have dials, a potentiometer is a variable resistor where the resistance changes as you turn the knob. In this linear pot the resistance is proportional to the amount the knob is turned going from 0 Ohms to 10k Ohms it can be connected to an analog input pin on a microcontroller to provide a smooth changing input value to control other devices like motor speed, light intensity.

VCC and GND are connected to the other pins and the centre pin will be the variable voltage. The pot is not designed to handle big loads like directly varying power to a motor. It is rated at 0.8W so is for use as an input device only.

 Check the datasheet for more specs.
