Rotary Encoder

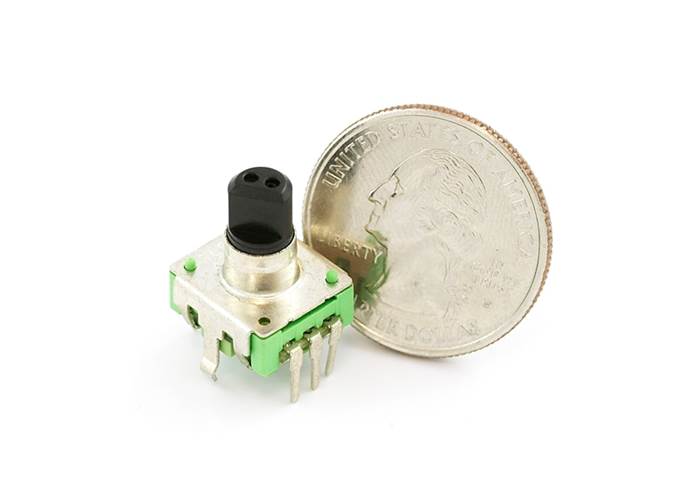

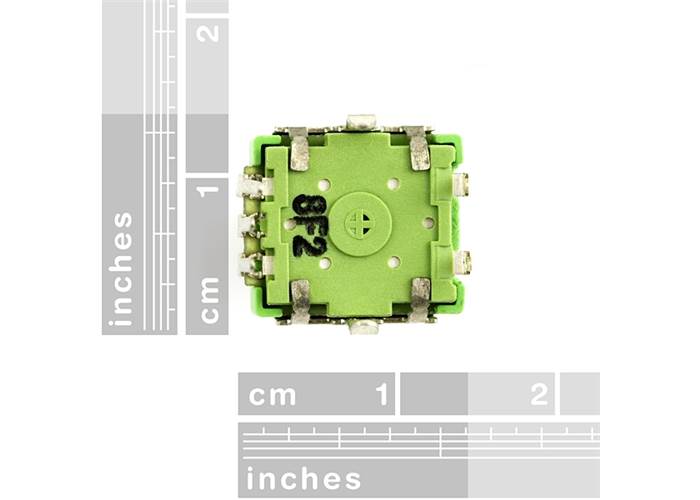

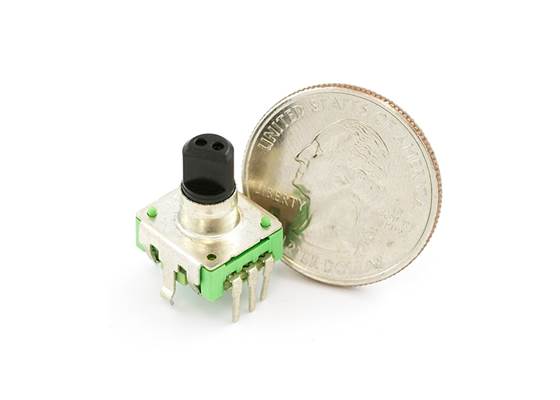

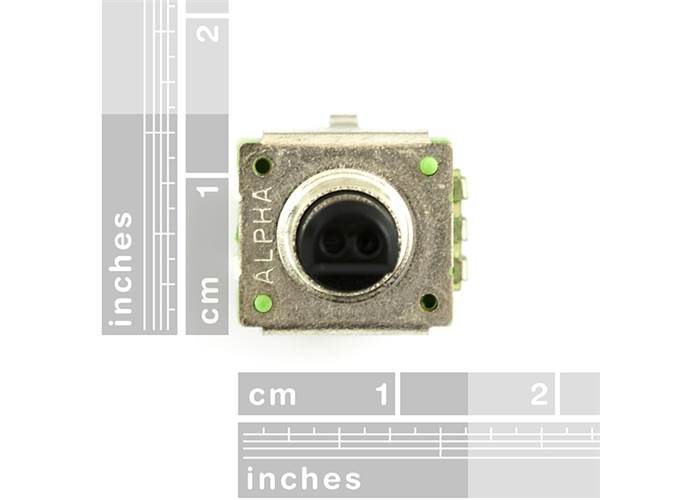

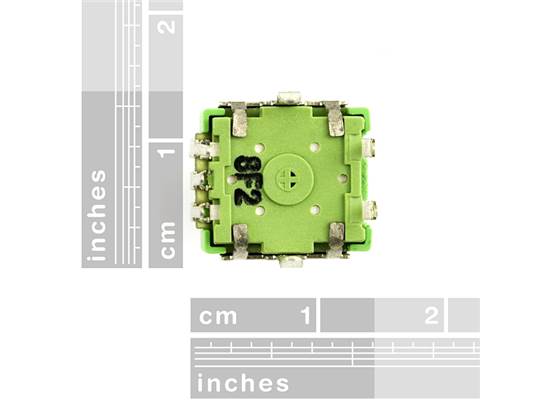

This is a 12-step rotary encoder with a nice 'clicking' feel. It's breadboard friendly, and has a pretty handy select switch (by pushing in on the knob). The encoder is different from a potentiometer in that an encoder has full rotation without limits. The unit outputs grey code so that you can tell how much and in which direction the encoder has been turned.

This unit does not come with a knob, but a working knob is related below.

Documents:

• Datasheet
• Rotary Encoder Tutorial and Arduino Project.
• Example Arduino Project.
• Example Cooking Timer
• bildr Tutorial

• Bildr example showing how to use an encoder in Arduino
• Rotary Encoder Tutorial and Arduino Project
• Example Arduino Project
• Example Cooking Timer
• Datasheet
