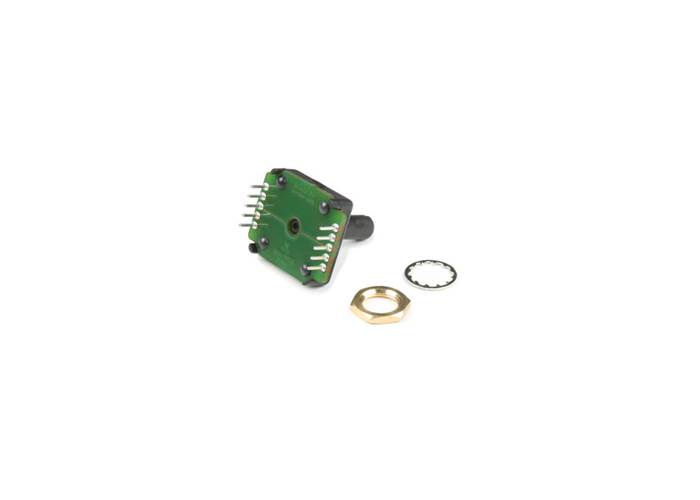

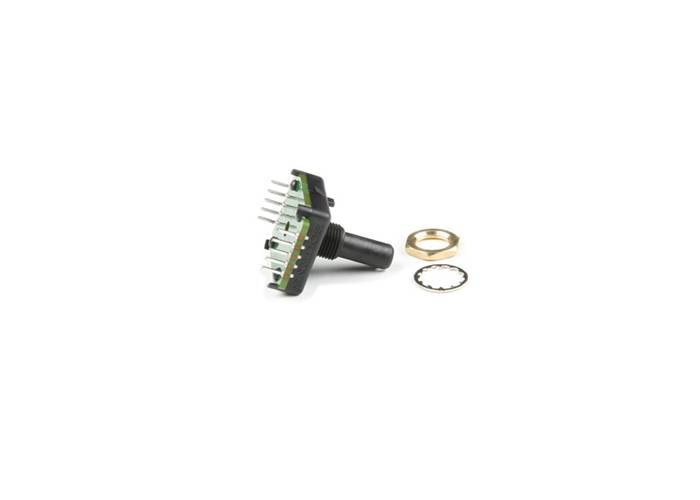

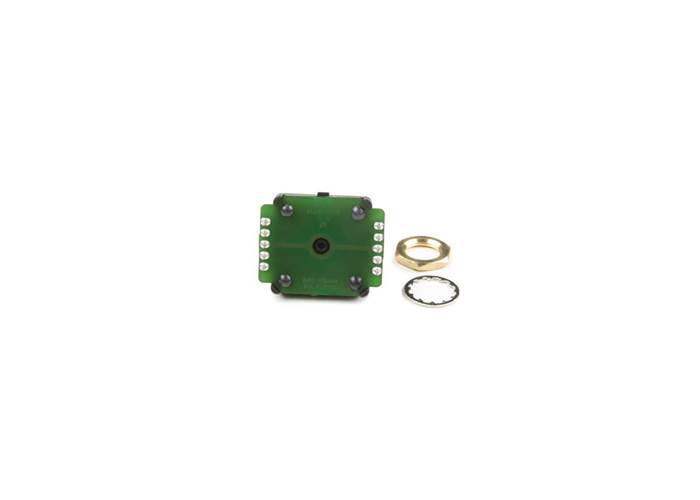

Bourns Absolute Encoder (EAW0J-B24-AE0128L)

AUD $13.95

In Stock: Ships Today

Back orders: Ship 30 units in 7 days

Our Code: SKU-005095

Supplier: [SparkFun MPN:15036]

The Bourns Absolute Encoder is a digital control knob that provides 128 unique results evenly spaced around a full circle. It is designed as a control panel knob but can be adapted for other uses.


Description

The Bourns Absolute Encoder is a digital control knob that provides 128 unique results evenly spaced around a full circle. It is designed as a control panel knob but can be adapted for other uses. This can be a good alternative to using a potentiometer and analogue pin, as this allows for full-turn and multi-turn operation.

It differs from the more common incremental rotary encoder which has only two or four values in a rotation and is designed to measure full rotations and direction. This measures angles and absolute position is maintained between power cycles.

Includes:

  • Nut and washer (9mm mounting hole)
  • Solder jumpers
  • Pull-down resistors for address pins

Specifications

  • 128 rotary positions
  • Memory of last position before power-off
  • 0.1" and Grove header locations
  • ¼ in. round shaft (slotted end)
