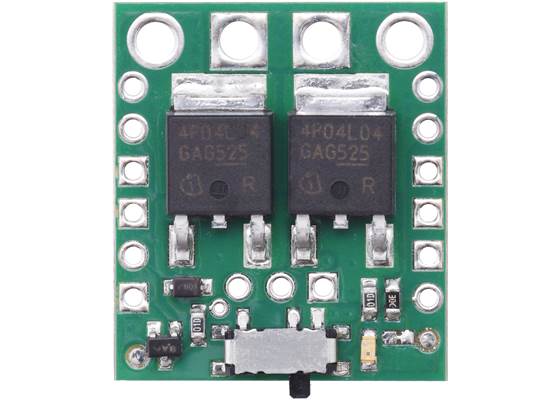

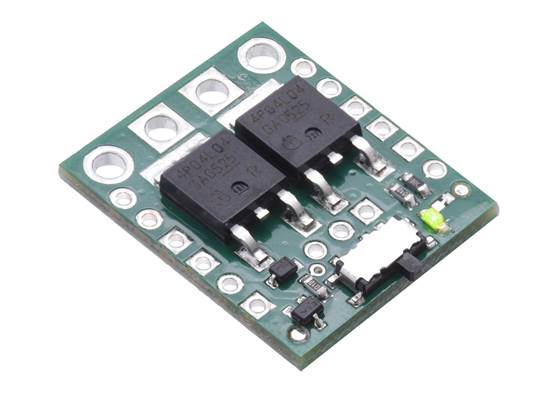

Big MOSFET Slide Switch with Reverse Voltage Protection, HP

This breadboard-compatible module is an alternative to bulky power switches. It uses a small integrated slide switch to control a high-side power MOSFET that can deliver continuous currents up to around 16 A at 4.5 V to 40 V .

AUD$ 12.95

Special Order

Shipping from $7.90

+215 more from our supplier in 7-10 days

Our Code: SKU-003440

Supplier Link: [Pololu MPN:2815]


Description

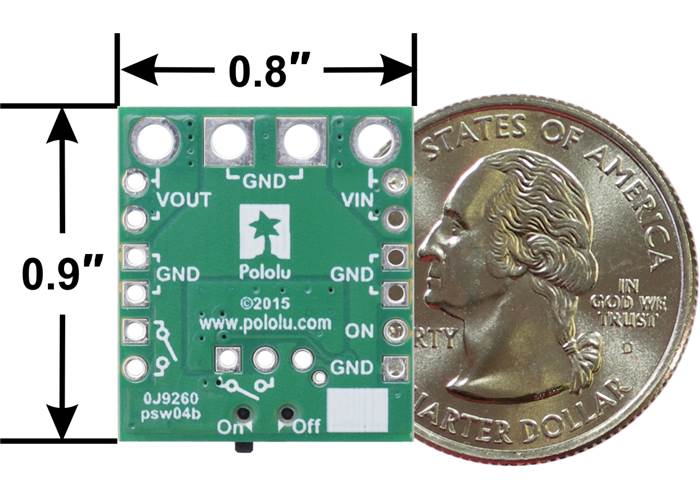

Big MOSFET Slide Switch with Reverse Voltage Protection, bottom view with dimensions

Overview

This product is a power switch implemented as a pair of P-channel MOSFETs configured as a high-side switch with reverse voltage protection and controlled by a micro slide switch. Because the main current does not go through the controlling mechanical switch, a variety of switches can be used without concern for the current they can carry. For example, a small slide or toggle switch can be mounted conveniently on a control panel with thin wires running to it, while the main power path can be shorter and with thicker wires. Pushbutton or tactile switches can also be used for momentary switching applications.

Unlike the Pololu Pushbutton Power Switches, which can lose their state when power is disconnected and reapplied, the conducting state of the MOSFET Slide Switches is determined only by the physical control switch (or a signal supplied to the “ON” pin), independent of power applied to the board. This can make them more appropriate for applications where the supplied power may be intermittent.

Warning: Do not use this switch as an emergency cutoff or similar safety disconnect in applications where failure to cut power could lead to injury or property damage.

Four versions of the MOSFET slide switches are available:

The two Mini MOSFET Slide Switches are smaller, lower-current versions that are useful for applications with tight size constraints or lower power requirements. Also, the the Mini LV is the only one of the four that works below 4.5 V; since it can operate down to 1.8 V, this version can be used with a single lithium cell battery.

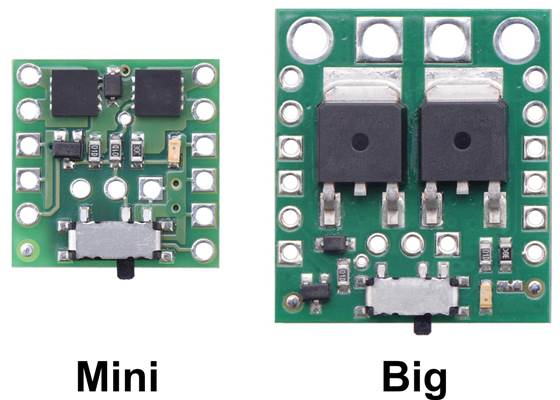

Side-by-side comparison of the Mini and Big MOSFET Slide Switches

The pinout of the Big version is the same as the pinout of the Mini version with several additional redundant connection points for convenience, including main power connections that are compatible with 5 mm terminal blocks.

The primary functional difference between the each of the units arises from the MOSFET used, which sets the operating range and performance of the units:


LV

SV

MP

HP
Absolute max voltage: 20 V 40 V
Recommended operating voltage: 1.8 V to 16 V 4.5 V to 32 V
MOSFET combined on resistance (max) 26 mΩ @ 1.8 V
16 mΩ @ 4.5 V 90 mΩ @ 4.5 V 40 mΩ @ 4.5 V 13 mΩ @ 4.5 V
50 mΩ @ 10 V 30 mΩ @ 10 V 8.6 mΩ @ 10 V
Continuous current at 55°C(1) 3.0 A 2.0 A 4.0 A 6.0 A
Continuous current at 150°C(1) 6.0 A 4.3 A 8.0 A 16 A
Maximum current 12 A 7.2 A 40 A 90 A
Current consumption in on state(2) ~210 μA/V ~65 μA/V
LED colour red green
Size 0.6″ × 0.6″ × 0.1″ 0.8″ × 1.0″ × 0.16″
Weight 0.6 g 2.7 g

1 At 12 V with ambient temperature of 22°C in still air.

2 On state current is dominated by indicator LED; current is approximately proportional to input voltage.

Using the MOSFET Slide Switch

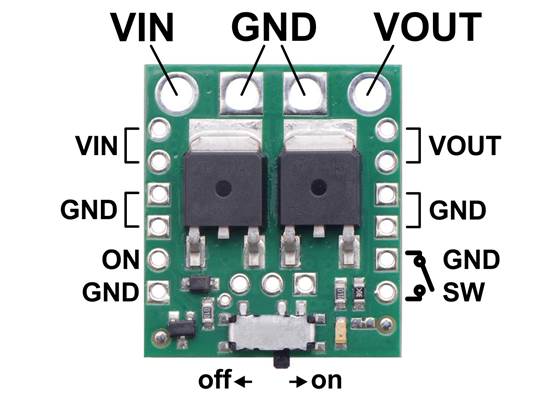

Pinout diagram of the Big MOSFET Slide Switch with Reverse Voltage Protection

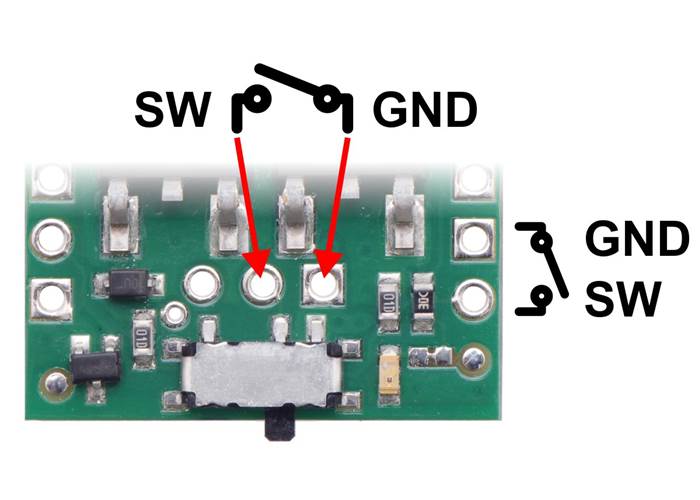

Connecting external switches to the Big MOSFET Slide Switch with Reverse Voltage Protection

In the most basic application, power can be applied to the VIN and ground pins, with the on-board mini slide switch controlling power on the VOUT pins. To use an alternate SPST switch to control the MOSFETs, set the on-board slide switch to the off position and connect the alternate switch between ground and the switch control terminal, which is accessible both in the centre of the board and along the side. The following example shows a larger slide switch soldered directly to the three through-hole pins in the centre of the board:

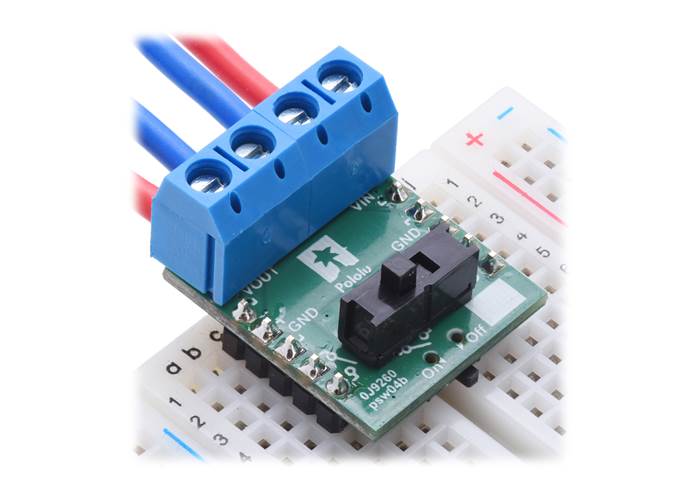

An example of using a different through-hole slide switch with the Big MOSFET Slide Switch

If the physical switch is in the “off” position, the switch state can also be controlled by a digital signal (e.g. from a microcontroller) via the “ON” control pin. Driving the “ON” pin low (or leaving it disconnected) will leave the switch off; driving the pin beyond approximately 1 V will turn the switch on. The maximum voltage for the “ON” pin is 30 V, independent of the switch voltage (VIN).

Each power node can be accessed through a large hole along the top side of the board or two smaller 0.1″-spaced holes along the sides of the board. For applications drawing more than 5 A, you should either use the large holes or both 0.1″-spaced holes for each power connection.

Included Hardware

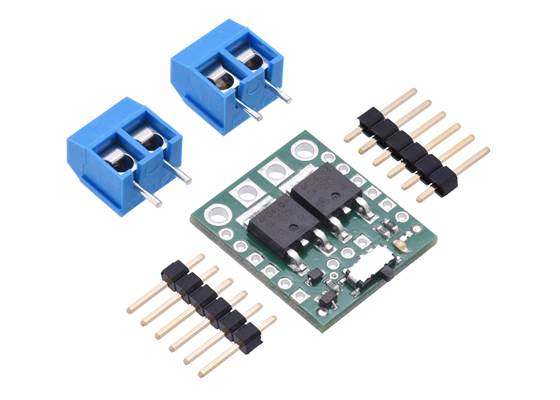

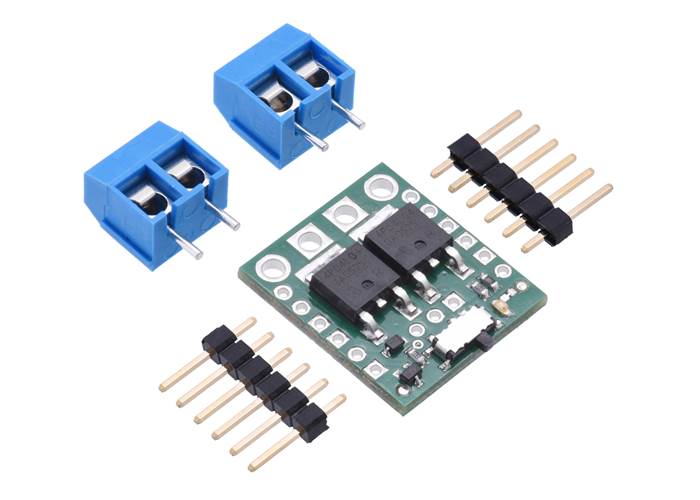

Big MOSFET Slide Switch with Reverse Voltage Protection, shown with included hardware

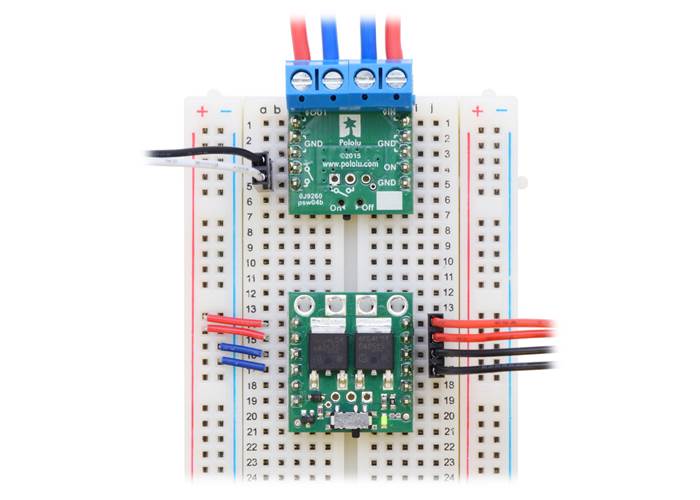

Big MOSFET Slide Switches showing two assembly options for use with a breadboard

Two 6-pin straight breakaway male headers and two 2-pin 5mm terminal blocks are included with each switch, and you can choose which of these components, if any, to solder to the board. The terminal blocks work with the four large holes, and the header strips allow the switch to be used with solderless breadboards and perforated circuit boards with standard 0.1″ spacing. If you want to use the terminal blocks, we recommend you install them on the side of the board without components, as shown in the above breadboard picture. The terminal blocks will cover one of each of the smaller VIN and VOUT holes, so you should not solder header pins into those holes if you plan on using terminal blocks.

Note that the terminal blocks are only rated for 16 A, so for higher-power applications, thick wires should be soldered directly to the board.

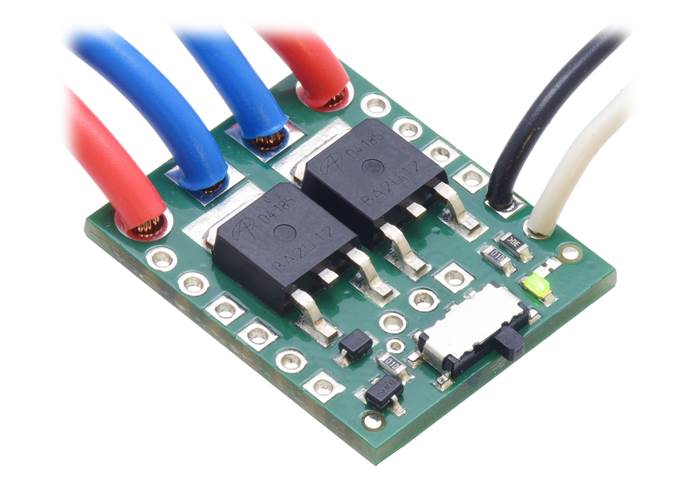

Big MOSFET Slide Switch with Reverse Voltage Protection, assembled with wires soldered directly to the board

Thermal and power dissipation considerations

Because MOSFETs in the on state are effectively resistive, the power heating the board is proportional to the square of the current flowing through it. The comparison table near the top of this page shows typical currents that heat the MOSFETs to 55°C, where the MOSFETs start being noticeably warm but are still generally safe to touch, and currents that heat the MOSFETs to 150°C the absolute limit for the MOSFETs. With adequate cooling, or for brief periods if the MOSFETs are not hot to begin with, currents up to the listed maximums are attainable.

Transient protection

Interrupting large currents can cause voltage spikes (positive on the input side and negative on the output side) that depend on the inductance of the power connections and that can exceed the limits of the device. Appropriate measures to limit the size of these spikes include minimising lengths of wires, placing capacitors at the power switch to smooth the spikes and absorb some of the energy, placing a schottky diode across the power output to absorb negative spikes, and placing a transient voltage suppressor (TVS) across the power input to absorb positive spikes.

Schematic diagram

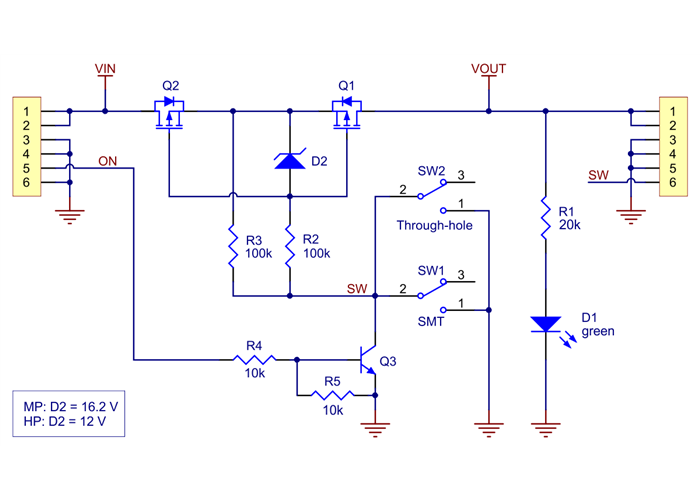

Schematic diagram of the Big MOSFET Slide Switch with Reverse Voltage Protection

This diagram is also available as a downloadable PDF (647k pdf).


Specifications

Dimensions

Size: 0.8″ × 0.9″ × 0.16″1
Weight: 2.6 g2

General specifications

Current rating: 16 A3
Minimum operating voltage: 4.5 V
Maximum operating voltage: 40 V4
Reverse voltage protection?: Y

Identifying markings

PCB dev codes: psw04b
Other PCB markings: 0J9260

Notes:

1
Without included optional connectors. This also does not include the slide switch lever, which extends past the edge of the board by approximately 0.04″ (1 mm).
2
Without included optional connectors.
3
Continuous at 12 V, without exceeding 150°C.
4
Recommended maximum is 32 V.

Resources

File downloads

Big MOSFET Slide Switch with Reverse Voltage Protection schematic diagram (647k pdf)
Printable schematic diagram of the Big MOSFET Slide Switch with Reverse Voltage Protection.
Dimension diagram of the Pololu Big MOSFET Slide Switch with Reverse Voltage Protection (389k pdf)
Drill guide for the Big MOSFET Slide Switch with Reverse Voltage Protection (37k dxf)
This DXF drawing shows the locations of all of the board’s holes.
