This ball castor uses a 3/4″ diameter metal ball. The height of the assembled kit ranges from 0.8″ to 1.1″.
In stock in Australia
Shipping from $7.90
+565 more from our supplier in 7-10 days
Our Code: SKU-002440
Supplier Link: [Pololu MPN:955]
This ball castor kit includes a black ABS housing, a 3/4″ diameter metal ball, two spacers (1/16″ and 1/8″ thick), and two #2 screw sets. The total height of the ball castor, 0.83″, can be increased to about 1″ using the included spacers. The two included #2 screws can be used to mount the ball castor to your chassis (the distance between the screw holes is 0.61″).
Note that our ball casters are designed for small robots; they are not intended to bear more than a few pounds. With more weight than this, friction between the ball and the housing will probably keep it from rolling well.

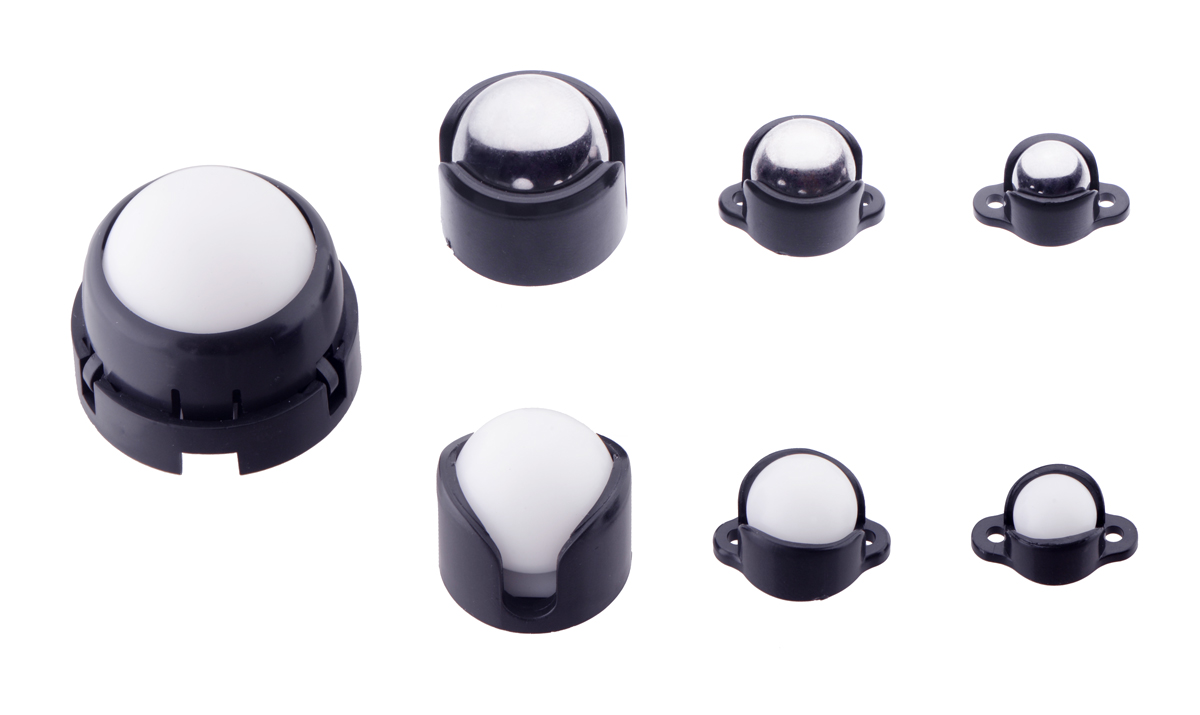

Pololu ball castor ball diameter |
height with no spacers |
distance between screw holes |
weight with no spacers or screws |
0.40″ | 0.53″ | 0.03 oz | |
0.40″ | 0.53″ | 0.14 oz | |
0.53″ | 0.58″ | 0.07 oz | |
0.53″ | 0.58″ | 0.32 oz | |
0.91″ | 0.24″ | 0.25 oz | |
3/4″ metal ball |
0.83″ | 0.61″ | 1.05 oz |
1.10″ | 0.48″ | 0.65 oz | |
1.10″ | 0.48″ | 0.58 oz | |
1.10″ | 0.70″ | 0.36 oz |
