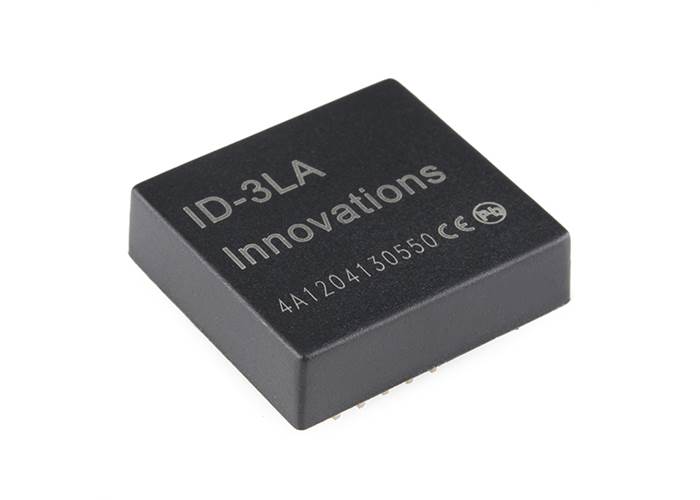

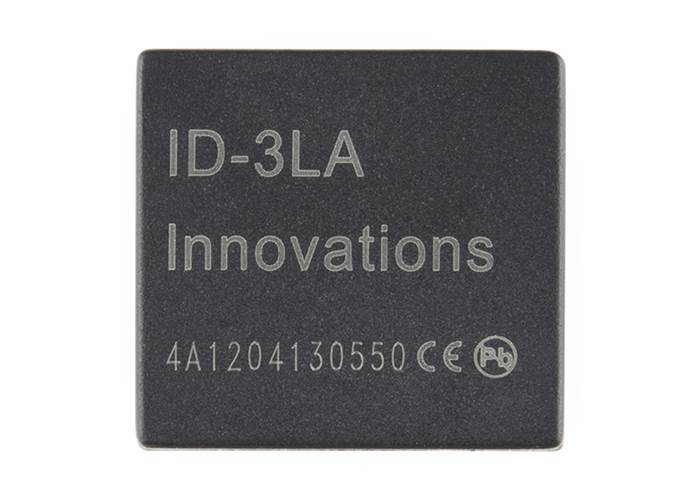

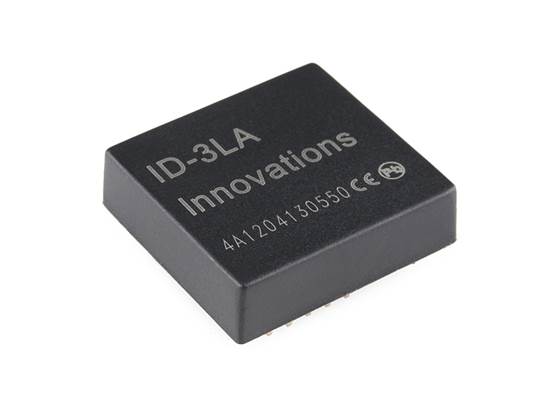

RFID Reader ID-3LA (125 kHz)

AUD $41.95

Order As Required

Back orders: Ship 52 units in 7 days

Our Code: SKU-001163

Supplier: [SparkFun MPN:11862]

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-3LA, a very simple to use RFID reader module from ID Innovations.


Description

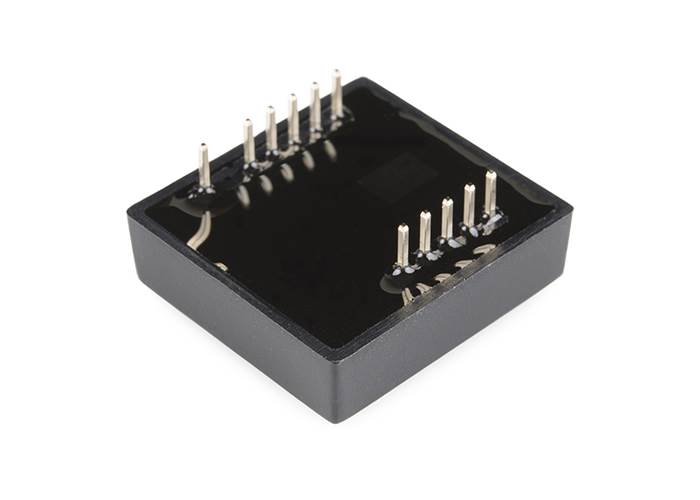

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-3LA, a very simple to use RFID reader module from ID Innovations. The only holdups are the 2mm pin spacing and you will need an external antenna. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.

Note: The new ID-3LA is essentially the same as the ID-2, but has a lower voltage input.


Specifications

  • 2.8~5V supply
  • 125kHz read frequency
  • EM4001 64-bit RFID tag compatible
  • 9600bps TTL and RS232 output
  • Magnetic stripe emulation output

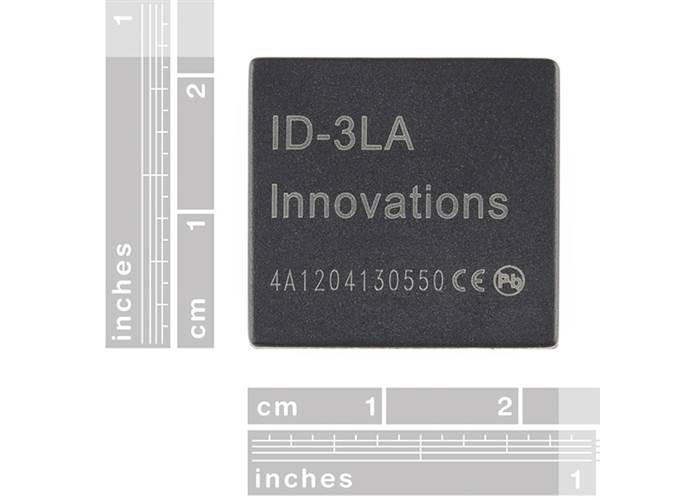

Dimensions: 19x21mm
