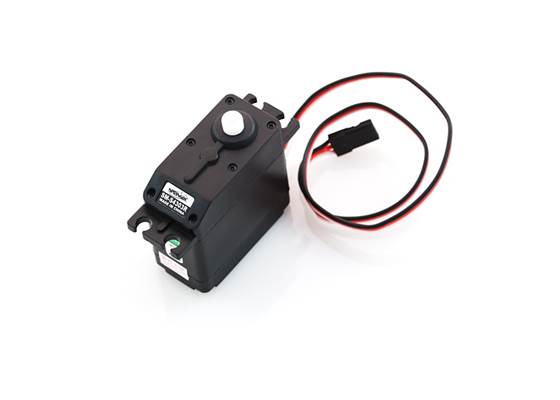

Servo - Generic High Torque Continuous Rotation (Standard Size)

Here, for all your mechatronic needs, is a simple, high quality continuous continuous rotation servo motor. This servo is able to take in 6 volts and deliver 66.7 oz-in. of maximum torque at 70 r/min. A standard 3-pin power and control cable is attached and all hardware listed below is included.

AUD$ 23.95

Special Order

Shipping from $7.90

+157 more from our supplier in 7-10 days

Our Code: SKU-000392

Supplier Link: [SparkFun MPN:9347]


Description

Here, for all your mechatronic needs, is a simple, high quality continuous continuous rotation servo motor. This servo is able to take in 6 volts and deliver 66.7 oz-in. of maximum torque at 70 r/min.

A standard 3-pin power and control cable is attached and all hardware listed below is included.


Specifications

  • Voltage: 4.8-6.0 Volts
  • Torque: 45.8/66.7 oz-in. (4.8/6.0V)
  • Speed: 60/70 r/min (4.8/6.0V)
  • Rotation: 360°
  • Dual Ball Bearing
  • 4 Plastic Gears + 1 Metal Gear
  • 25T Spline
  • Rest point adjustment

Includes:

  • 1x SM-S4303R High Torque Continuous Rotation Servo
  • 1x Mounting Screw
  • 1x Four Point Horn
  • 1x Six Point Horn
  • 2x Double Arm Horn (1x Large, 1x Medium)
  • 2x Circle Horn (1x Large, 1x Medium)
  • 4x Rubber Grommets
  • 4x 2x15mm Phillips Screw
  • 4x Brass Eyelets

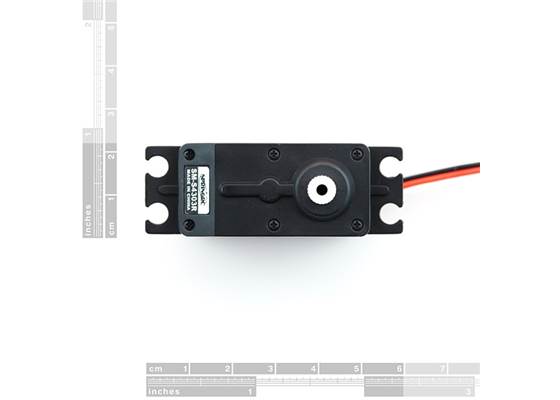

Dimensions

  • 42 x 39.5 x 22.5mm
  • Wire length: 300mm
  • Weight: 44g
