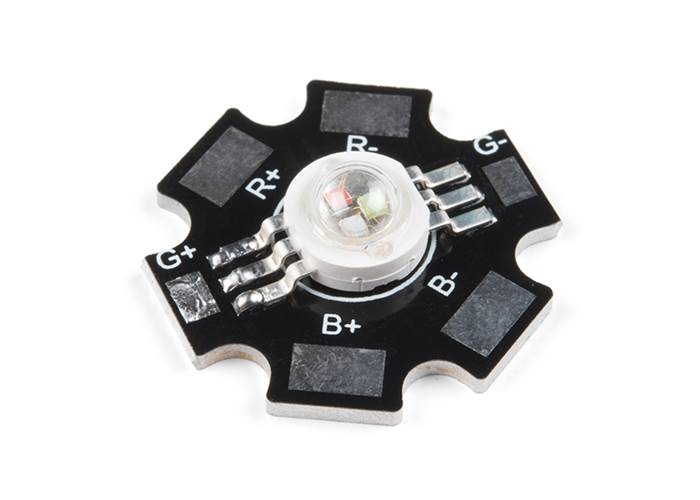

Triple Output High Power RGB LED

So much power and light from such a small package. This 3W per channel, Triple Output High Power RGB LED is sure to shed a lot of light on any project you add it to.

AUD$ 7.95

Out of Local Stock

We can ship 58 more in 7 days

Our Code: SKU-005421

Supplier Link: [SparkFun MPN:15200]


Description

So much power and light from such a small package. This 3W per channel, Triple Output High Power RGB LED is sure to shed a lot of light on any project you add it to. This LED acts as any other LED except they require much more power while delivering a light as intense of a thousand suns going super nova (this is an exaggeration but you know what we mean)!

Please be aware that with all three LEDs (9W total output), you will need additional heat sinking.

This LED sits upon an aluminium backed PCB to help with heat dissipation but with a 9W total output, additional heat sinking will be required. Additionally, each LED requires an operating voltage of 2.2-2.6V for red, 3.2-3.8V for green, and 3.2-3.8V for blue.

Note: We like to joke around about super novas and all, but seriously, don't look directly into the LED.


Specifications

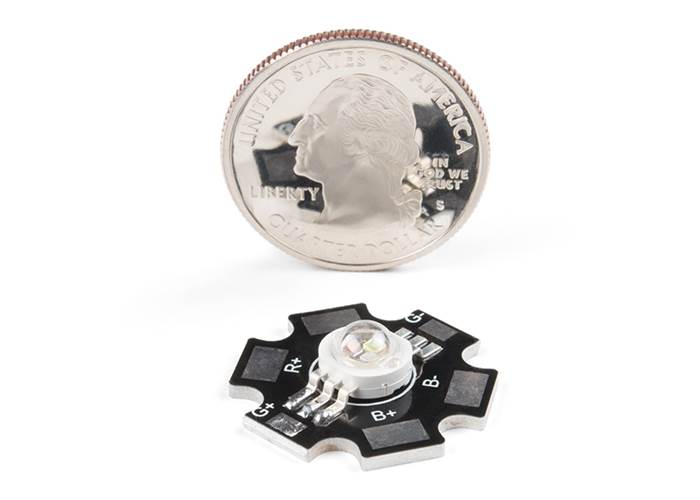

  • Size (approx.): 18mm (D) x 8mm (H)
  • Aluminium PCB for thermal dissipation
  • Operating Voltage:
    • Red: 2.2-2.6V
    • Green: 3.2-3.8V
    • Blue: 3.2-3.8V
  • Wavelength:
    • Red: 620nm
    • Green: 520nm
    • Blue: 460nm
  • Viewing Angle: 140°
