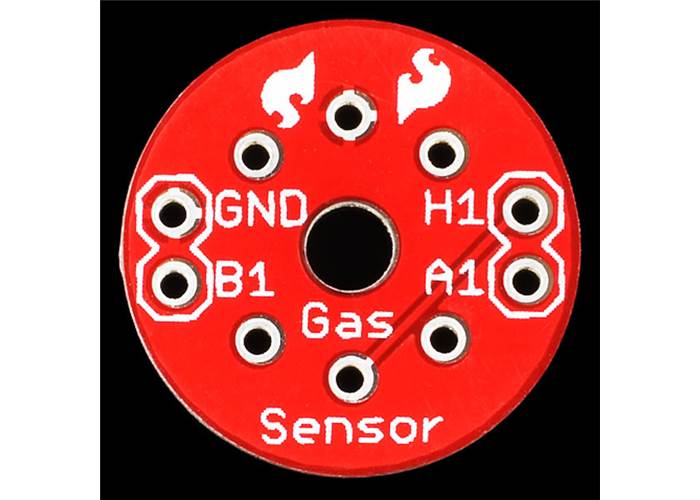

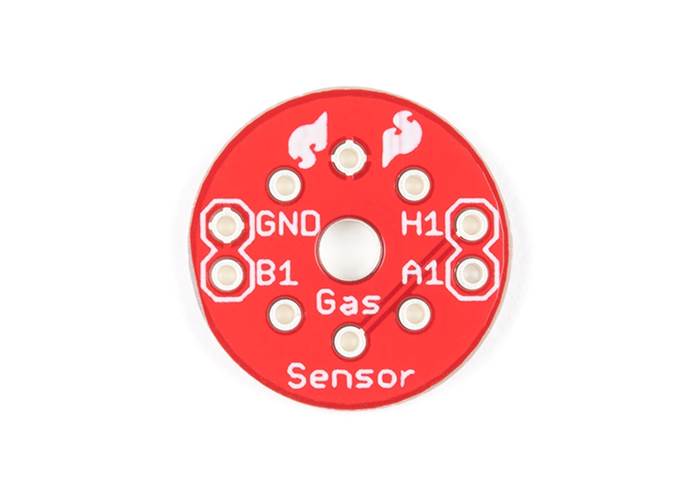

Gas Sensor Breakout Board

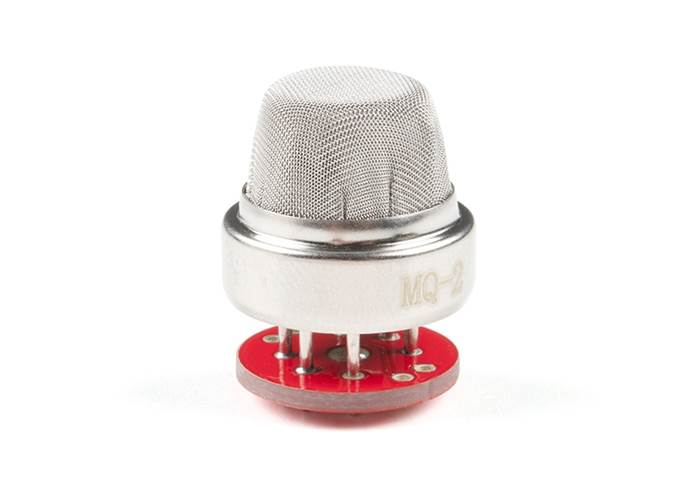

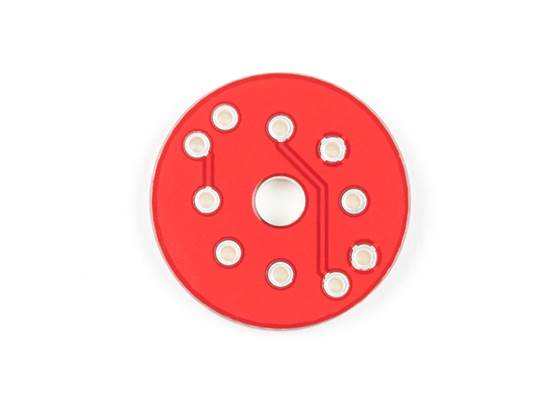

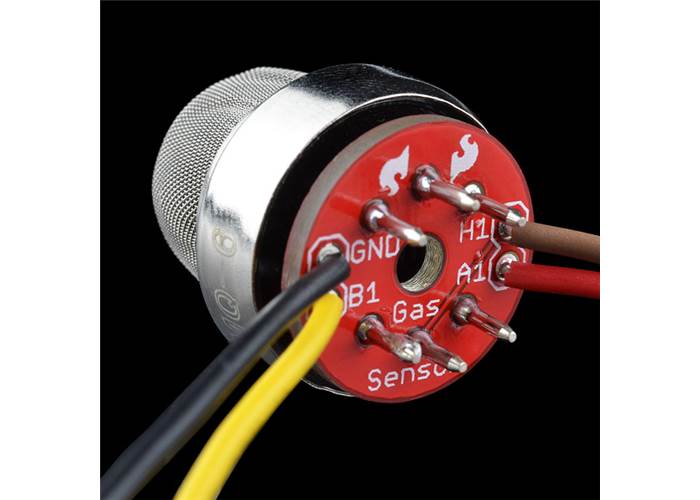

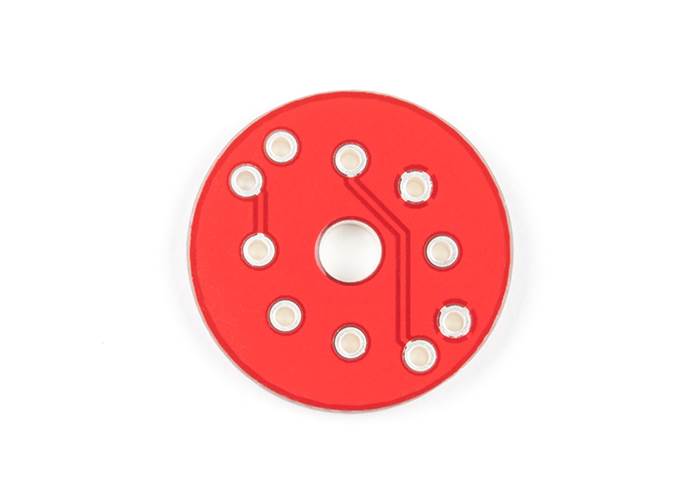

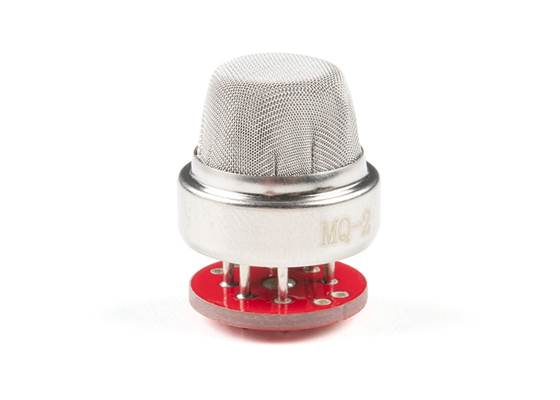

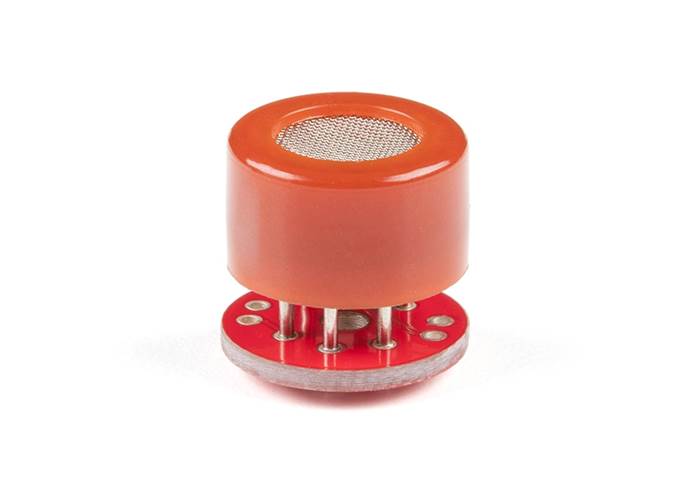

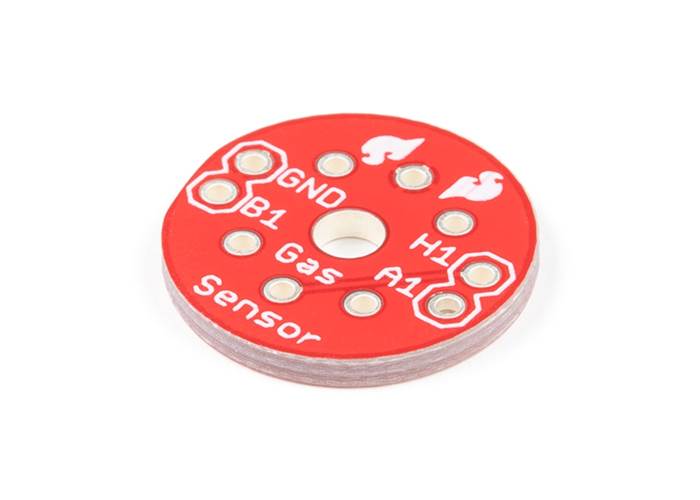

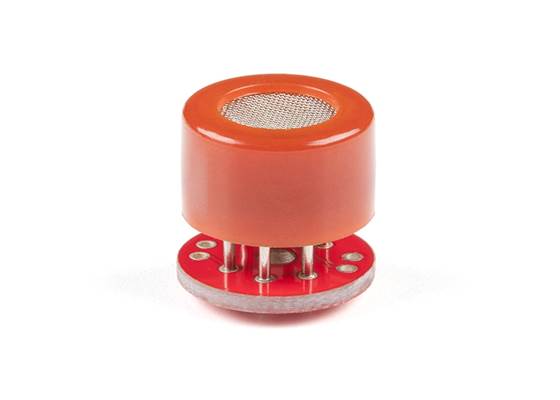

Simple breakout board for the MQ - 3, MQ - 4 and MQ - 6 petrol sensors. All you need is VCC at 5V, GND, and a resistor to an ADC, that is it. Note: This is the PCB only. Sensors listed below. Dimensions: 16.8mm diameter Documents: Schematic Eagle Files Wiring Example

AUD$ 1.10

Out of Local Stock

We can ship 50 more in 7 days

Our Code: SKU-000272

Supplier Link: [SparkFun MPN:8891]


Description

Simple breakout board for the MQ - 3, MQ - 4 and MQ - 6 petrol sensors. All you need is VCC at 5V, GND, and a resistor to an ADC, that is it.

Note: This is the PCB only. Sensors listed below.

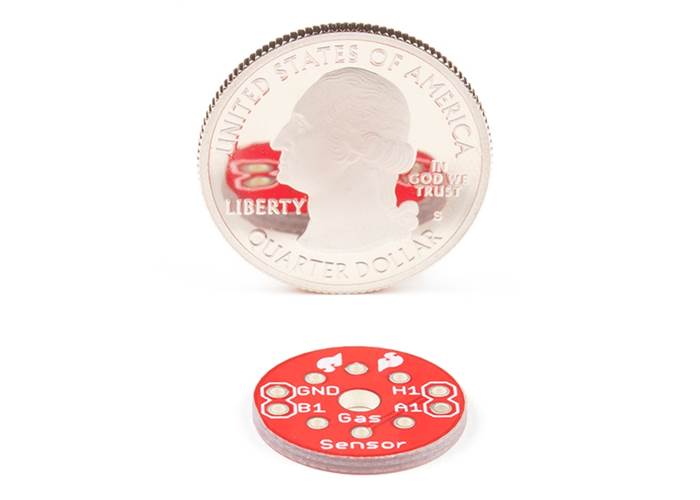

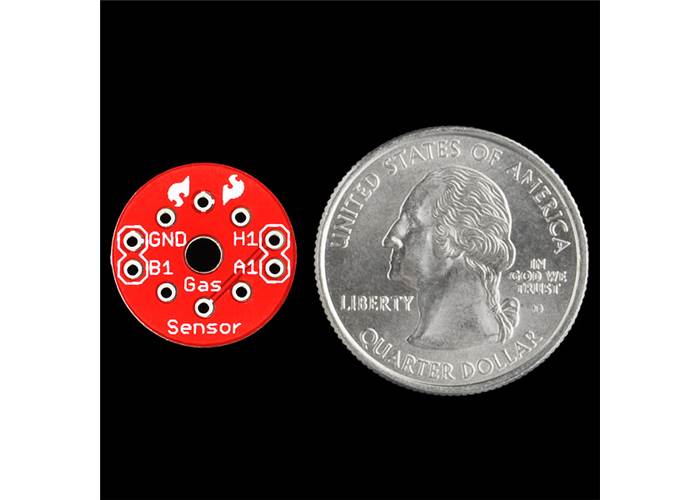

Dimensions: 16.8mm diameter
