This black polyurethane scooter/skate wheel measures 144 mm (5.7″) in diameter and 29 mm (1.2″) in width and works with standard 608 bearings as well as our Aluminium Scooter Wheel Adapters , which allow these wheels to be used with an assortment of motors.
Special Order
Shipping from $12.90
+168 more from our supplier in 7-10 days
Our Code: MEC-30212
Supplier Link: [Pololu MPN:3281]
This black polyurethane scooter/skate wheel measures 144 mm (5.7″) in diameter and 29 mm (1.2″) in width and works with standard 608 bearings as well as our Aluminum Scooter Wheel Adapters, which allow these wheels to be used with an assortment of motors.

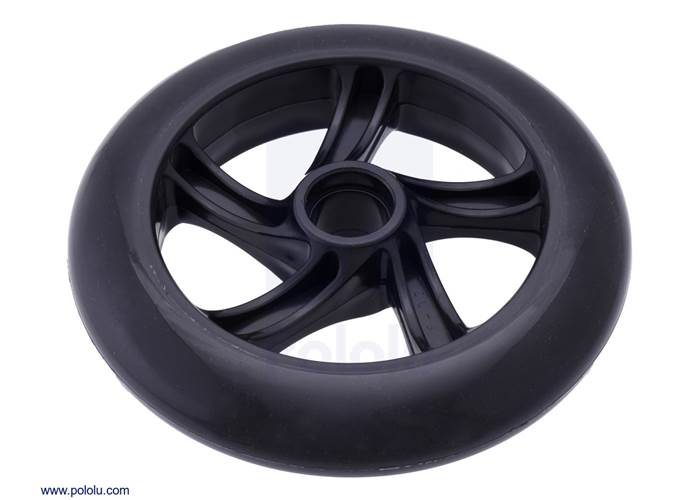

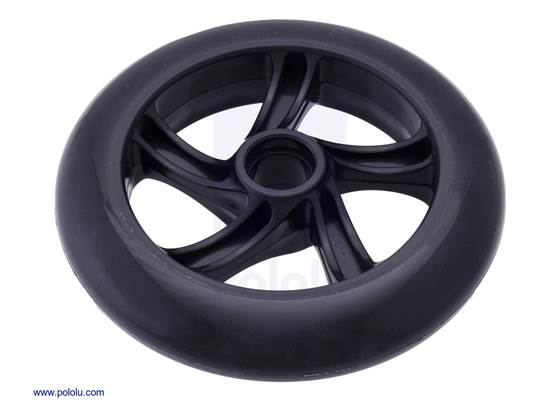

This is a black polyurethane scooter/skate wheel that measures 144 mm in diameter and 29 mm in width.

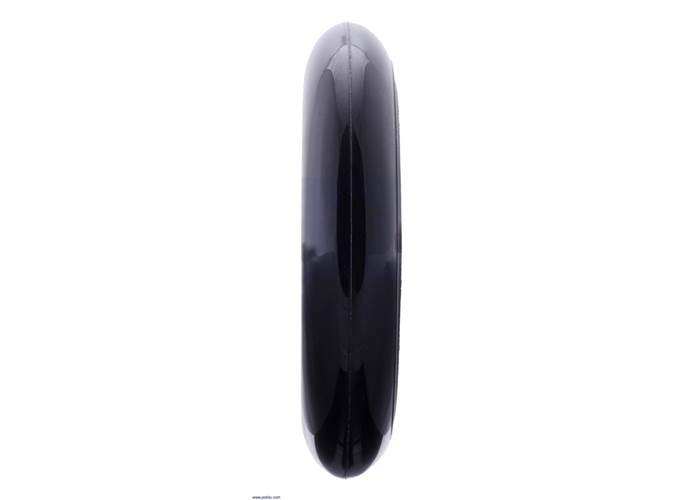

Profile of scooter/skate wheel 144×29mm – black. |
Both sides of the scooter/skate wheel 144×29mm – black. |
Note: If you are using this wheel with our Aluminium Scooter Wheel Adapters, you will need longer screws than the 14 mm ones included with the adapters. We recommend M3 screws that are at least 22 mm long, such as our 25 mm M3 screws.

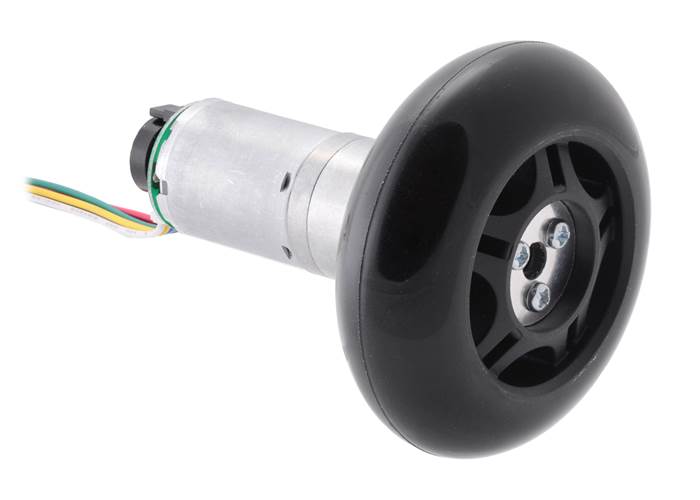

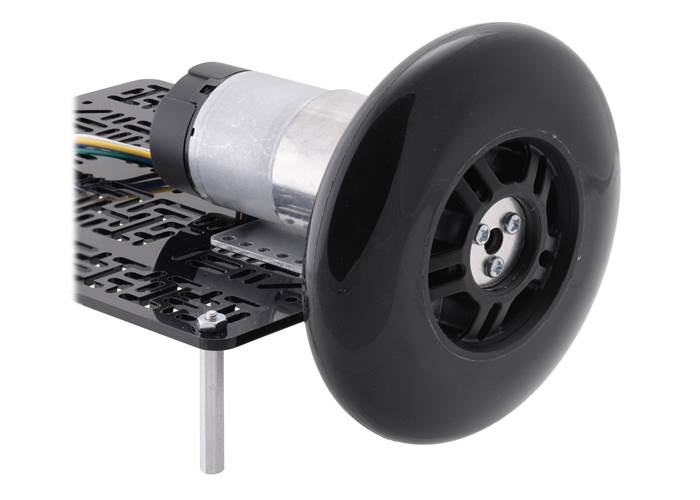

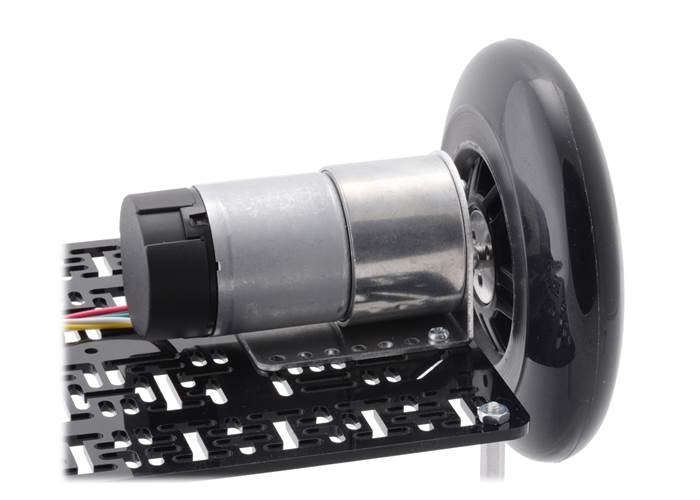

These scooter wheels (also called inline skate wheels) are designed to work with standard 608 bearings and are compatible with our Aluminium Scooter Wheel Adapters. The adapters make it easy to connect these wheels directly to an assortment of motors for use in robot drive systems. The picture below shows an example of the 70 mm scooter/skate wheel mounted to a 25D gearmotor using a 4 mm scooter wheel adaptor:
A 25D mm gearmotor connected to a 70 mm scooter/skate wheel using a 4 mm scooter wheel adapter.
The tyre portion of the wheel is made from polyurethane, which offers plenty of traction, and the rim of the wheel that contacts the ground is narrow to allow it to easily turn in place. These make great wheels for medium-sized robots. For smaller robots, consider our Pololu Wheels and Tracks.
We have scooter/skate wheels available in several sizes:

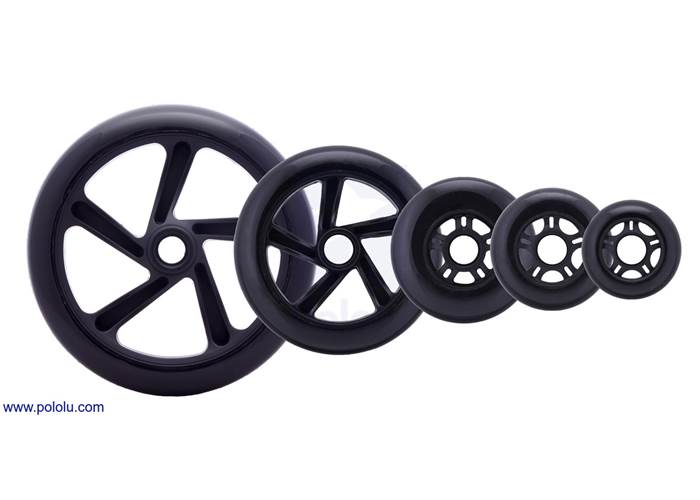

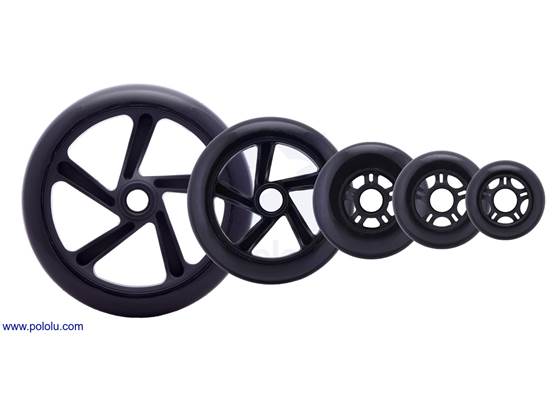

Black scooter/skate wheels with 200 mm, 144 mm, 100 mm, 84 mm, and 70 mm diameters.
| Outer diameter: | 144 mm |
|---|---|
| Weight: | 235 g |
| Colour: | black |
|---|
