Pololu Universal Aluminum Mounting Hub for 8mm Shaft, M3 Holes (2-Pack)

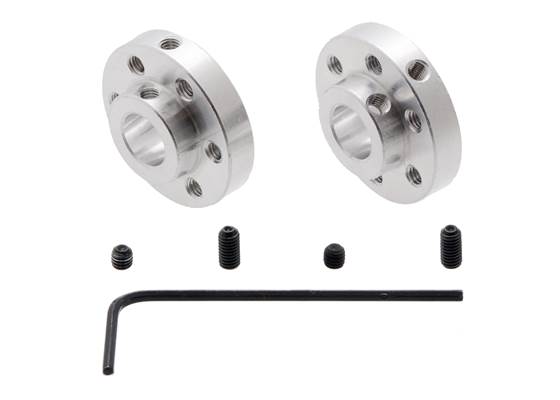

These universal aluminium mounting hubs allow you to mount custom wheels and mechanisms to 8 mm diameter motor shafts. The set includes two hubs, four M3 set screws for securing the hubs to motor shafts, and one 1.5 mm Allen wrench for use with the set screws.

AUD$ 10.95

In stock in Australia

We can ship 660 more in 7 days

Our Code: SKU-004144

Supplier Link: [Pololu MPN:2693]


Description

These universal mounting hubs are designed to work with most 8 mm diameter shafts, including round shafts and “D” shafts. Each of the two included hubs has six mounting holes for M3 screws (not included), letting you mount custom wheels or mechanisms to your motors. The four included M3 hex set screws (two for each hub) allow secure coupling of shaft to hub, and a 1.5 mm hex wrench is included for use with the set screws. A dimension diagram of the hub is available under the resources tab.

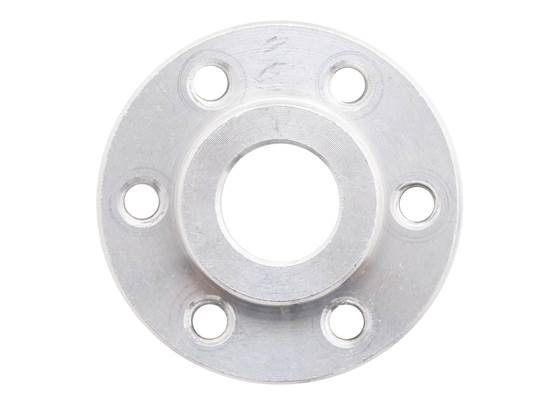

Pololu Universal Aluminum Mounting Hub for 8mm Shaft, M3 Holes.

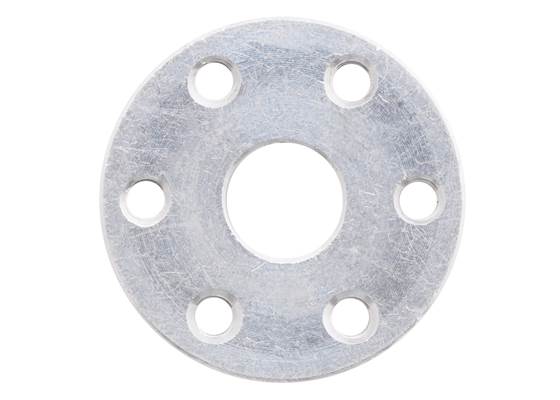

Pololu Universal Aluminum Mounting Hub for 8mm Shaft, M3 Holes. (1)

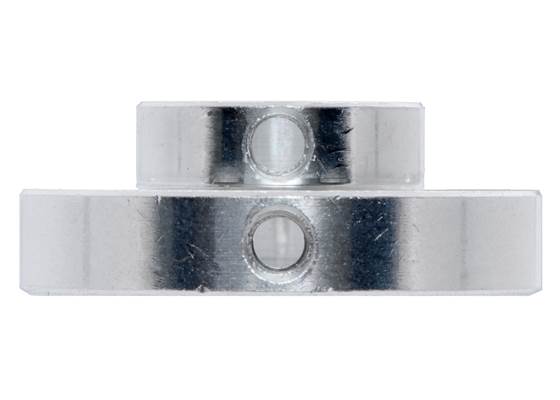

Pololu Universal Aluminum Mounting Hub for 8mm Shaft, M3 Holes. (2) (2)


Specifications

Dimensions

Size: 25.4 mm diameter × 9.2 mm thick
Weight: 6.7 g1
Shaft diameter: 8 mm
Mounting hole size: M32

Notes:

1
For a single hub only (with set screws).
2
This is also the size of the set screws.
