Pololu Universal Aluminum Mounting Hub for 1/4″ Shaft, #4-40 Holes (2-Pack)

AUD $10.95

In Stock: Ships Today

Back orders: Ship 540 units in 7 days

Our Code: SKU-002953

Supplier: [Pololu MPN:1993]

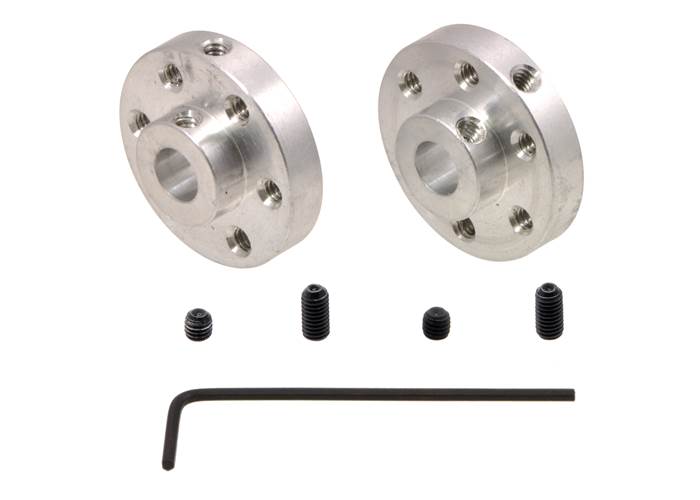

These universal aluminium mounting hubs allow you to mount custom wheels and mechanisms to 1/4 inch diameter motor shafts. The set includes two hubs, four #4-40 set screws for securing the hubs to motor shafts, and one 0.05″ Allen wrench for use with the set screws.


Description

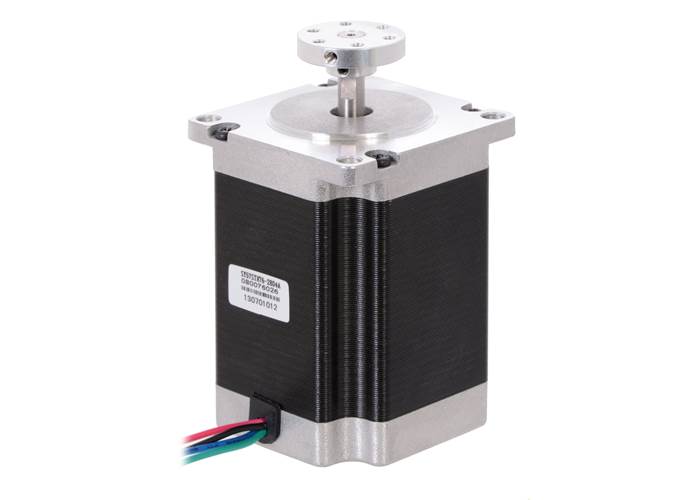

1/4″ Pololu universal aluminum mounting hub on a NEMA 23 stepper motor with 1/4″-diameter output shaft

1/4″ Pololu universal aluminum mounting hub on a NEMA 23 stepper motor with 1/4″-diameter output shaft

These universal mounting hubs are designed to work with most 0.250 inch (6.35 mm) shafts, including round shafts and “D” shafts, such as those on our NEMA 23 stepper motors. Each of the two included hubs has six mounting holes for #4-40 screws (not included), letting you mount custom wheels or mechanisms to your motors. The four included #4-40 hex set screws (two for each hub) allow secure coupling of shaft to hub, and a 0.05″ hex wrench (often the smallest size in SAE Allen wrench sets) is included for use with the set screws. A dimension diagram of the hub is available under the resources tab.

These hubs will work with our NEMA 23 stepper motors, and they also work with 80 mm and 90 mm Pololu wheels.


Specifications

Dimensions

Size: 25.4 mm diameter × 9.2 mm thick
Weight: 6.7 g1
Shaft diameter: 0.250 in
Mounting hole size: #4-402

Notes:

1
For a single hub only (without set screws).
2
This is also the size of the set screws.

Resources

File downloads

Pololu universal aluminium mounting hub for 0.250″ shaft, #4-40 holes mechanical drawing (69k pdf)
Printable mechanical drawing for the Pololu universal aluminium mounting hub for 1/4 inch shaft, #4-40 holes.
3D model of Pololu Universal Aluminium Mounting Hub for 1/4″ Shaft, #4-40 Holes (1MB step)
