Scooter/Skate Wheel 200×30mm - Black

This black polyurethane scooter/skate wheel measures 200 mm (7.9″) in diameter and 30 mm (1.2″) in width and works with standard 608 bearings as well as our Aluminium Scooter Wheel Adapters , which allow these wheels to be used with an assortment of motors.

AUD$ 35.95

Special Order

We can ship 78 more in 7-10 days

Our Code: SKU-004688

Supplier Link: [Pololu MPN:3283]


Description

Details for item #3283

This is a black polyurethane scooter/skate wheel that measures 200 mm in diameter and 30 mm in width.

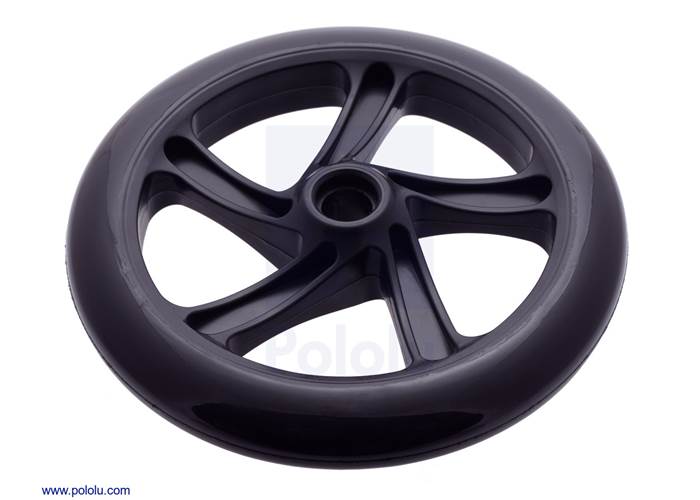

One side of the Scooter/Skate Wheel 200×30mm – Black.

Profile of Scooter/Skate Wheel 200×30mm – Black.

The other side of the Scooter/Skate Wheel 200×30mm – Black.

Note: If you are using this wheel with our Aluminium Scooter Wheel Adapters, you will need much longer screws than the 14 mm ones included with the adapters. The thickness of the central part of the hub that holds the adaptor is approximately 40 mm, and we recommend M3 screws that are at least 35 mm long.

Overview

These scooter wheels (also called inline skate wheels) are designed to work with standard 608 bearings and are compatible with our Aluminium Scooter Wheel Adapters. The adapters make it easy to connect these wheels directly to an assortment of motors for use in robot drive systems. The picture below shows an example of the 70 mm scooter/skate wheel mounted to a 25D gearmotor using a 4 mm scooter wheel adaptor:

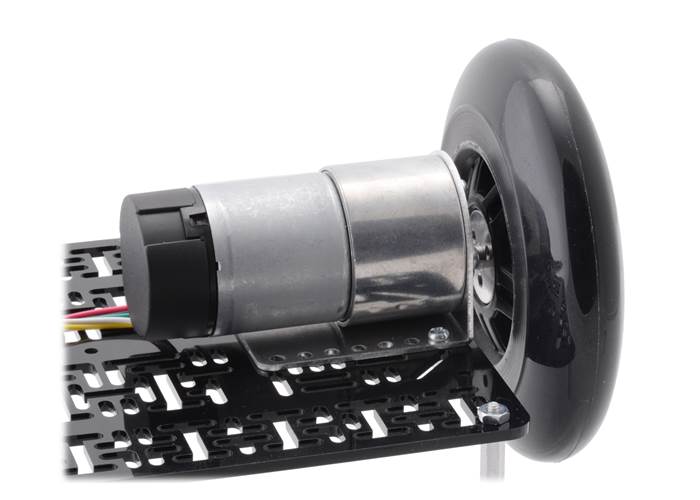

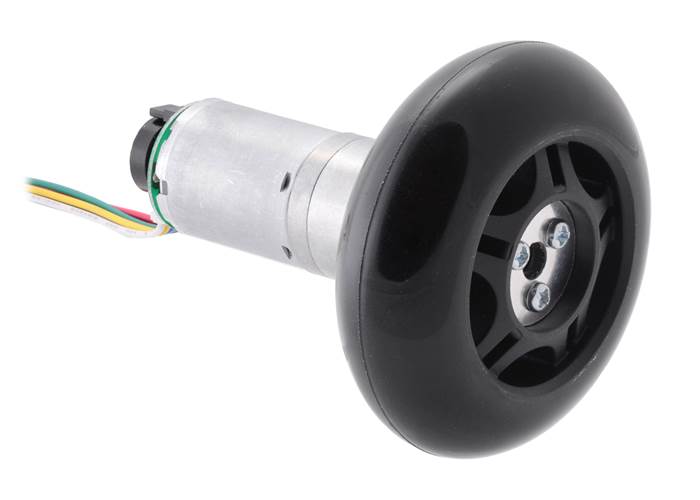

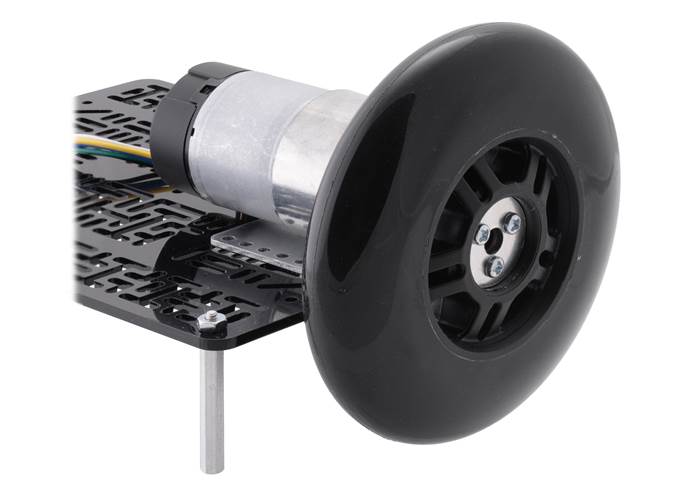

A 25D mm gearmotor connected to a 70 mm scooter/skate wheel using a 4 mm scooter wheel adapter.

The tyre portion of the wheel is made from polyurethane, which offers plenty of traction, and the rim of the wheel that contacts the ground is narrow to allow it to easily turn in place. These make great wheels for medium-sized robots. For smaller robots, consider our Pololu Wheels and Tracks.

We have scooter/skate wheels available in several sizes:

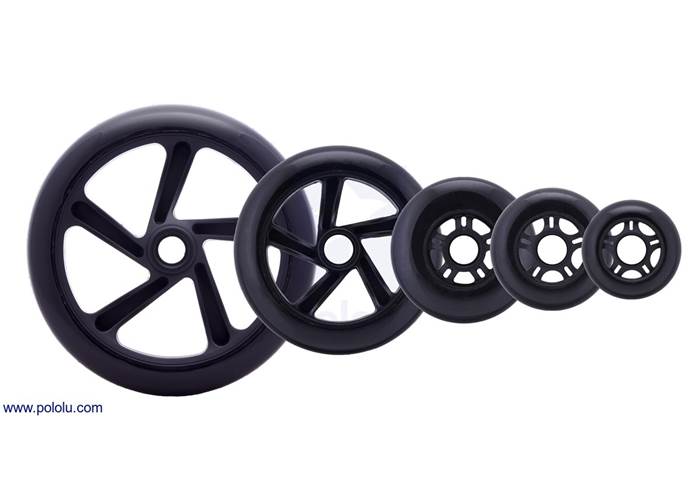

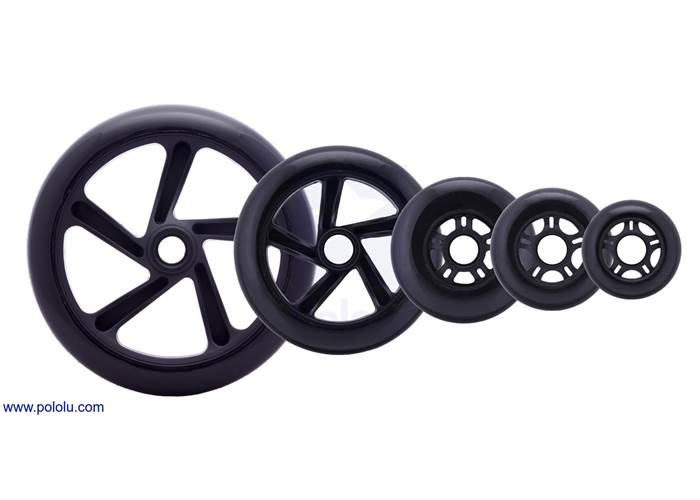

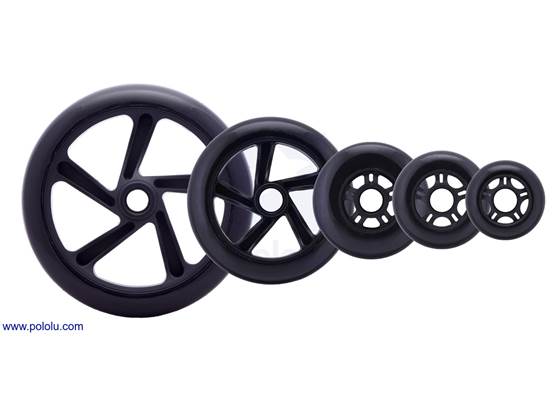

Black scooter/skate wheels with 200 mm, 144 mm, 100 mm, 84 mm, and 70 mm diameters.


Specifications

Dimensions

Outer diameter: 200 mm
Weight: 430 g

General specifications

Colour: black
