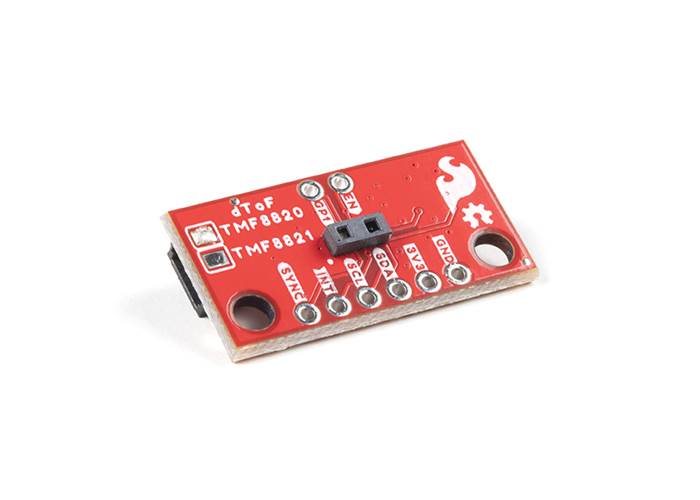

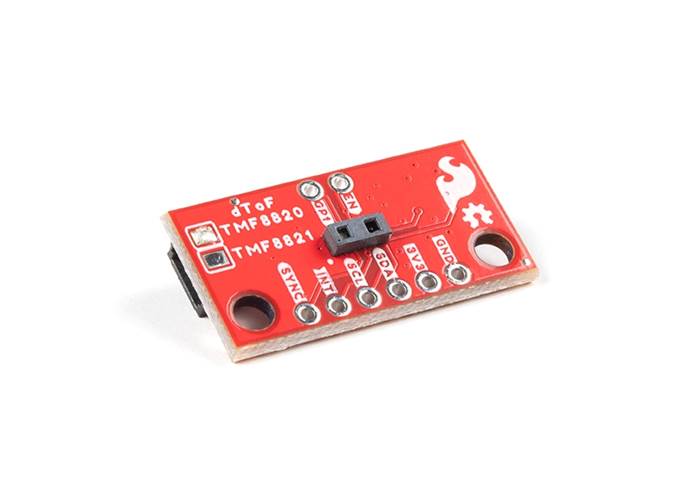

The SparkFun Qwiic Mini dToF TMF8820 Imager is a direct time-of-flight sensor that includes a single modular package with an associated VCSEL.
In stock in Australia
Shipping from $4.90
+351 more from our supplier in 7-10 days
Our Code: SKU-008816
Supplier Link: [SparkFun MPN:19218]
The SparkFun Qwiic Mini dToF TMF8820 Imager is a direct time-of-flight (dToF) sensor that includes a single modular package with an associated Vertical Cavity Surface Emitting Laser (VCSEL) from AMS. The dToF device is based on a single-photon avalanche photodiode (SPAD), a time-to-digital converter (TDC), and histogram technology to achieve a 5000mm detection range. Due to its lens on the SPAD, it supports 3x3 multizone output data and a very wide, dynamically adjustable field of view. A multi-lens-array (MLA) inside the package above the VCSEL widens the FoI (field of illumination). All processing of the raw data is performed on-chip, and the TMF8820 provides distance information together with confidence values on its I2C interface. The high-performance on-chip optical filter blocks most ambient light and enables distance measurements in both dark and sunlight environments.

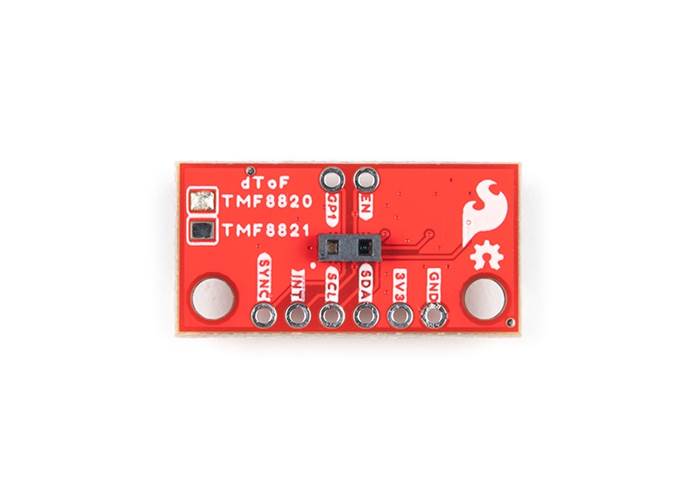

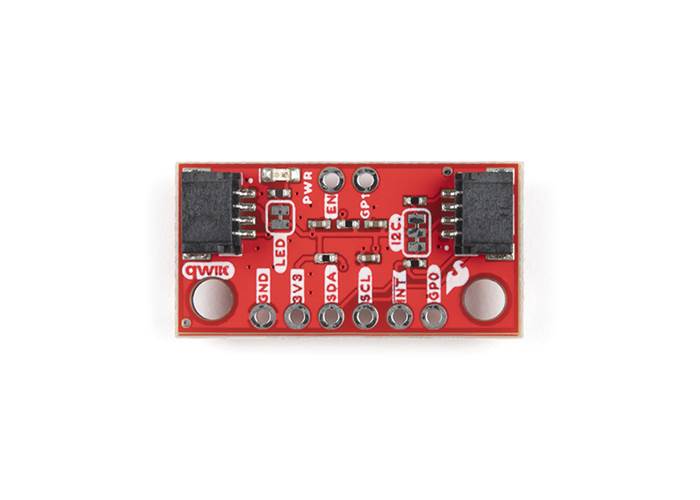

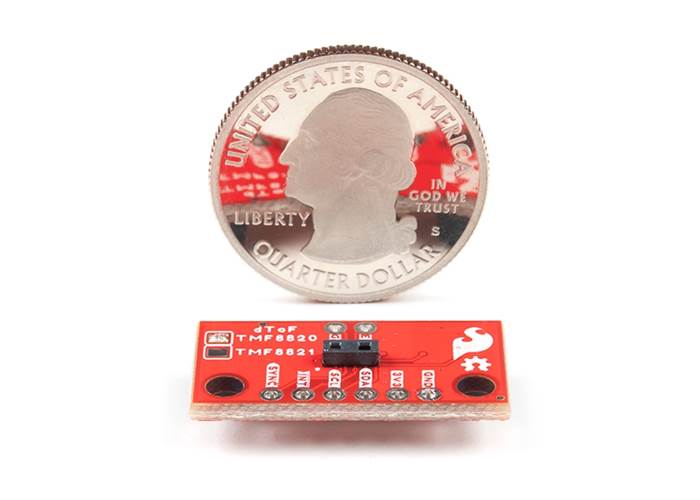

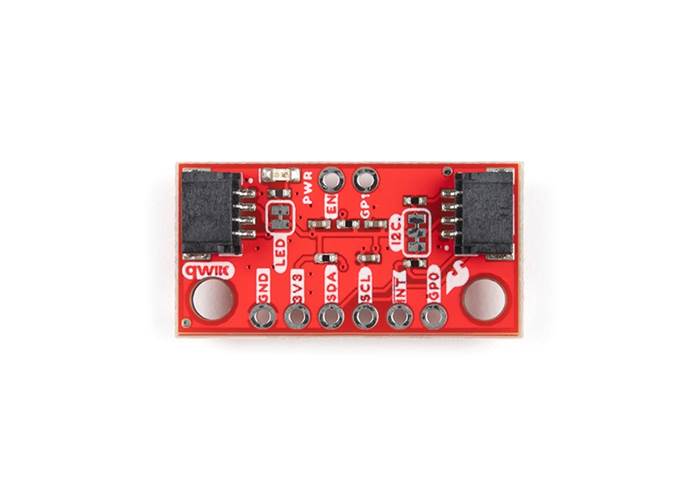

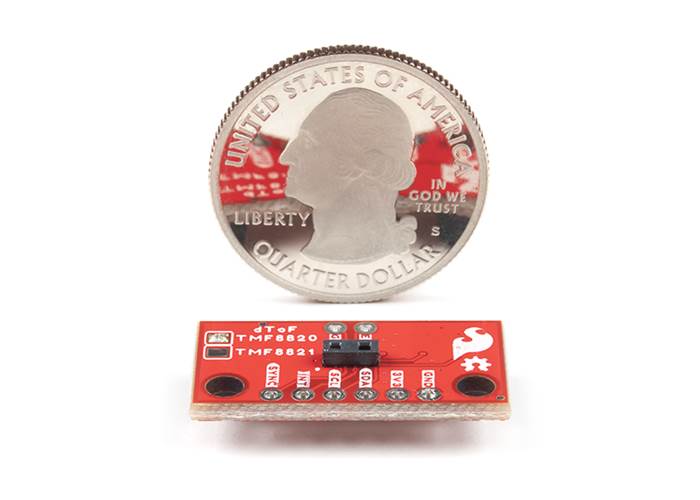

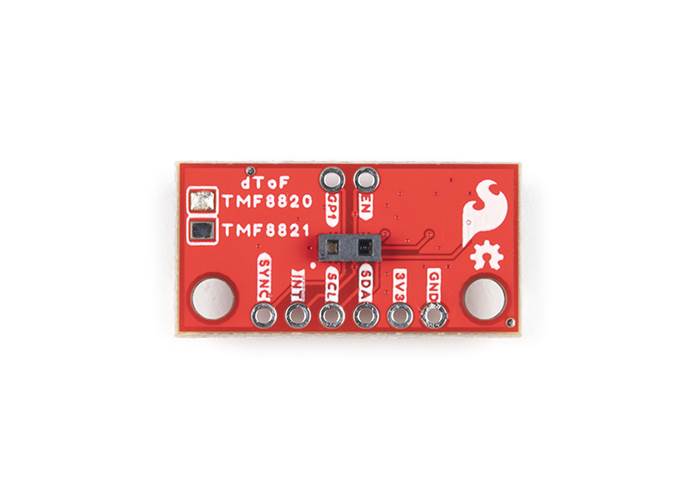

To make it even easier to get your readings, all communication is handled exclusively via I2C using our handy Qwiic system, so no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1”-spaced pins in case you prefer to use a breadboard. The TMF8820 offers two configurable GPIO pins and one enable (EN) pin, which are broken out as PTH pads. The board also includes a power LED and I2C pull-up resistors, each of which is configurable via jumpers. This Mini version has a footprint that is half the size (0.5in. x 1.0in.) of our standard Qwiic Mini dToF TMF8820 Imager board. Additionally, we moved the Qwiic connectors to the back of the board. These design changes favour mounting applications where the TMF8820 sensor faces outward from an enclosure or chassis, and keeps your Qwiic cables cleanly tucked away.
This sensor is great for projects such as distance measurement for camera autofocus - Laser Detect Autofocus - LDAF (mobile phone), presence detection (computing and communication), object detection and collision avoidance (robotics), and light curtain (industrial).
Important: We recommend a microcontroller with sufficient flash to run your program. Sorry, Uno's (or any development board using the ATmega328P) are out. We recommend choosing an Artemis Thing Plus, an ESP32 Thing Plus, or a comparable device as your development board.
