10:1 Metal Gearmotor 37Dx50L mm 24V (Helical Pinion)


Description

Overview

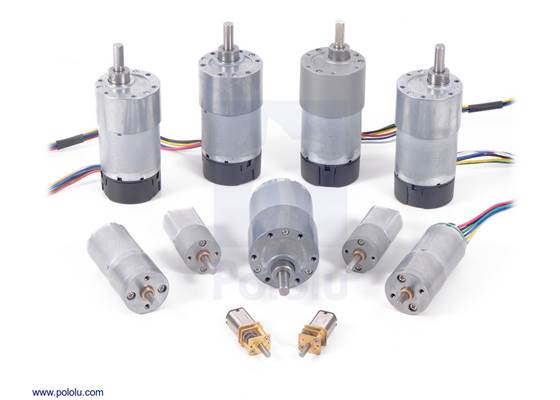

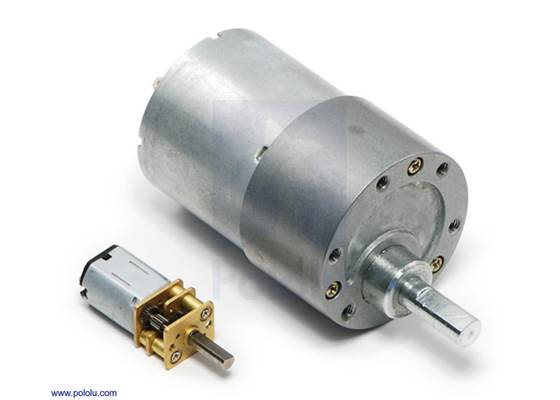

Measuring 37 mm (1.46″) in diameter, these brushed DC gearmotors are the largest and most powerful we carry. They are available in a range of gear ratios from 6.3:1 to 150:1 and with 12 V or 24 V motors, and all versions are available with integrated 64 CPR quadrature encoders on the motor shafts. The 12 V and 24 V motors offer approximately the same performance at their respective nominal voltages, with the 24 V motor drawing half the current of the 12 V motor. See the 37D metal gearmotor datasheet (2MB pdf) for more information, including detailed performance graphs for each gearmotor version. You can also use our dynamically sortable 37D gearmotor comparison table to search for the version that offers the best combination of speed, torque, and current draw for your particular application. A more basic comparison table is available below.

Rated
Voltage
Stall
Current
No-Load
Current
Gear Ratio No-Load Speed
(RPM)
Extrapolated
Stall Torque
Max Power
(W)


Without Encoder


With Encoder
(kg ⋅ cm) (oz ⋅ in)
12 V 5.5 A 0.2 A 1:1 (no gearbox) 10,000 0.5 7 item #4750
6.3:1 1600 3.0 42 12 item #4747 item #4757
10:1 1000 4.9 68 12 item #4748 item #4758
19:1 530 8.5 120 12 item #4741 item #4751
30:1 330 14 190 12 item #4742 item #4752
50:1 200 21 290 10 item #4743 item #4753
70:1 150 27 380 10* item #4744 item #4754
100:1 100 34 470 8* item #4745 item #4755
131:1 76 45 630 6* item #4746 item #4756
150:1 67 49 680 6* item #2829 item #2828
24 V 3 A 0.1 A 1:1 (no gearbox) 10,000 0.55 8 item #4690
6.3:1 1600 3.5 49 14 item #4688 item #4698
10:1 1000 5.5 76 14 item #4689 item #4699
19:1 530 9.5 130 13 item #4681 item #4691
30:1 330 15 210 13 item #4682 item #4692
50:1 200 23 320 12 item #4683 item #4693
70:1 140 31 430 10* item #4684 item #4694
100:1 100 39 540 8* item #4685 item #4695
131:1 79 47 650 6* item #4686 item #4696
150:1 68 56 780 6* item #4687 item #4697
* Output power for these units is constrained by gearbox load limits; spec provided is output power at max recommended load of 10 kg⋅cm.

Note: The listed stall torques and currents are theoretical extrapolations; units will typically stall well before these points as the motors heat up. Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. The recommended upper limit for continuously applied loads is 10 kg-cm (150 oz-in), and the recommended upper limit for instantaneous torque is 25 kg-cm (350 oz-in). Stalls can also result in rapid (potentially on the order of seconds) thermal damage to the motor windings and brushes; a general recommendation for brushed DC motor operation is 25% or less of the stall current.

In general, these kinds of motors can run at voltages above and below the nominal voltages; lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.

The gearboxes are composed mainly of spur gears, but they feature helical gears for the first stage for reduced noise and improved efficiency:

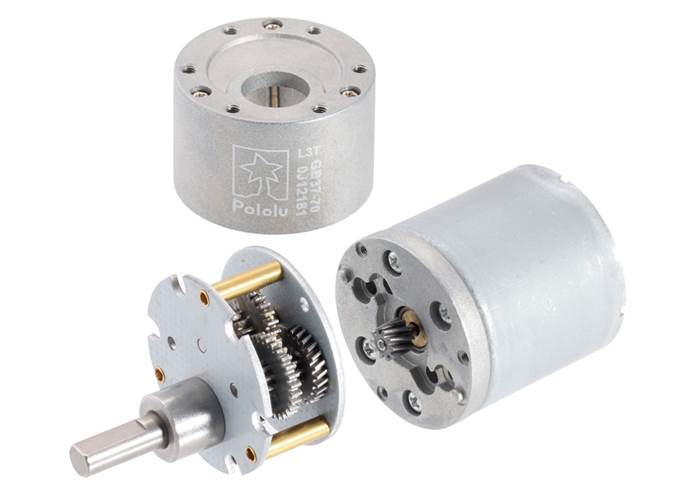

37D Gearmotor (Helical Pinion) with the gearbox removed showing the helical pinion gear and first mating gear.

37D Gearmotor (Helical Pinion) with the gearbox removed showing the helical pinion gear and first mating gear.

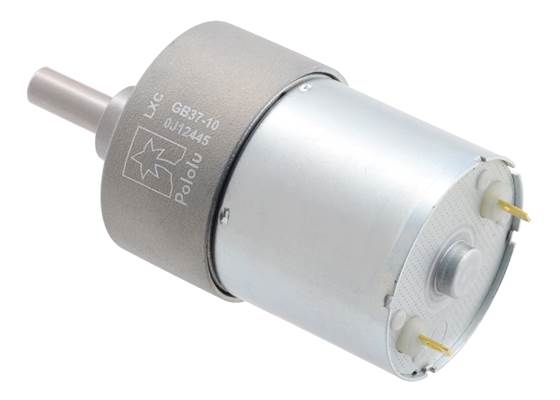

Details for item #4689

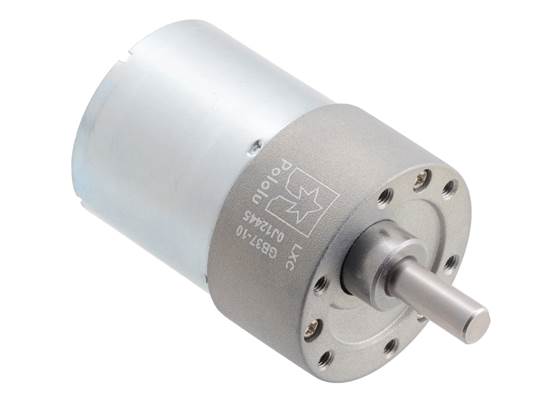

10:1 Metal Gearmotor 37Dx50L mm (Helical Pinion).

10:1 Metal Gearmotor 37Dx50L mm (Helical Pinion).

10:1 Metal Gearmotor 37Dx50L mm (Helical Pinion). (1)

10:1 Metal Gearmotor 37Dx50L mm (Helical Pinion). (1)

10:1 Metal Gearmotor 37Dx50L mm (Helical Pinion). (2) (2)

10:1 Metal Gearmotor 37Dx50L mm (Helical Pinion). (2) (2)

This gearmotor is a powerful brushed DC motor with 10:1 metal gearbox intended for operation at 24 V. The gearbox is composed mainly of spur gears, but it features helical gears for the first stage for reduced noise and improved efficiency. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available with an integrated encoder.

Key specifications:

voltage no-load performance stall extrapolation
24 V 1000 RPM, 100 mA 5.5 kg⋅cm (76 oz⋅in), 3 A

Exact gear ratio: ``(25×40) / (10×10) = bb(10:1)``

Dimensions

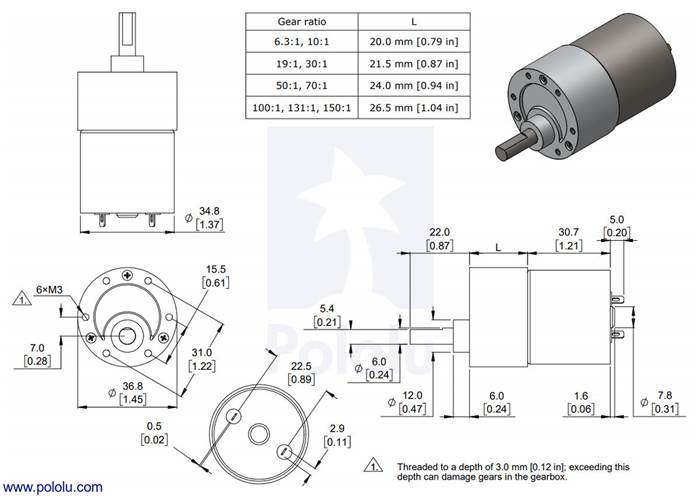

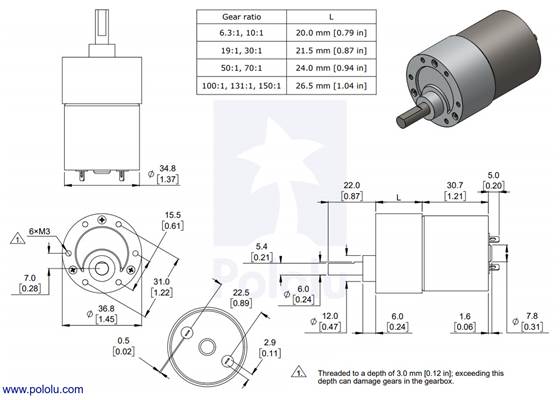

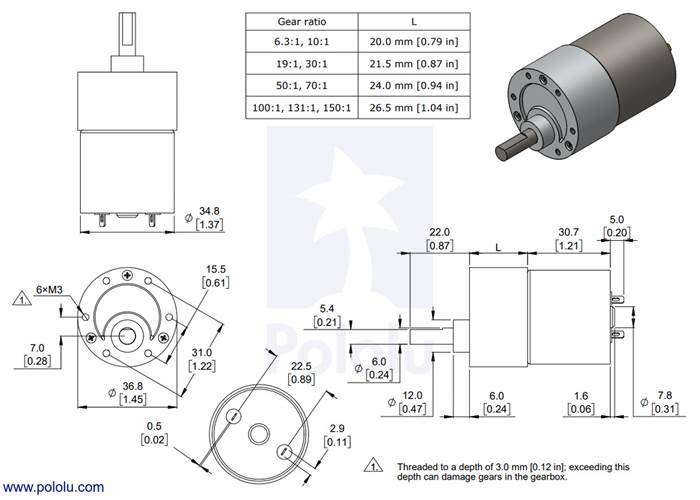

Dimensions of the 37D metal gearmotors (without encoders).  Units are mm over [inches].

Dimensions of the 37D metal gearmotors (without encoders). Units are mm over [inches].

This diagram is also available as a downloadable PDF (459k pdf).

Warning: Do not screw too far into the mounting holes as the screws can hit the gears. We recommend screwing no more than 3mm (0.12″) into the screw hole.

Gearmotor accessories

The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighbouring holes are 15.5 mm apart. We carry two brackets for these gearmotors: a stamped aluminium L-bracket (sold in pairs) and a sturdier, tombstone-style machined aluminium bracket (sold individually):

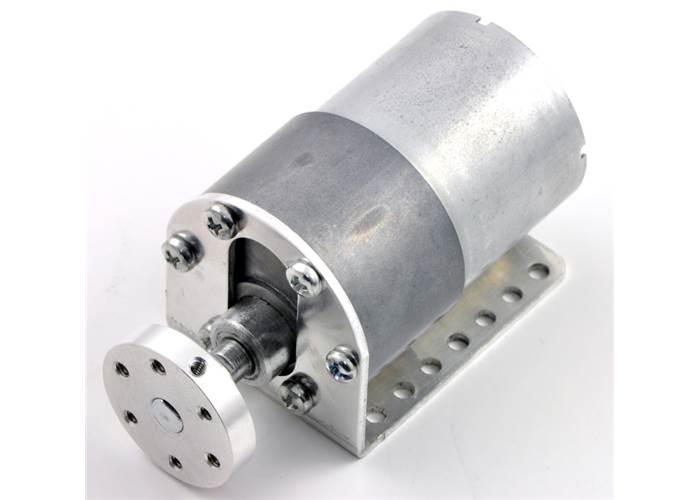

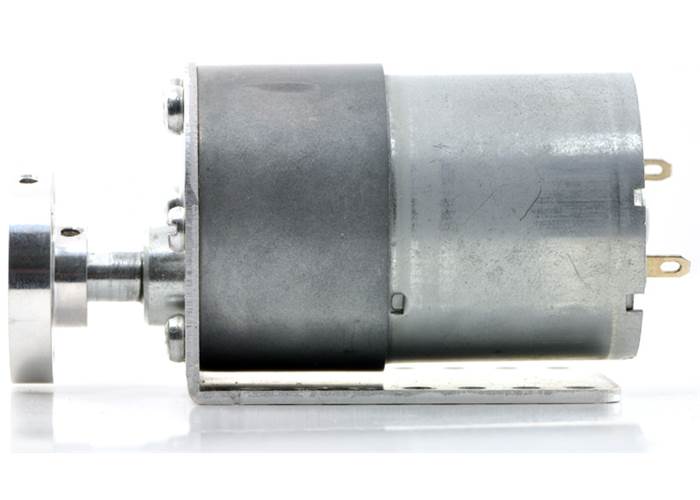

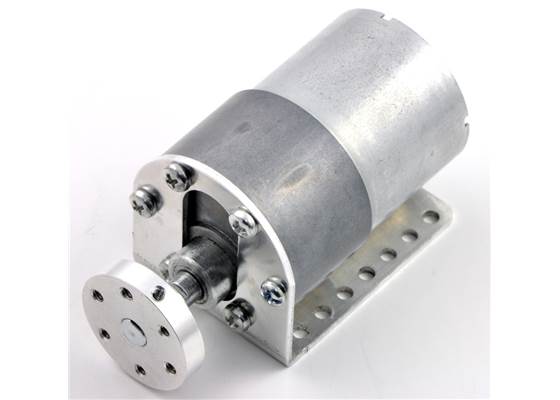

37D mm gearmotor (without encoder) with L-bracket and 6mm universal mounting hub. (2) (2)

37D mm gearmotor (without encoder) with L-bracket and 6mm universal mounting hub. (2) (2)

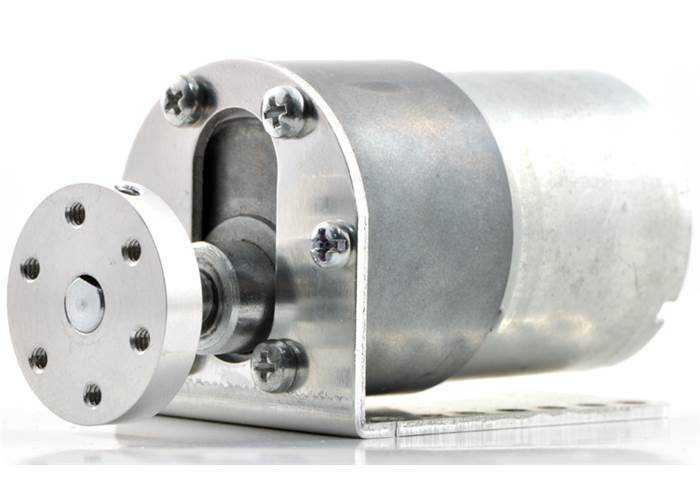

Pololu machined aluminium bracket for 37D mm metal gearmotors mounting a motor to a clear piece of acrylic.

The 6 mm diameter gearbox output shaft works with the Pololu universal aluminium mounting hub for 6mm shafts, which can be used to mount our larger Pololu wheels (80mm- and 90mm-diameter) or custom wheels and mechanisms to the gearmotor’s output shaft as shown in the left picture below. Alternatively, you could use our 6mm scooter wheel adaptor to mount many common scooter, skateboard, and inline skate wheels to the gearmotor’s output shaft as shown in the right picture below:

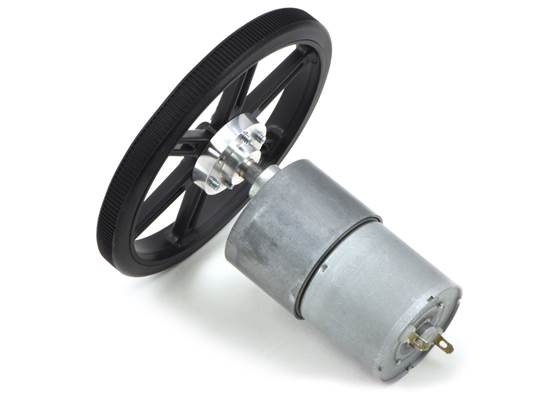

Black Pololu Wheel 90×10mm on a Pololu 37D mm Metal Gearmotor.

Black Pololu Wheel 90×10mm on a Pololu 37D mm Metal Gearmotor.

A 37D mm gearmotor connected to a scooter wheel by the 6 mm scooter wheel adaptor.

For a general-purpose hex adaptor, consider our 12mm hex wheel adaptor (also available in an extended version), which lets you use these motors with many common hobby RC wheels, including Dagu Wild Thumper Wheels:

12mm Hex Wheel Adaptor for 6mm Shaft connecting a Wild Thumper Wheel to a 37D mm Metal Gearmotor.

We have a number of motor drivers and motor controllers that work with these 37D mm metal gearmotors. We generally recommend our High-Power Motor Drivers, which are available in various power levels and versions, including some dual-channel shields for Arduino and dual-channel expansion boards for Raspberry Pi. Additionally, our VNH5019-based motor drivers, which are also available as single and dual carriers, are a good match for these gearmotors.

Pololu Dual G2 High-Power Motor Driver 24v14 Shield for Arduino.

Pololu Dual G2 High-Power Motor Driver 24v14 for Raspberry Pi (assembled version) with included hardware.

Pololu dual VNH5019 motor driver shield for Arduino.

If you are looking for higher-level control interfaces, such as USB, RC, analogue voltages, I²C, or TTL serial, consider our Simple Motor Controllers, Jrk motor controllers, or RoboClaw motor controllers; these controllers are available in various power levels several of which can handle these 37D mm metal gearmotors (we generally recommend a motor controller that can handle continuous currents above the stall current of your motor).

High-Power Simple Motor Controller G2 18v15.

Jrk G2 21v3 USB Motor Controller with Feedback.

RoboClaw 2×7A Motor Controller (V5B) in its included case.

We have an assortment of Hall effect-based current sensors to choose from for those who need to monitor motor current:

ACS711EX current sensor carrier -15.5A to +15.5A.

ACS714 current sensor carrier -5A to +5A.

Selecting the Right Gearmotor

We offer a wide selection of metal gearmotors that offer different combinations of speed and torque. Our metal gearmotor comparison table can help you find the motor that best meets your project’s requirements.


Specifications

Dimensions

Size: 37D × 50L mm1
Weight: 175 g
Shaft diameter: 6 mm2

General specifications

Gear ratio: 10:1
No-load speed @ 24V: 1000 rpm
No-load current @ 24V: 0.1 A
Stall current @ 24V: 3 A3
Stall torque @ 24V: 5.5 kg·cm3
Max output power @ 24V: 14 W
No-load speed @ 12V: 520 rpm4
No-load current @ 12V: 0.08 A4
Stall current @ 12V: 1.7 A4
Stall torque @ 12V: 3.1 kg·cm4
Motor type: 24V

Performance at maximum efficiency

Max efficiency @ 24V: 56 %
Speed at max efficiency: 850 rpm
Torque at max efficiency: 0.75 kg·cm
Current at max efficiency: 0.49 A
Output power at max efficiency: 6.6 W

General specifications

Encoders?: N

Notes:

1
Length measurement is from gearbox face plate to back of motor (it does not include the output shaft or motor terminals). See dimension diagram for details.
2
D shaft.
3
Stalling is likely to damage the gearmotor. Stall parameters come from a theoretical extrapolation of performance at loads far from stall. As the motor heats up, as happens as it approaches an actual stall, the stall torque and current decrease.
4
This motor will run at 12 V but is intended for operation at 24 V.

Resources

File downloads

Datasheet for Pololu 37D Metal Gearmotors (2MB pdf)
Dimension diagrams of the Pololu 37D mm Metal Gearmotors (459k pdf)
3D models of 37D mm gearmotors (7MB zip)
This file contains 3D models (in the step file format) of the 37D mm gearmotors with and without encoders.
