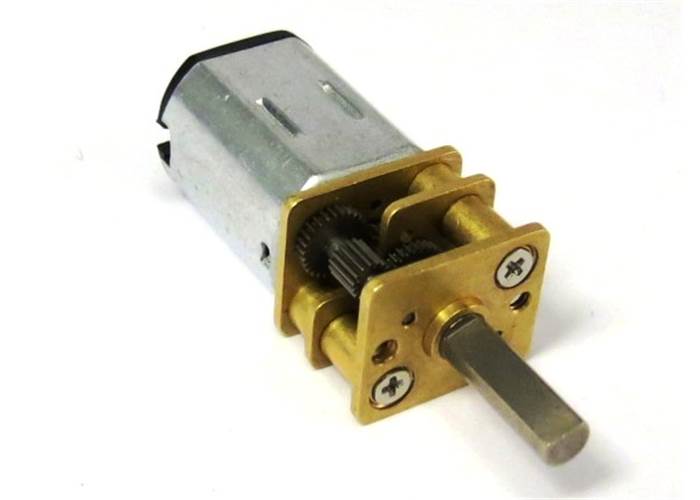

5:1 Micro Metal Gearmotor (Low Current)

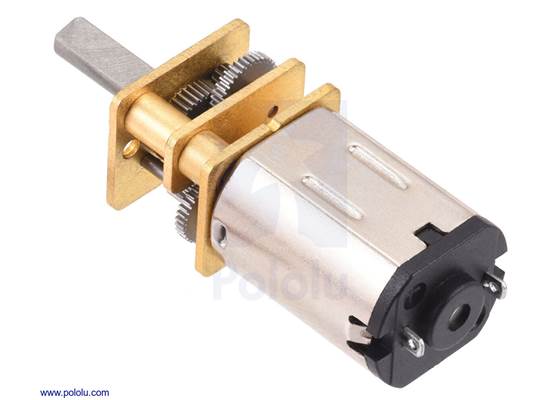

This high quality, low current miniature 6V gear motor has a 5:1 gear ratio and is similar to Sanyo's popular 12mm gearmotors. The 3mm D-shaped output shaft is 9.3mm long to enable press fitting to many different wheels. Key specs at 6 V: 2500 RPM and 50 mA free-run, 1 oz-in (0.1 kg-cm) and 0.36 A stall.

AUD$ 22.95

In stock in Australia

Back orders: Ship 69 units in 7 days

Our Code: MEC-30124

Supplier: [Pololu MPN:1100]


Overview

Power

Designed for operation at 6V the motor is suitable over a range of about 3-9V beyond which the performance or motor life may degrade.

Key specs at 6 V: 2500 RPM and 50 mA free-run, 1 oz-in (0.1 kg-cm) and 0.36 A stall.

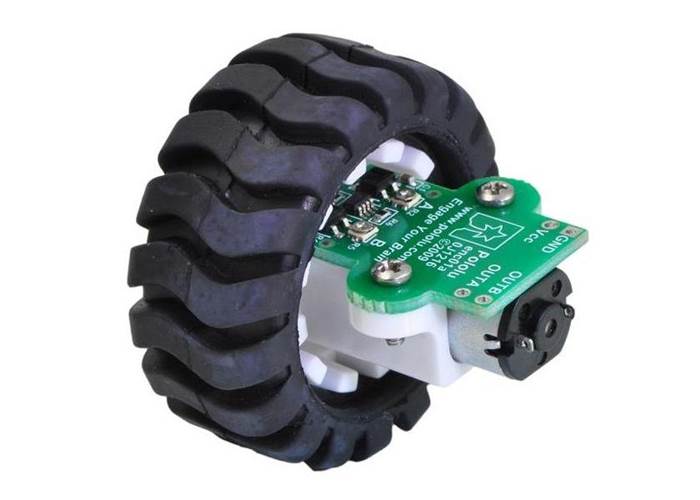

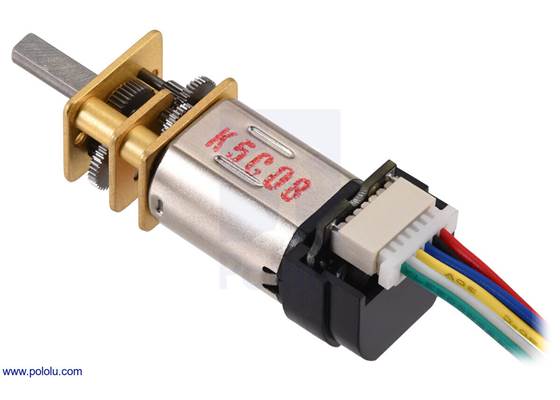

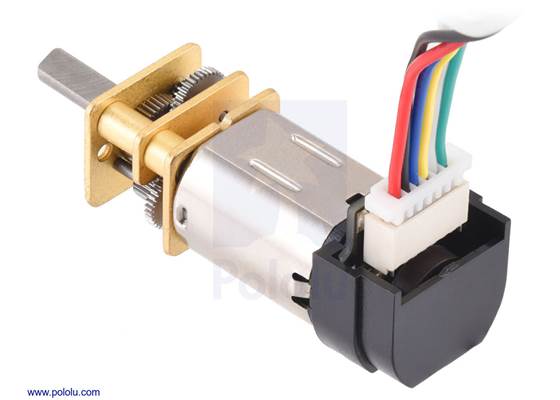

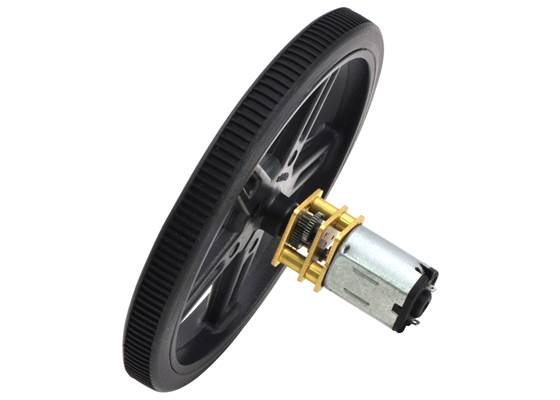

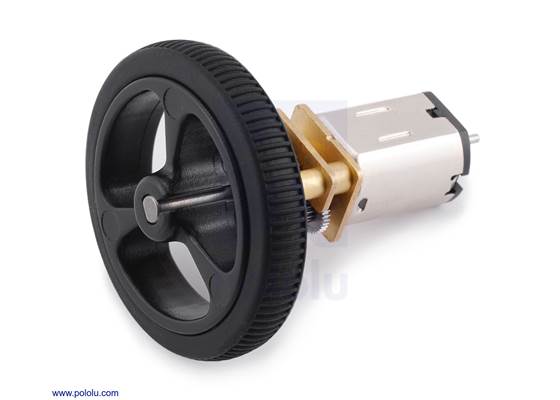

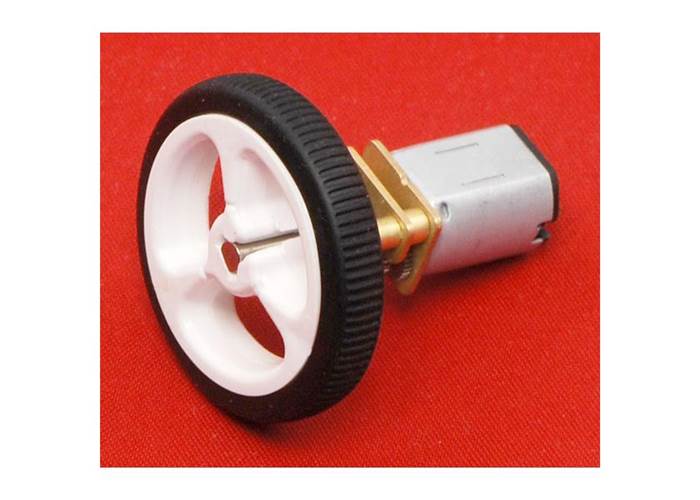

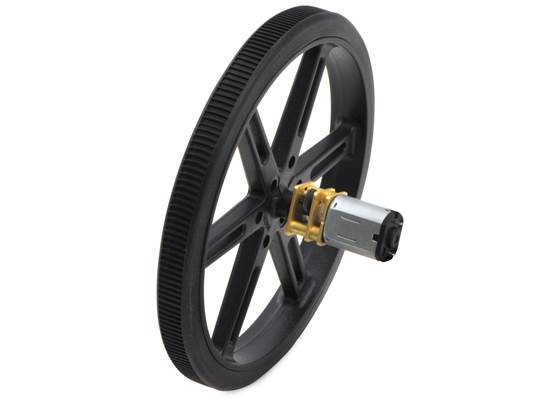

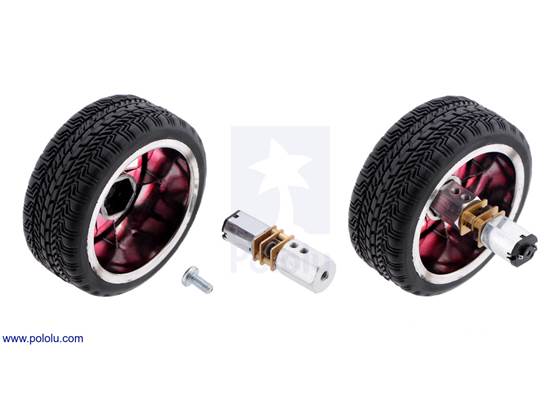

Mounting Wheels & Encoders - probably not

This motor has a no load speed of 1000RPM so is likely going to be too quick for wheels and encoders. Best used for propellers or other high speed applications.

Mounting the Motor

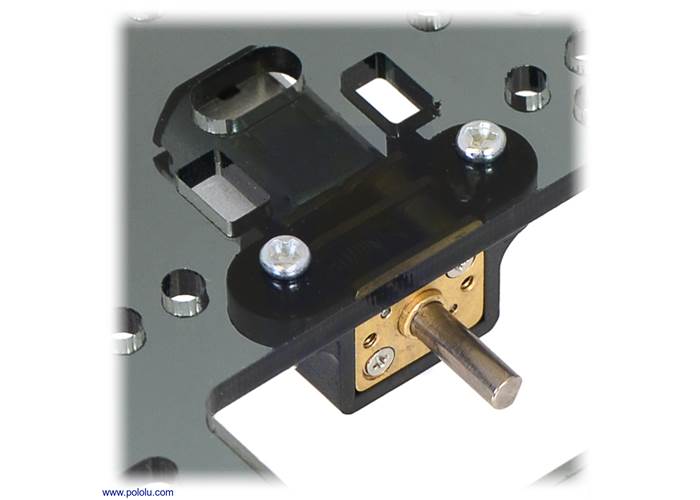

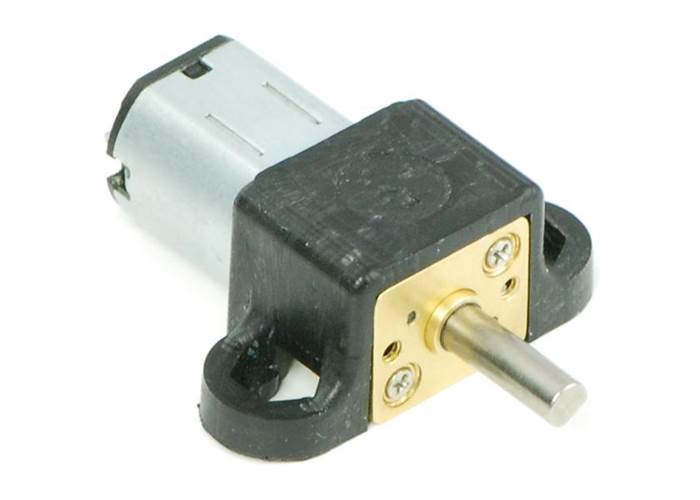

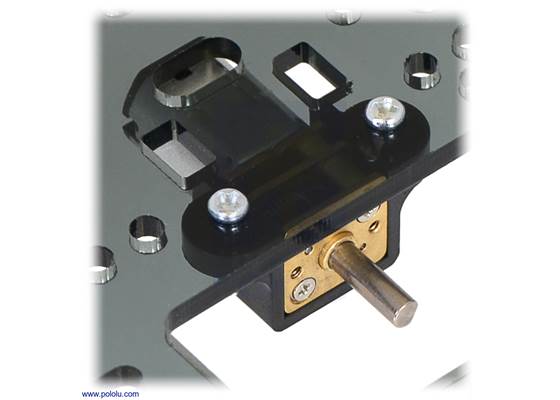

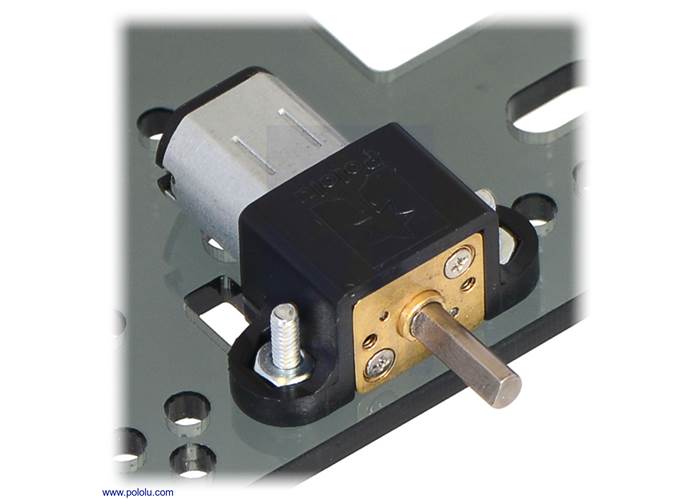

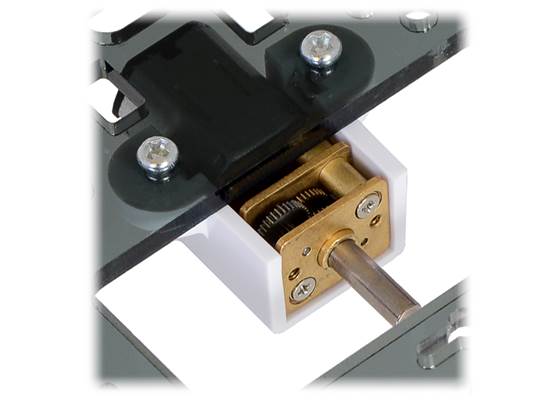

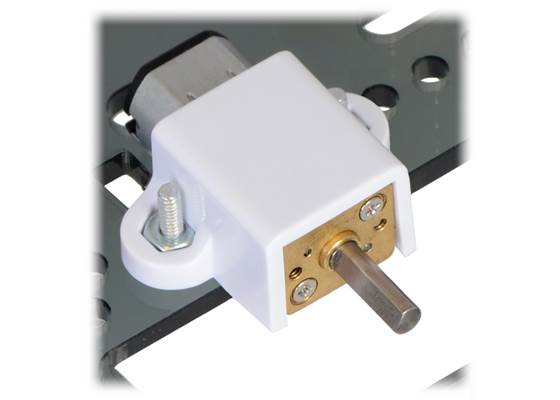

Two M1.6 screw holes are available on the face plate of the motor to mount the motor on the inside of a chassis or alternatively the micro metal gearmotor mounting bracket or extended micro metal gearmotor mounting bracket can be used.


Specifications

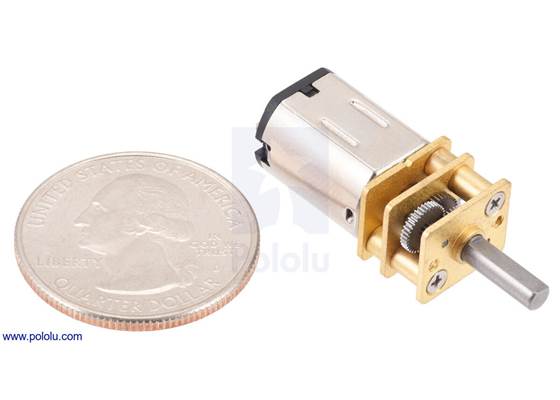

Size 24 x 10 x 12 mm
Weight 0.34oz / 9.6g
Gear Ratio 5:1
Shaft 3mm Ø, 9.6mm length, D shaft
Free-run speed @ 6V 2500RPM
Free-run current @6V 50mA
Stall current @6V 360mA
Stall torque @6V 1oz-in / 0.1kg-cm

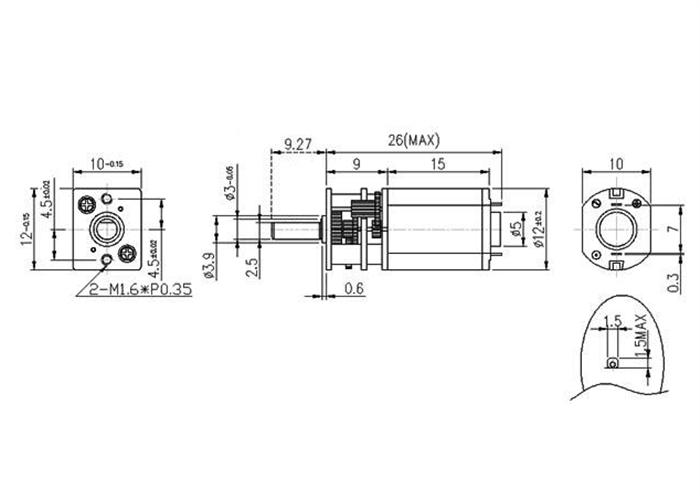

Dimensions

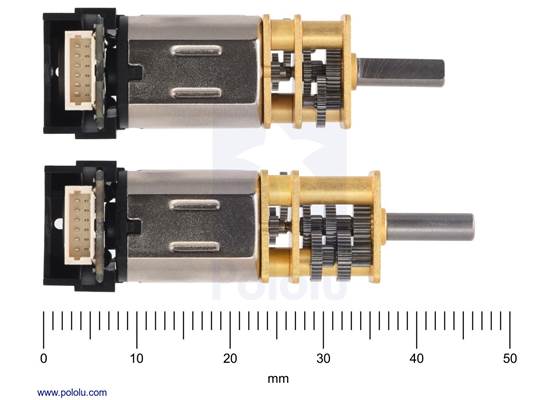

All the micro metal gear motors have the same dimensions but vary in gear ratios and motor power.
