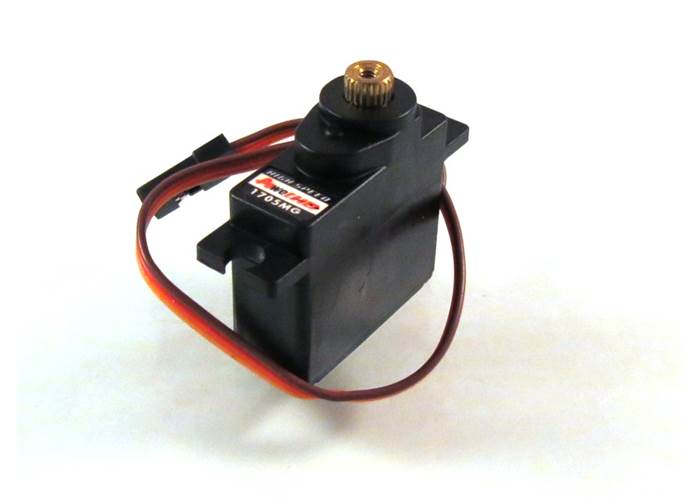

Power HD Analog Mini High-Speed Servo HD-1705MG

The HD-1705MG high-speed mini servo from Power HD is one of the fastest servos we sell. This mini servo has the same output spline as standard servos, making it compatible with standard-sized servo horns. The gear train is made primarily of metal gears and the output shaft is supported by a ball bearing. Key specs at 6 V: 0.05 sec/60°, 28 oz-in (2 kg-cm), 17.5 g.

AUD$ 19.95

In stock in Australia

We can ship more in 7 days

Our Code: MEC-30111


Overview

The HD-1705MG high-speed mini servo from Power HD is one of the fastest servos we sell. This mini servo has the same output spline as standard servos, making it compatible with standard-sized servo horns. The gear train is made primarily of metal gears and the output shaft is supported by a ball bearing. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible. Servo horns and associated hardware are included.

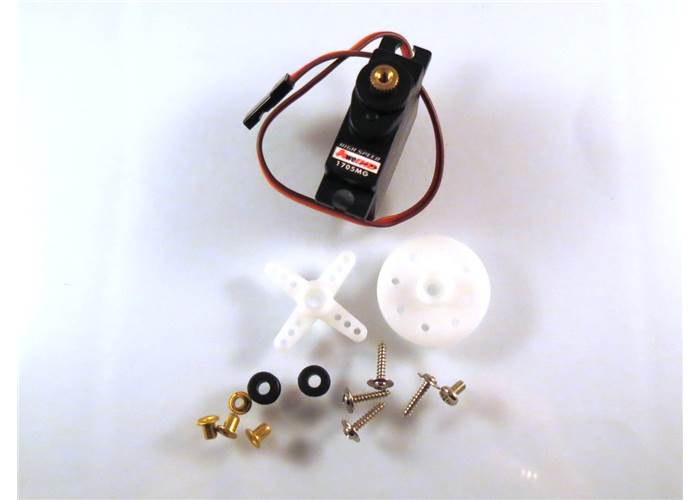

Power HD High-Speed Mini Servo HD-1705MG - included hardware




Specifications

Dimensions

Size: 29.5 x 11.6 x 30.2 mm
Weight: 17.5 g

General specifications

Digital?: N
Speed @ 6V: 0.05 sec/60°
Stall torque @ 6V: 2.0 kg·cm
Speed @ 4.8V: 0.07 sec/60°
Stall torque @ 4.8V: 1.8 kg·cm
Lead length: 16 cm
Hardware included?: Y
Maximum storage temperature: 55 °C
