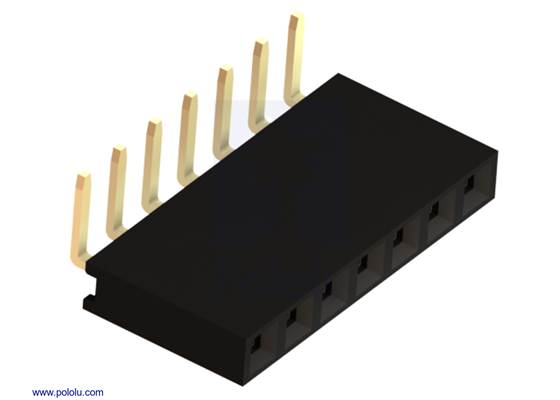

This connector is a single-row, 7-pin, right-angle female header strip designed to match 0.1" male headers. The order quantity must be a multiple of two.
These 0.1" female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. The standard spacing is the same as on most solderless breadboards and matches 0.1" male header strips. Our female headers are available in a variety of commonly used pin counts:
We also carry straight versions of these headers:

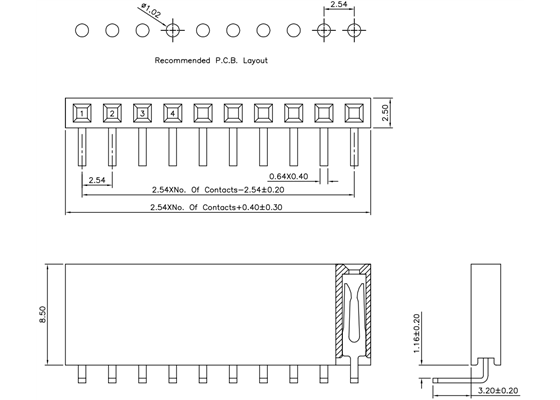

Dimensions for 0.1″ right-angle female headers in millimeters.
