Mini Tamiya Connector Pack, Male

This connector, a smaller version of the male Tamiya connector , is commonly used with battery packs for RC applications. The connector is keyed so that power cannot be reversed, and a latch secures the connection so that it will not become disconnected.

AUD$ 2.60

Out of Local Stock

We can ship 296 more in 7 days

Our Code: SKU-002907

Supplier Link: [Pololu MPN:1937]


Description

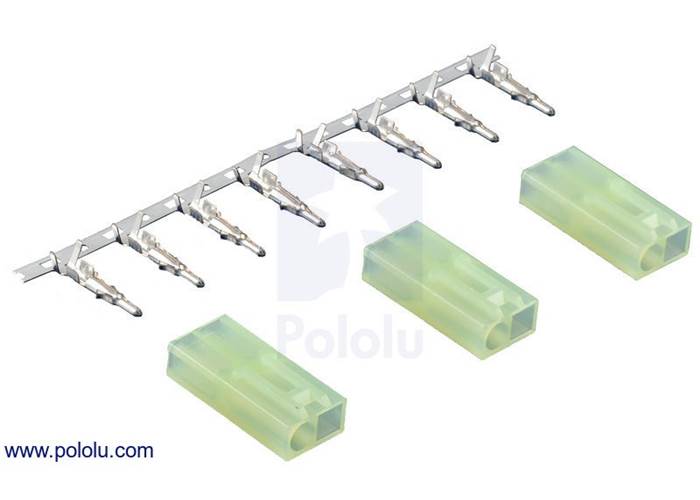

This connector is keyed so that power cannot be reversed, and a latch secures the connection so that it will not become disconnected. This pack contains enough housings and crimp pins (including two spare pins) for three male connectors (we also offer a pack for the female version). The crimp pins are designed for 16- to 20-AWG wires, and we sell a crimping tool that works will with them. As an alternative, we sell a pre-crimped version of this connector with 10 cm leads.

Note: these connectors are sometimes referred to as “female” in the RC hobby industry, so please look at the connector picture and diagram below carefully to make sure it is what you want.

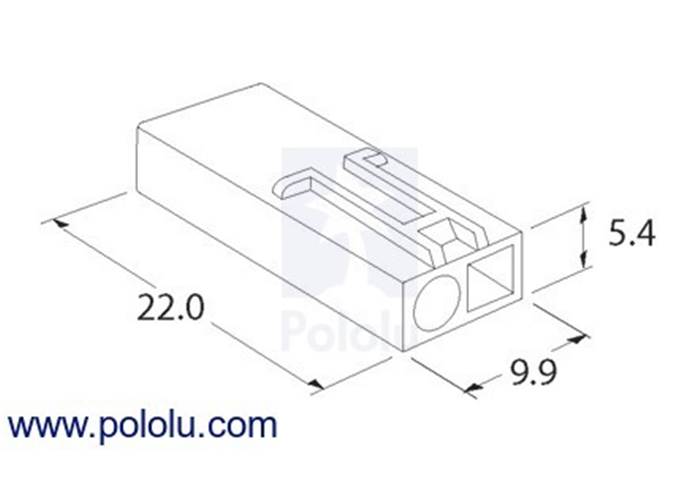

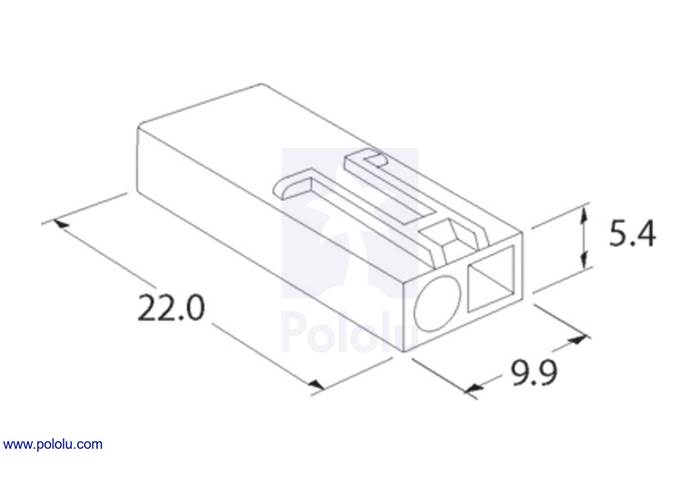

Male mini Tamiya plug dimensions (in mm)

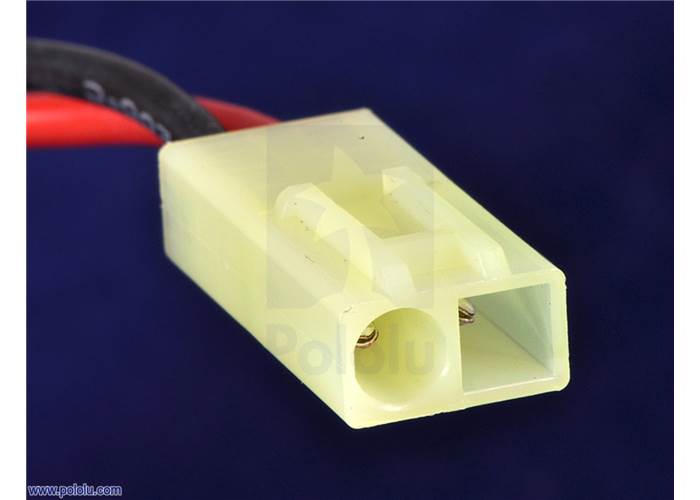

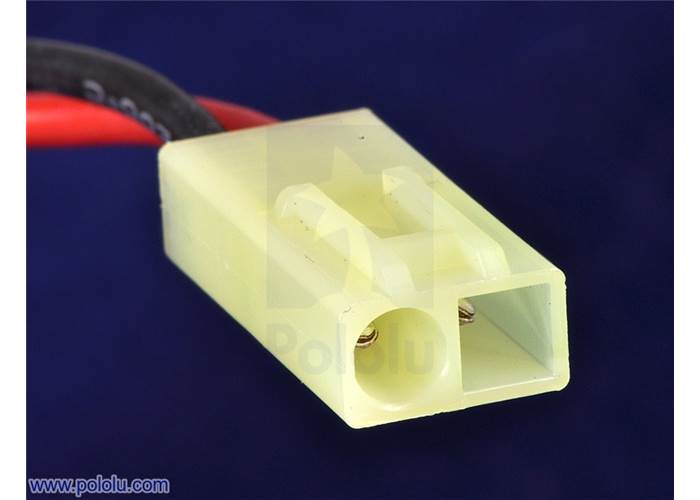

Male mini Tamiya plug connector


Specifications

General specifications

Gender: male
Wire gauge: 16-20 AWG
