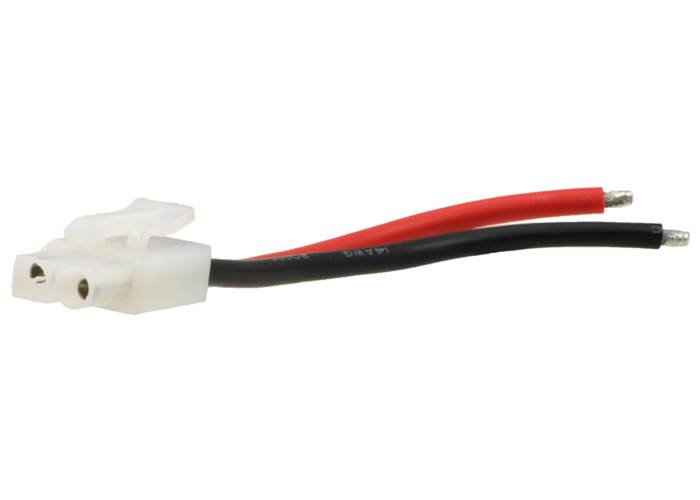

Tamiya Plug with 10cm Leads, Female

This style of high-current connector is commonly used with the 7.2V sub-C battery packs that power many RC cars. The connector is keyed so that power cannot be reversed, and a latch secures the connection so that it will not become disconnected.

AUD$ 3.55

In stock in Australia

We can ship 1147 more in 7-10 days

Our Code: SKU-003079

Supplier Link: [Pololu MPN:2172]


Description

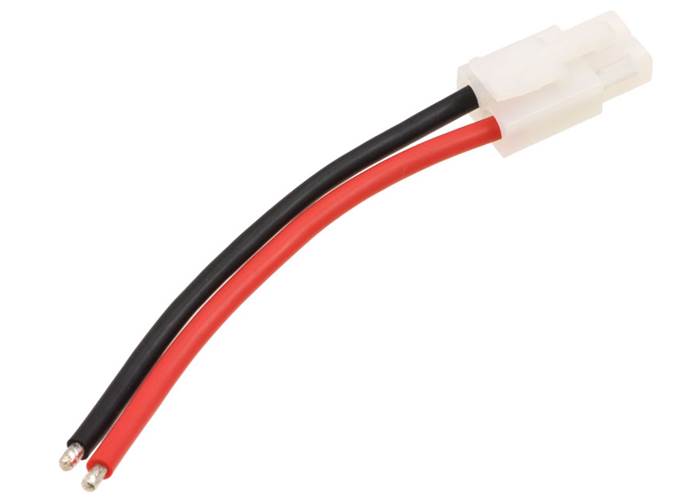

Tamiya plug with 10cm leads, female (1)

This style of high-current connector is commonly used with the 7.2V sub-C battery packs that power many RC cars. The connector, sometimes called Tamiya or Kyosho, is keyed so that power cannot be reversed. A latch secures the connection so that it will not become disconnected.

This is the female version of the connector (we also offer a matching male version). Two 10cm 14-AWG wires are crimped inside the connector housing and extend 9cm past the plastic housing. The leads have silicone insulation and stripped, tinned terminations. As an alternative, we sell a Tamiya connector pack that includes housings and crimp pins you can use to attach these female connectors to your own wires.

Note: these Tamiya connectors are sometimes referred to as “male” in the RC hobby industry, so please look at the connector picture below carefully to make sure it is what you want.

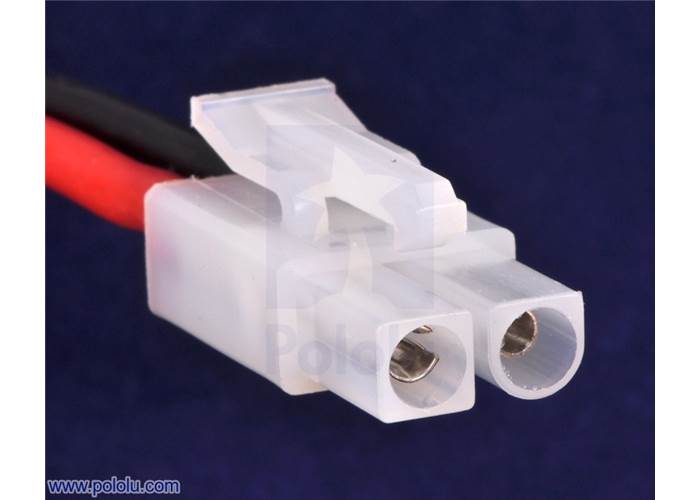

Female Tamiya plug connector

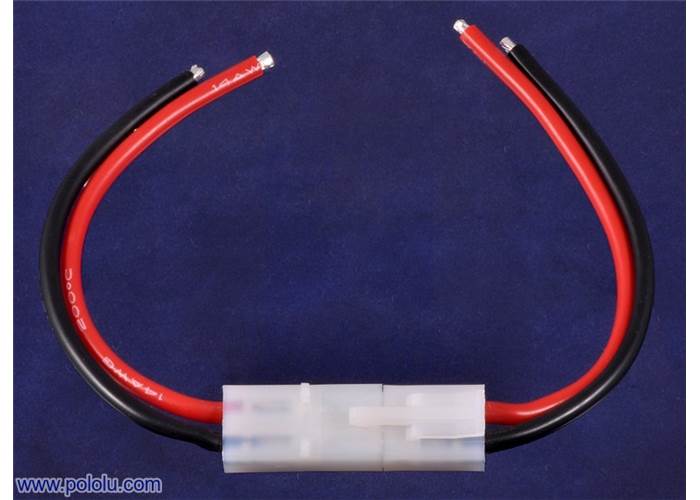

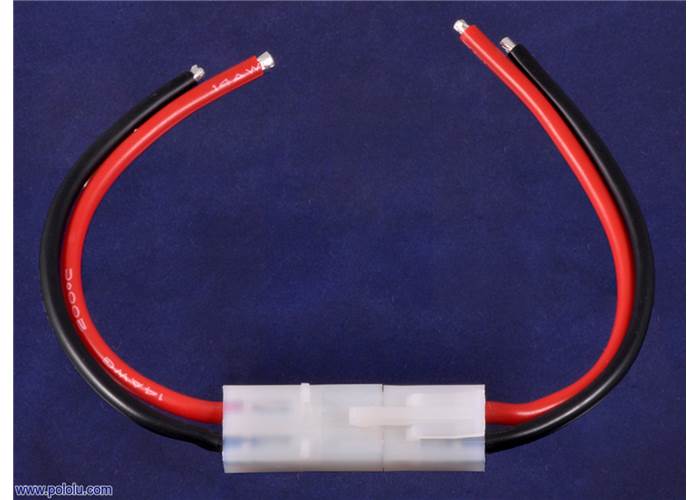

Male and female Tamiya plugs connected

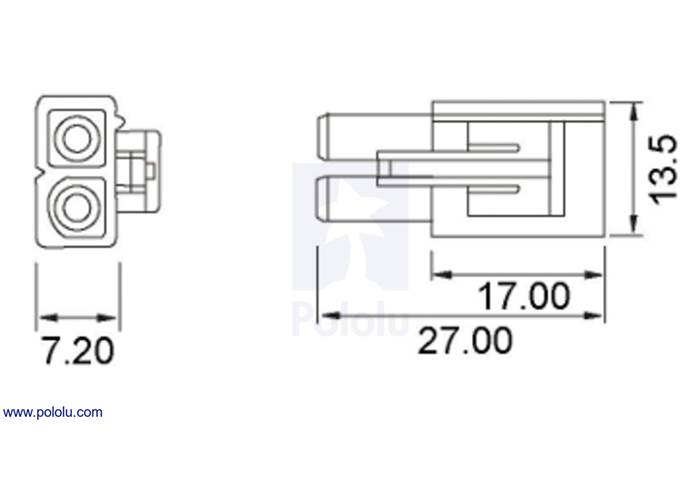

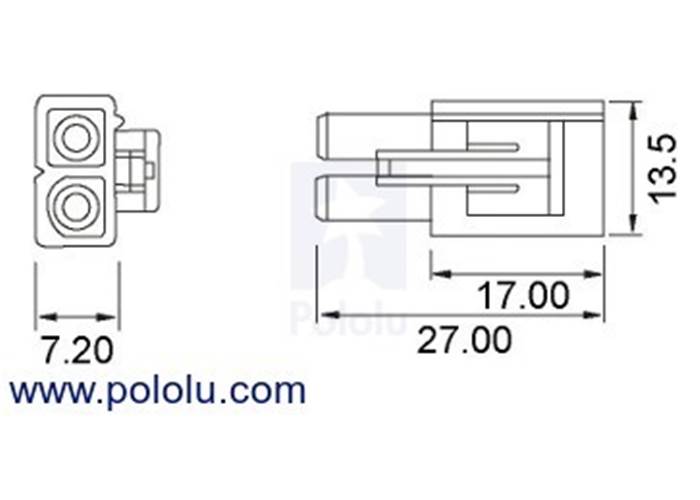

Female Tamiya plug dimensions (in mm)

Note: This connector is also available in the smaller mini Tamiya version.


Specifications

General specifications

Gender: female
Lead length: 10 cm1

Notes:

1
9cm extends past the connector housing.
