JST RCY Connector Pack, Female

This JST RCY plug is also referred to as a BEC (battery eliminator circuit) connector and is commonly used with battery packs for RC applications. The connector is keyed so that power cannot be reversed. You can use a crimping tool to attach these connectors to your own 22- to 28-AWG wires.

AUD$ 2.20

Out of Local Stock

We can ship 479 more in 7 days

Our Code: SKU-002904

Supplier Link: [Pololu MPN:1934]


Description

This JST RCY plug is also referred to as a BEC (battery eliminator circuit) connector and is commonly used with battery packs for RC applications. The connector is keyed so that power cannot be reversed.

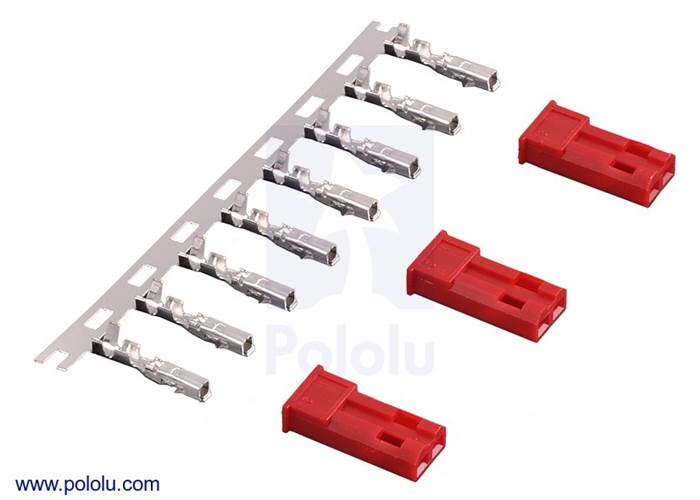

This pack contains enough housings and crimp pins (including two spare pins) for three female connectors (we also offer a pack for the male version). The crimp pins are designed for 22- to 28-AWG wires, and we sell a crimping tool that works well with them. As an alternative, we sell a pre-crimped version of this connector with 10 cm leads.

Note: these connectors are sometimes referred to as “male” in the RC hobby industry, so please look at the product picture carefully to make sure it is what you want.

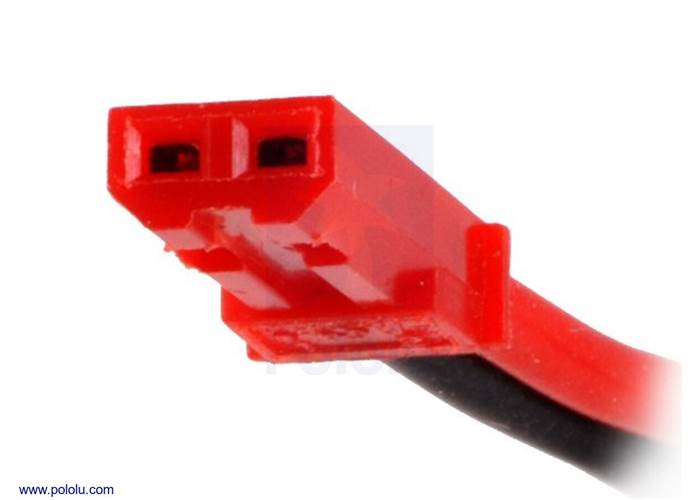

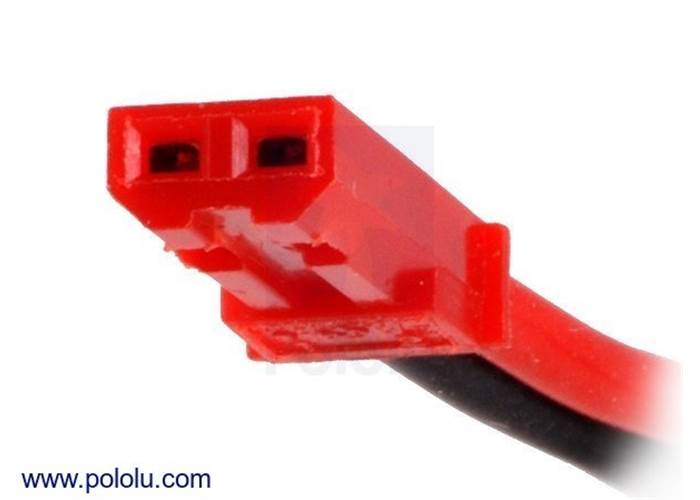

Female JST plug connector

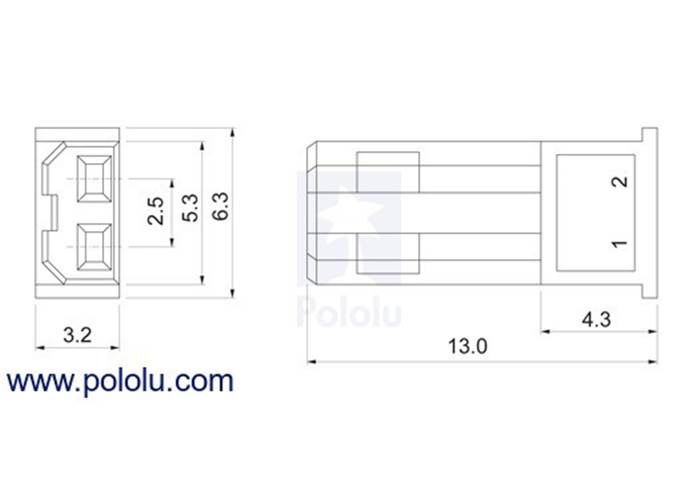

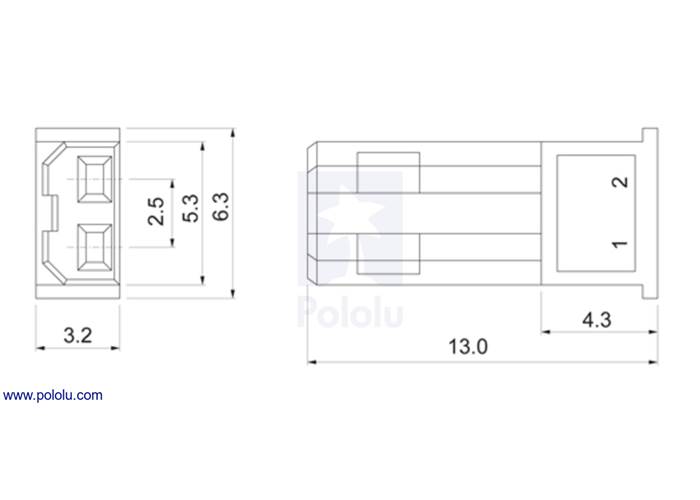

Female JST plug dimensions (in mm)

Female JST connector crimp pin dimensions (in mm)


Specifications

General specifications

Gender: female
Wire gauge: 22-28 AWG
