Mini Tamiya Connector Pack, Female

This connector, a smaller version of the female Tamiya connector , is commonly used with battery packs for RC applications. The connector is keyed so that power cannot be reversed, and a latch secures the connection so that it will not become disconnected.

AUD$ 2.60

Out of Local Stock

We can ship 279 more in 7 days

Our Code: SKU-002906

Supplier Link: [Pololu MPN:1936]


Description

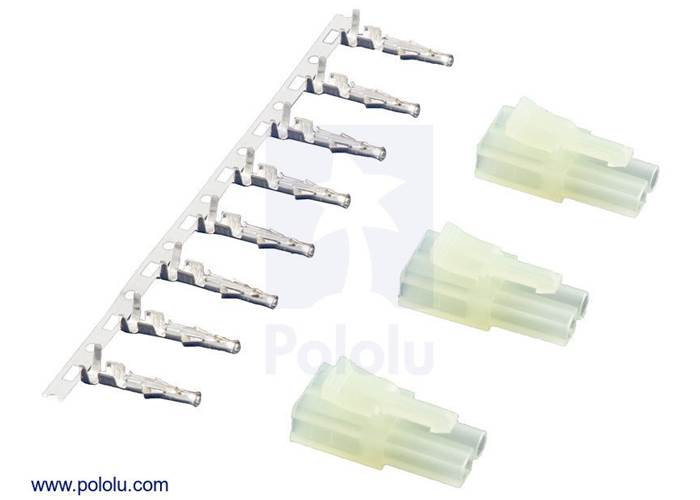

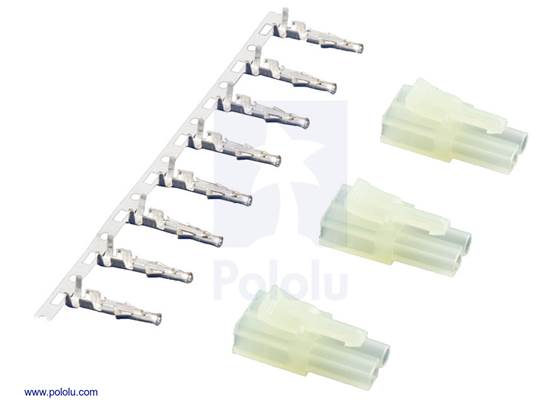

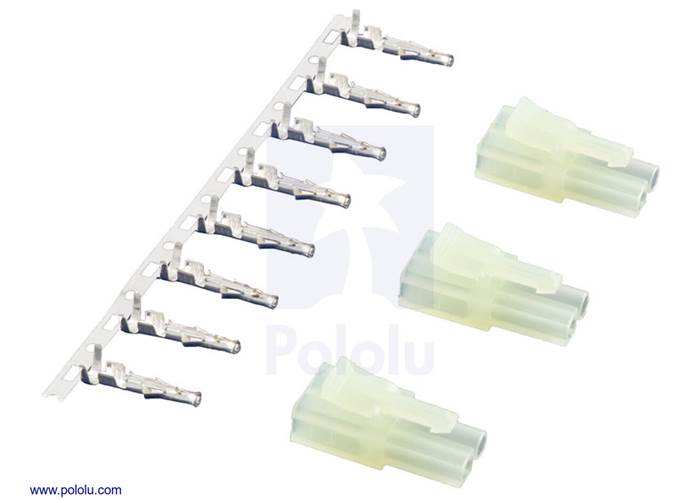

This connector is keyed so that power cannot be reversed, and a latch secures the connection so that it will not become disconnected. This pack contains enough housings and crimp pins (including two spare pins) for three female connectors (we also offer a pack for the male version). The crimp pins are designed for 16- to 20-AWG wires, and we sell a crimping tool that works well with them. As an alternative, we sell a pre-crimped version of this connector with 10 cm leads.

Note: these connectors are sometimes referred to as “male” in the RC hobby industry, so please look at the connector picture and diagram below carefully to make sure it is what you want.

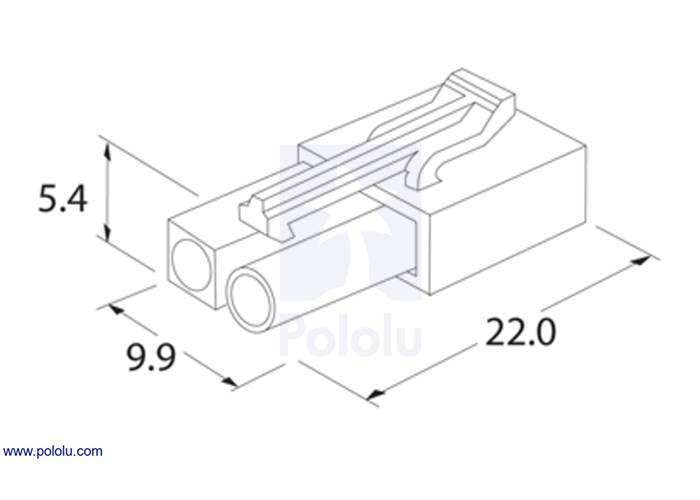

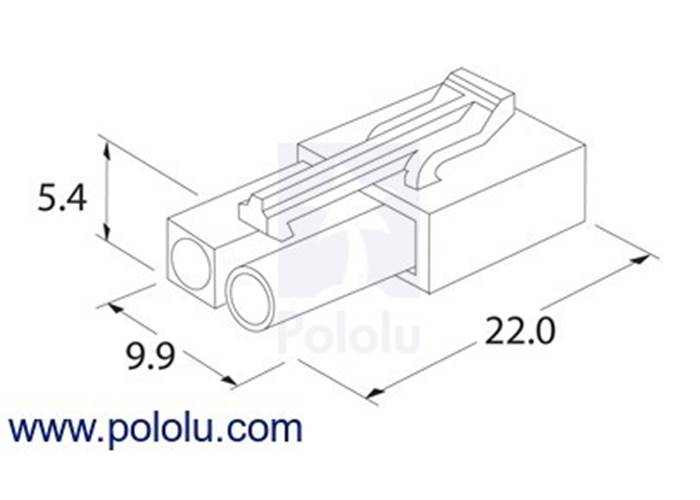

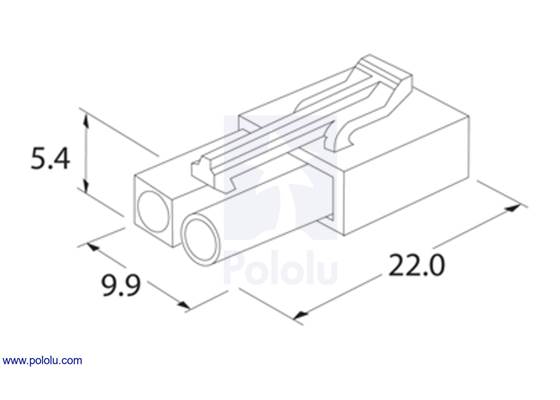

Female mini Tamiya plug dimensions (in mm)

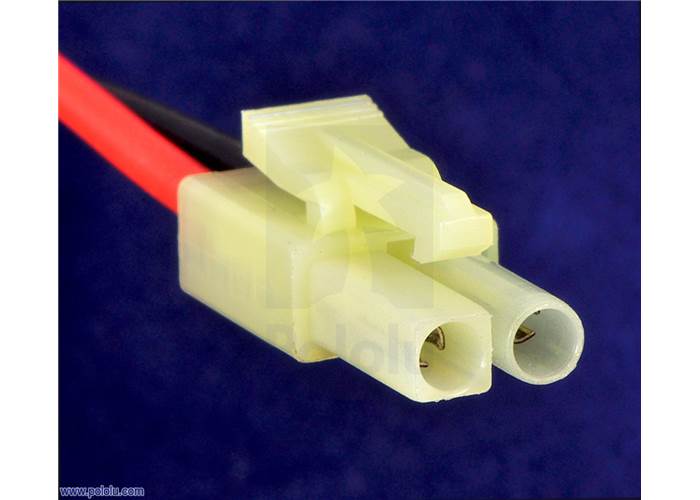

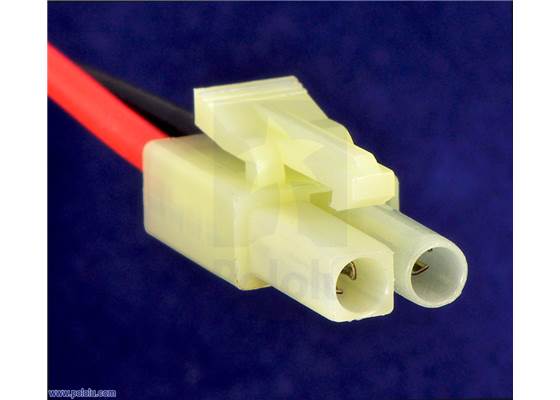

Female mini Tamiya plug connector


Specifications

General specifications

Gender: female
Wire gauge: 16-20 AWG
