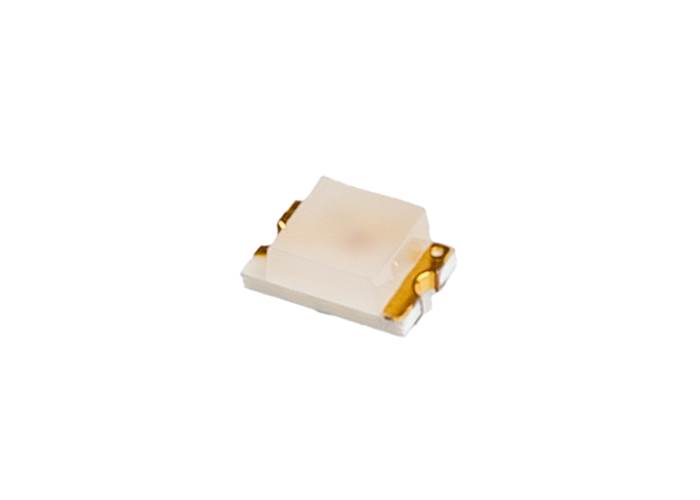

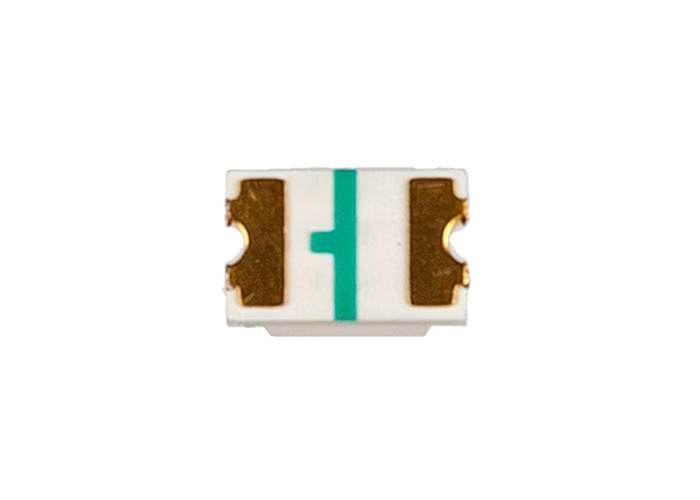

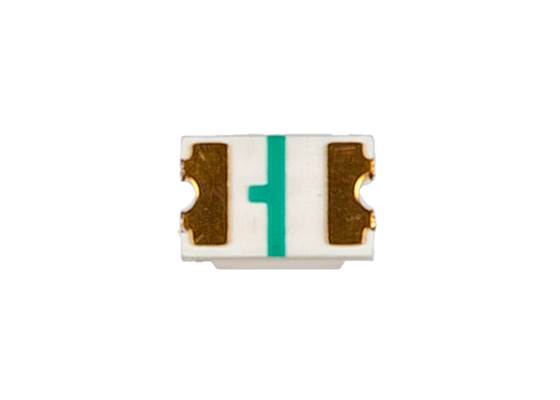

Diffused Green LED - Surface Mount

This is a basic diffused green surface mounted LED.

AUD$ 0.25

Special Order

Shipping from $4.90

+1457 more from our supplier in 7-10 days

Our Code: SKU-011273

Supplier Link: [SparkFun MPN:30231]

Description

This is a basic diffused green surface mounted LED.

Specifications

  • Colour: Green
  • Configuration: Standard
  • Lens Colour: White
  • Lens Transparency: Diffused
  • Millicandela Rating: 26.05mcd
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 1.30mm x 1.25mm
  • Voltage - Forward (Vf) (Typ): 2.2V
  • Current - Test: 20mA
  • Viewing Angle: 160°
  • Mounting Type: Surface Mount
  • Wavelength - Dominant: 570nm
  • Wavelength - Peak: 572nm

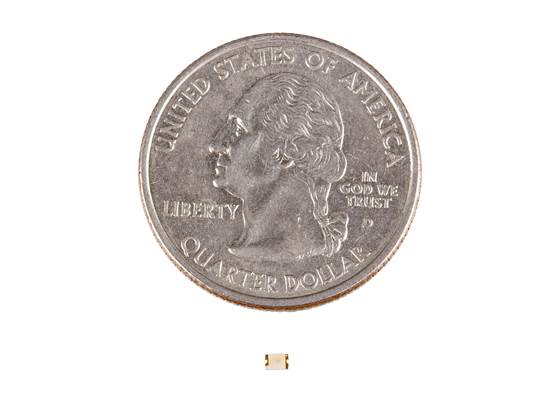

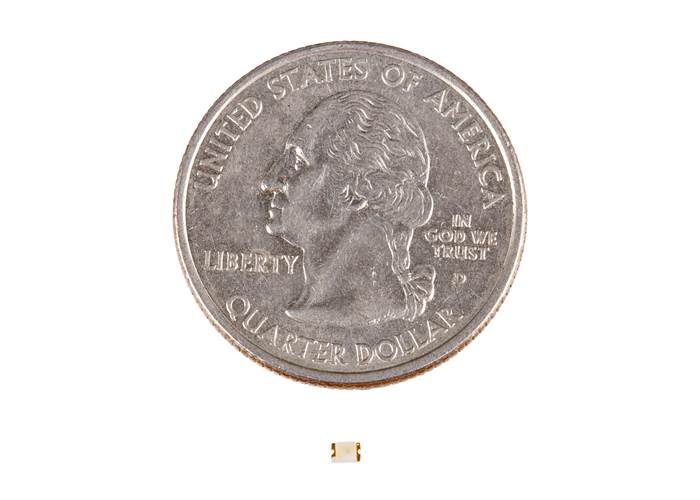

  • Dimensions: 2.00mm L x 1.25mm W
  • Height (Max): 0.90mm
  • Mfg #: LG R971-KN-1-0-20-R18
