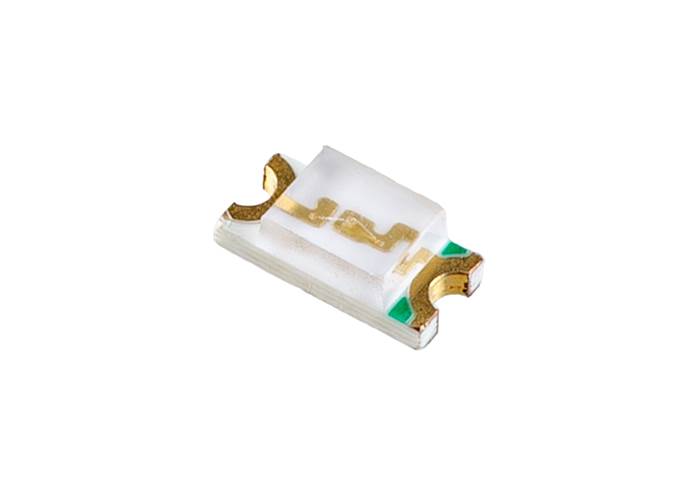

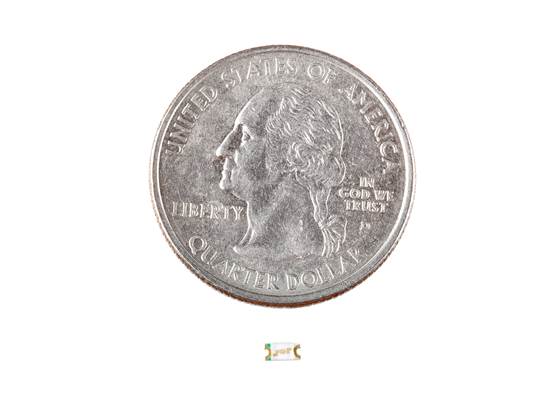

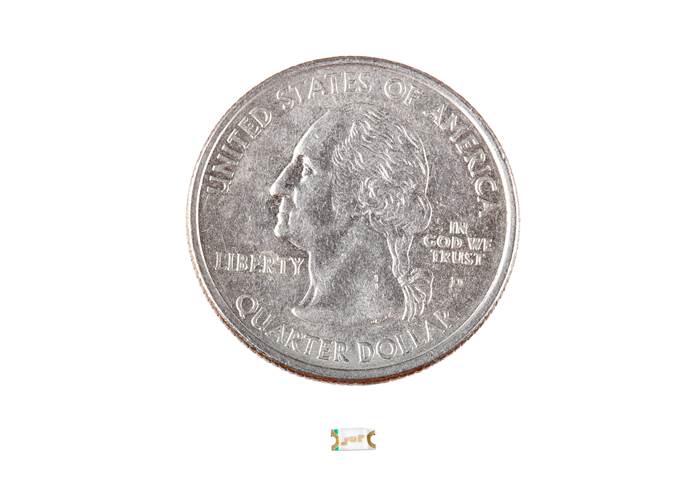

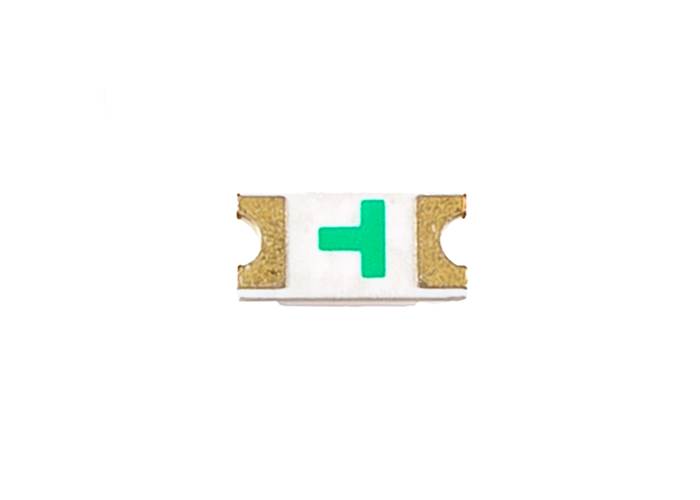

Blue LED - Surface Mount (1206)

This is a basic blue surface mounted LED.

AUD$ 0.55

Special Order

Shipping from $4.90

+121 more from our supplier in 7-10 days

Our Code: SKU-011058

Supplier Link: [SparkFun MPN:17734]

Description

This is a basic blue surface mounted LED. The same blue LED used on our RedBoard line of products and many more.

Specifications

  • Colour: Blue
  • Millicandela Rating: 104mcd
  • Lens Style: Rectangle with Flat Top
  • Lens Colour: Colorless
  • Lens Transparency: Clear
  • Lens Size: 2.06mm x 1.60mm
  • Voltage - Forward (Vf) (Typ): 3.3V
  • Current - Test: 20mA
  • Viewing Angle: 130°
  • Mounting Type: Surface Mount
  • Wavelength - Dominant: 470nm
  • Wavelength - Peak: 468nm
  • Dimensions: 3.20 L x 1.60mm W
  • Height (Max): 1.10mm
