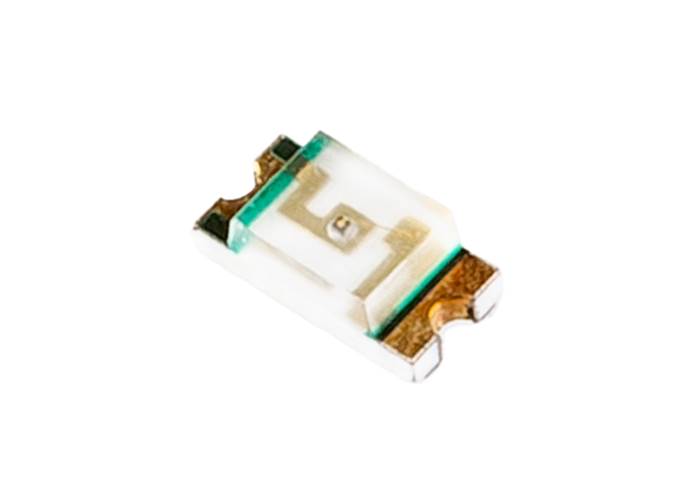

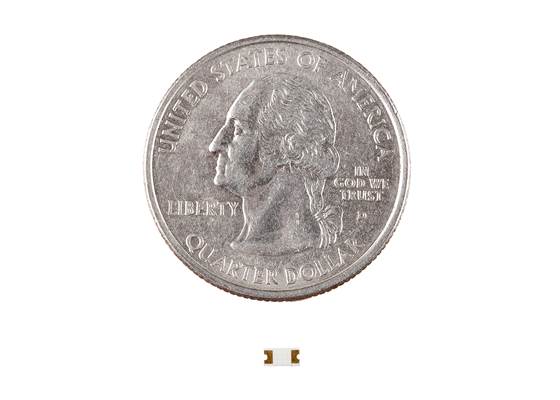

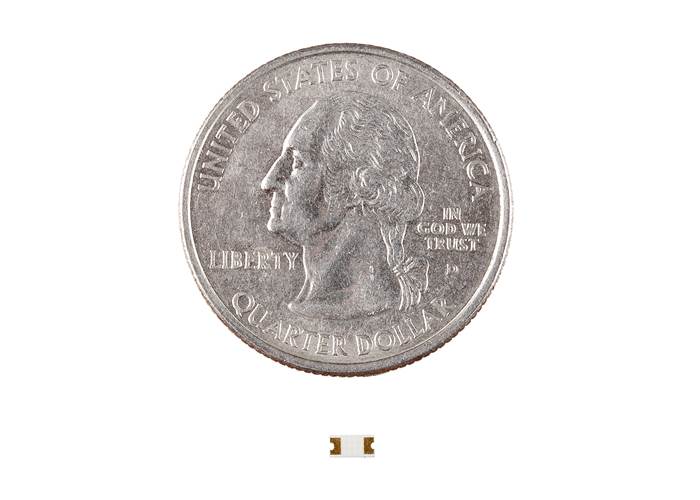

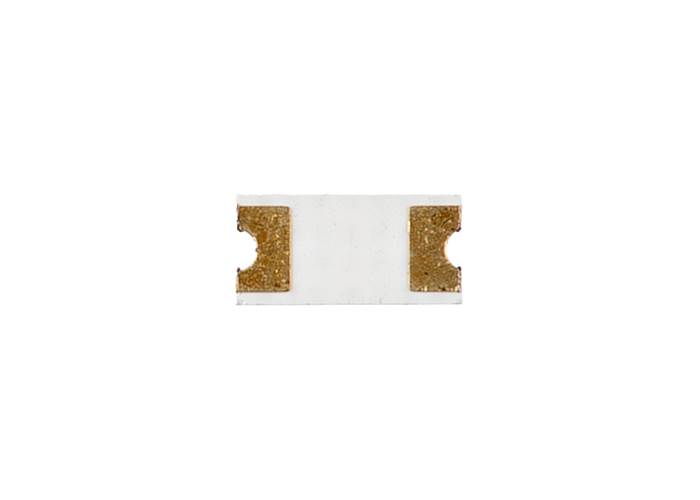

Yellow LED - Surface Mount (1206)

This is a basic yellow surface mounted LED.

AUD$ 0.45

Special Order

Shipping from $2.90

+25 more from our supplier in 7-10 days

Our Code: SKU-011059

Supplier Link: [SparkFun MPN:17735]

Description

This is a basic yellow surface mounted LED. The same yellow LED used on our RedBoard line of products and many more.

Specifications

  • Colour: Yellow
  • Millicandela Rating: 70mcd
  • Lens Style: Rectangle with Flat Top
  • Lens Colour: Colorless
  • Lens Transparency: Clear
  • Lens Size: 2.06mm x 1.60mm
  • Voltage - Forward (Vf) (Typ): 2.1V
  • Current - Test: 20mA
  • Viewing Angle: 130°
  • Mounting Type: Surface Mount
  • Wavelength - Dominant: 591nm
  • Wavelength - Peak: 588nm
  • Dimensions: 3.20 L x 1.60mm W
  • Height (Max): 1.10mm
