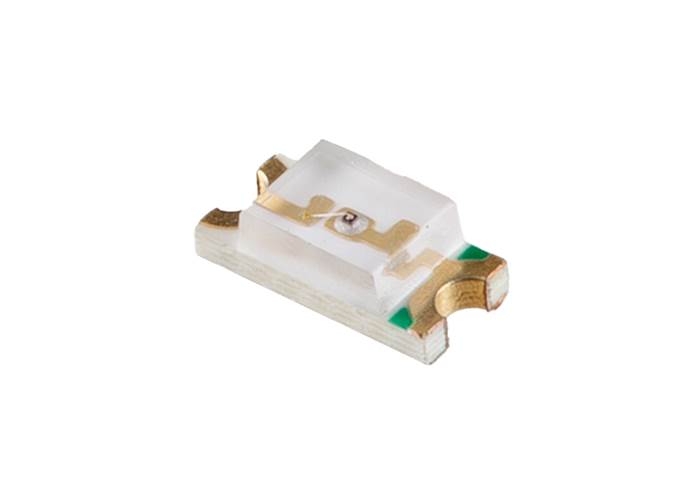

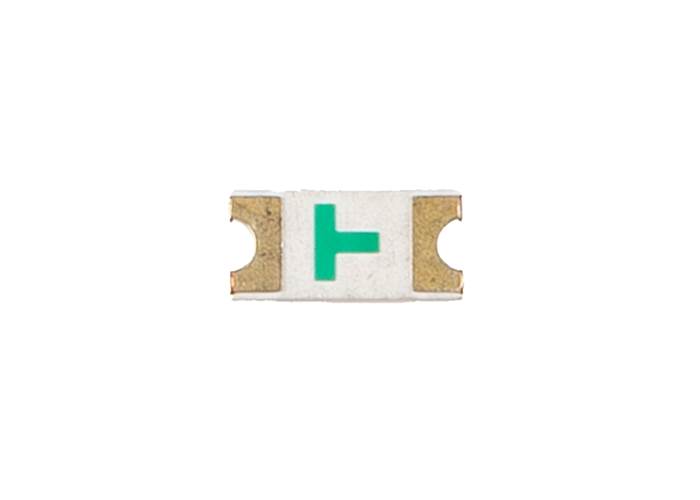

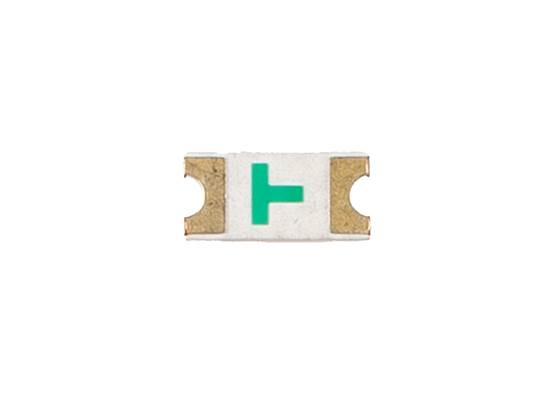

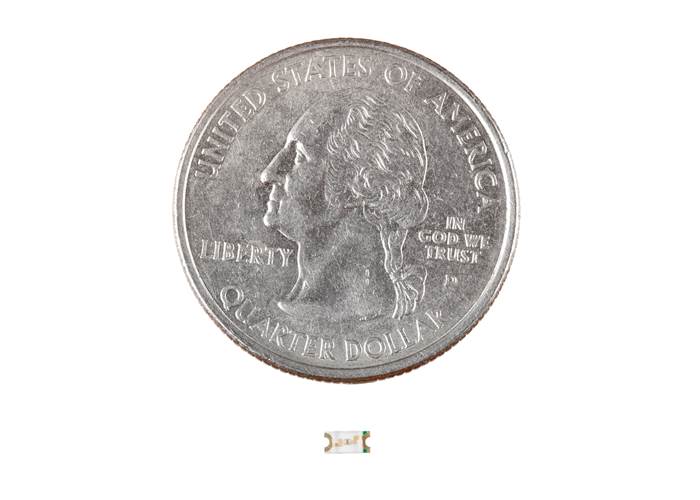

Red LED - Surface Mount (1206)

This is a basic red surface mounted LED.

AUD$ 0.25

Special Order

Shipping from $4.90

+200 more from our supplier in 7-10 days

Our Code: SKU-011073

Supplier Link: [SparkFun MPN:27913]

Description

This is a basic red surface mounted LED. The same red LED used on our RedBoard line of products and many more.

Specifications

  • Colour: Red
  • Configuration: Standard
  • Lens Colour: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 54mcd
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 2.06mm x 1.60mm
  • Voltage - Forward (Vf) (Typ): 2V
  • Current - Test: 20mA
  • Viewing Angle: 130°
  • Mounting Type: Surface Mount
  • Wavelength - Dominant: 631nm
  • Wavelength - Peak: 639nm
  • Mfg Part #: LTST-C150KRKT
