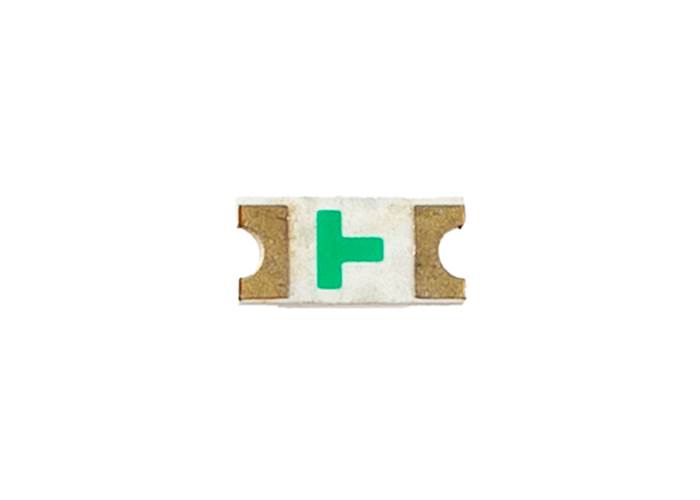

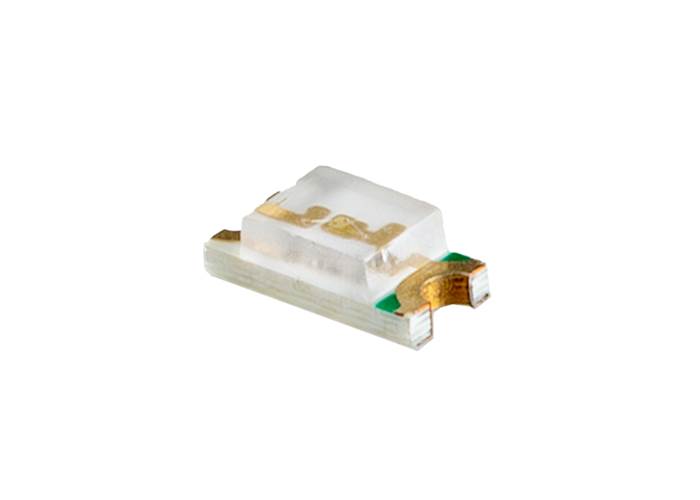

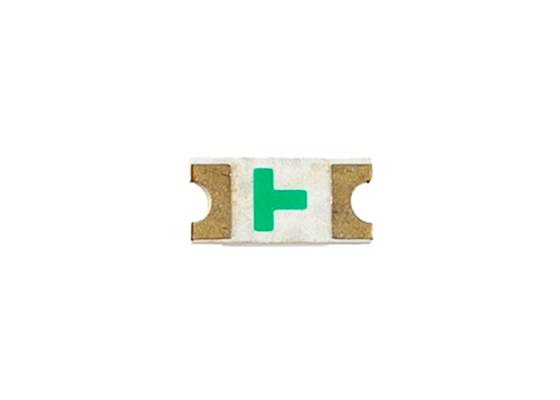

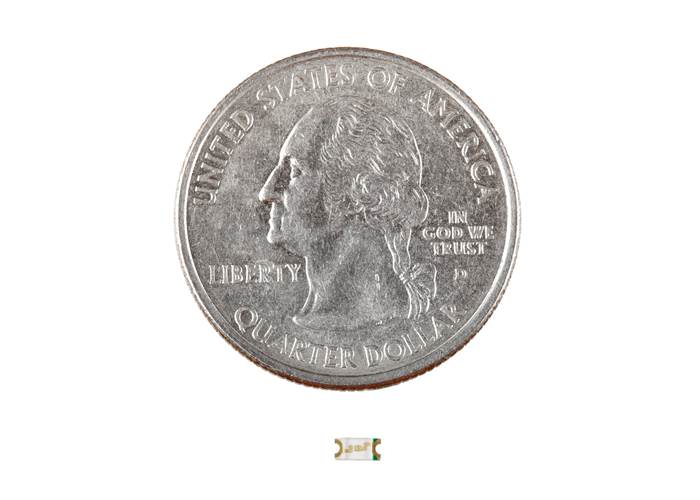

Bright Green LED - Surface Mount (1206)

This is a basic bright green surface mounted LED.

AUD$ 0.35

Special Order

Shipping from $4.90

+138 more from our supplier in 7-10 days

Our Code: SKU-011074

Supplier Link: [SparkFun MPN:27914]

Description

This is a basic bright green surface mounted LED. The same green LED used on our RedBoard line of products and many more.

Specifications

  • Colour: Green
  • Configuration: Standard
  • Lens Colour: Colorless
  • Lens Transparency: Clear
  • Millicandela Rating: 560mcd
  • Lens Style: Rectangle with Flat Top
  • Lens Size: 2.00mm x 1.50mm
  • Voltage - Forward (Vf) (Typ): 3.2V
  • Current - Test: 20mA
  • Viewing Angle: 120°
  • Mounting Type: Surface Mount
  • Wavelength - Dominant: 520nm
  • Wavelength - Peak: 526nm
  • Dimensions: 3.20mm L x 1.50mm W
  • Height: 1.10mm
  • Mfg Part #: IN-S126ATG
