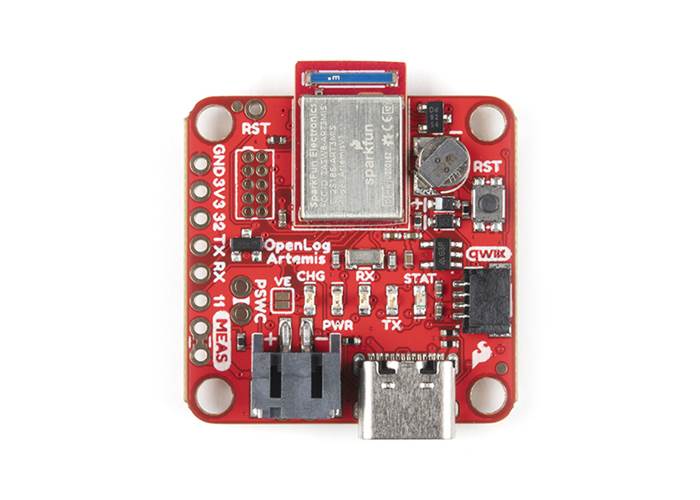

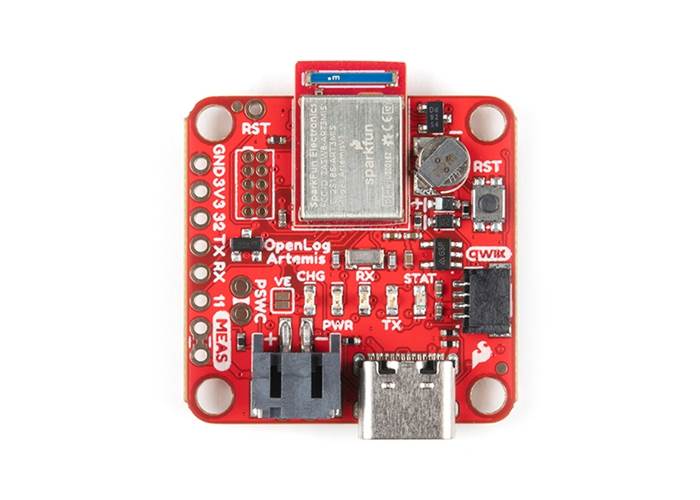

SparkFun OpenLog Artemis (without IMU)

The SparkFun OpenLog Artemis (OLA) is an open-source data logger designed for users who need to capture high-quality data without writing any code. Preprogrammed to automatically log serial data, GPS coordinates, and sensor readings to a CSV file, the OLA lets you bypass the development phase and get straight to analysing your data.

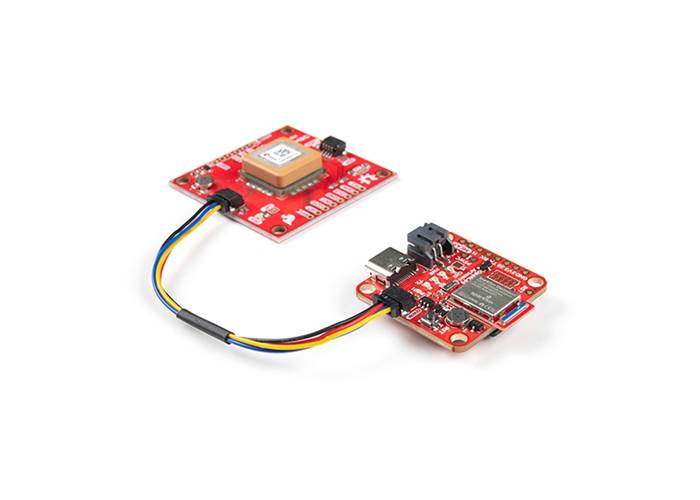

Plug-and-Play Qwiic Logging

The true magic of the OpenLog Artemis lies in its ability to instantly recognise and record data from the Qwiic ecosystem without any driver installation or programming:

• Auto-Detection: Plug in a compatible Qwiic sensor, and the OLA will automatically detect it, configure it, and begin logging data. Check the list on the right to see which boards support auto-detection.
• No Soldering: The Qwiic system eliminates the need for soldering or complex wiring, making it easy to swap sensors in the field.

Professional-Grade Internals

To ensure your data is accurate and actionable, we have equipped the board with precision timing components and flexible analogue inputs:

• Precision Timing: An onboard Real-Time Clock (RTC) ensures every data point is accurately time-stamped, which is crucial for correlating datasets.
• Analogue Logging: Four 14-bit ADC channels allow you to log voltages up to 2V at speeds up to 1900Hz.

Configuration & Power

While the OLA works out of the box, it is also highly configurable via an easy-to-use serial terminal over USB-C, allowing you to tweak settings and optimise power consumption for long-term deployments:

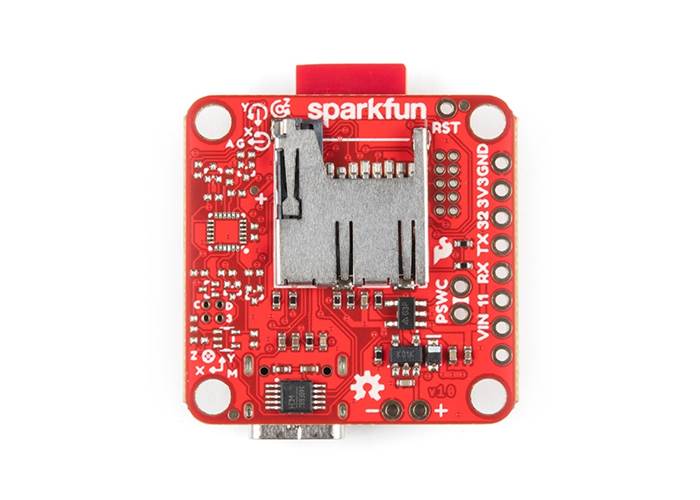

• Massive Storage: Supports microSD cards (FAT32/exFAT) up to 32GB+ for clear-text CSV logging.
• Long-Term Battery Life: With a deep-sleep current of ~18µA, a standard battery can power the device for weeks or even months, depending on your sampling rate.
• Flexible Sampling: Configure readings as fast as 500 times per second or as slow as once every 24 hours.

Future Proof

As new sensors are released, we continually update the OLA's capabilities. We have released a simple Artemis Firmware Upload GUI that lets you load the latest firmware and unlock new features without installing the Arduino IDE or hunting down libraries.

• Schematic
• Eagle Files
• Guides:
  • Hookup Guide
  • Designing with the SparkFun Artemis
  • Artemis Development with Arduino
• Board Dimensions
• Datasheet (Apollo3)
• Artemis Integration Guide
• Arduino Core
• Artemis Forums
• Artemis Info Page
• Qwiic Info Page
• CH340E USB Drivers
• Artemis Firmware Uploader GUI
  • Latest default firmware: v2.2
  • Geophone Logger firmware for logging seismic activity
  • GNSS Logger for advanced data logging with the uBlox F9 and M9 GNSS modules, including support for RAWX and RELPOSNED
• GitHub Hardware Repo
