5V, 1A Switching Voltage Regulator

AUD $24.95

In Stock: Ships Today

Back orders: 0 Available

Our Code: MCU-60038

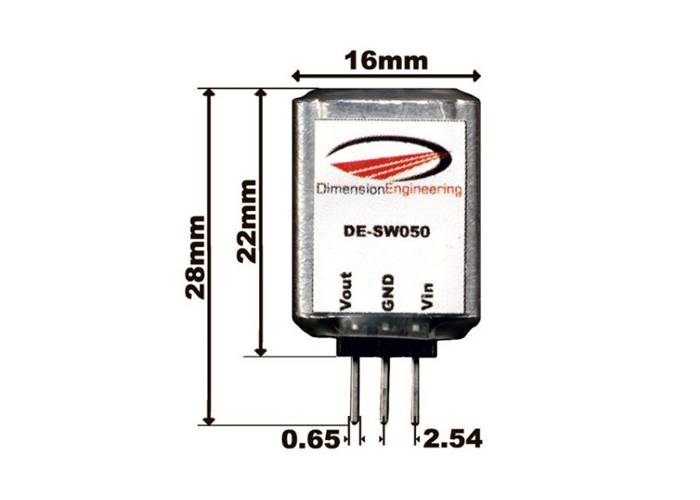

The 5V switching (switch-mode) regulator from Dimension Engineering is a high efficiency step-down voltage regulator that is pin-compatible with the common 78XX family of linear voltage regulators.


Overview

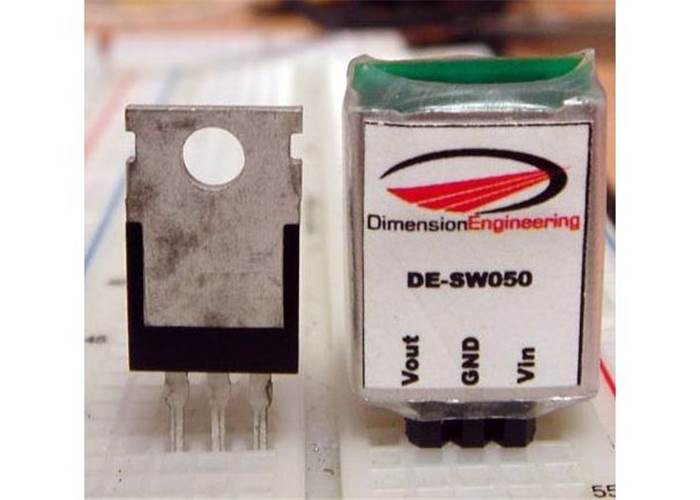

DE-SW050 next to a 7805 regulator The DE-SW050 switch mode voltage regulators are designed to be the easiest possible way to add the benefits of switch-mode power to a new or existing project. A DE-SW050 will allow you to take a higher voltage and it step down a 5V output in a compact, efficient manner with an output of 1A. The DE-SW050 family is pin-compatible with the common 78XX family of linear voltage regulators. They have integrated decoupling capacitors, so external capacitors are not generally necessary.





Switch-Mode?

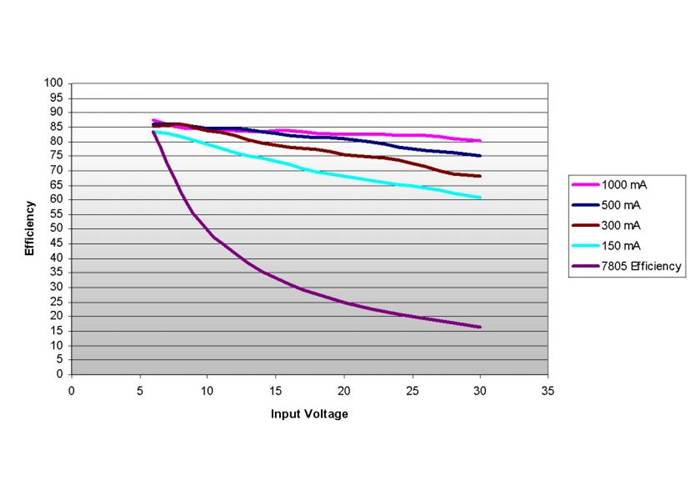

These switch mode regulators are way more efficient than the cheaper 7805 type. This enables your batteries to last much longer. The chart below shows the DE-SW050 compared to the 7805.  More info on switch mode regulators by Dimension Engineering.

5V 1A Switching Regular compared to 7805 regulator

5V 1A Switching Regular compared to 7805 regulator



We also stock a breakout board to make it easy to hook up the regulator.

Voltage regulator breakout board in use

Voltage Regulator mounted in breakout board


Specifications

  • Up to 30V input range
  • 83% typical efficiency, up to 87%
  • <2% ripple
  • 1A output (continuous)
  • 1.25A peak output (1 min)
  • 1.3V typical dropout voltage at full load
  • Can be put in parallel
