This bracket was designed specifically for the Glideforce Light-Duty (LD) linear actuators . It is machined out of a single piece of aluminium and has been tested to 310 kgf [700 lbs or 3100 N] of static load, which is well above the highest static loads the LD actuators are rated for.
Special Order
Shipping from $9.90
+44 more from our supplier in 7-10 days
Our Code: SKU-003170
Supplier Link: [Pololu MPN:2314]

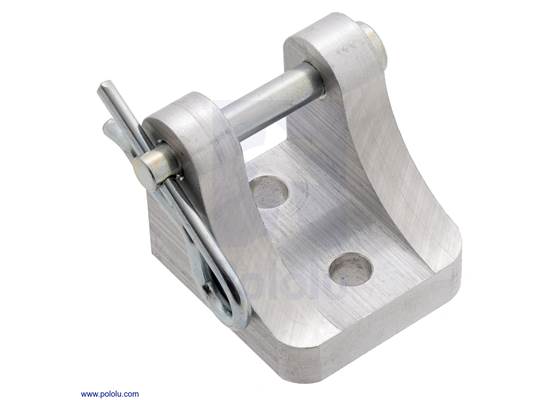

This bracket was designed specifically for the Glideforce Light-Duty (LD) linear actuators. It is machined out of a single piece of aluminum and has been tested to 310 kgf [700 lbs or 3100 N] of static load, which is well above the highest static loads the LD actuators are rated for. The mounting pin has a 0.248″ (6.3 mm) diameter. This bracket is sold individually, and two brackets are required for each linear actuator.
See the bracket datasheet (325k pdf) for dimensions.
Connecting the aluminum mounting bracket to one end of a Concentric LD linear actuator.
Note: As of September 2017, this product no longer includes mounting screws, and mounting pin is now held in place with a R-clip.
This product is Concentric part number LA-LD-BRACKET.
| Weight: | 76 g |
|---|
