This bracket was designed specifically for the Glideforce Industrial-Duty (ID) linear actuators . It is made from stamped, black powder coated steel and has been tested to 1700 kgf [3800 lbs or 17,000 N] of static load, which is well above the highest static loads the ID actuators are rated for.
Special Order
Shipping from $9.90
+15 more from our supplier in 7-10 days
Our Code: SKU-004495
Supplier Link: [Pololu MPN:3637]

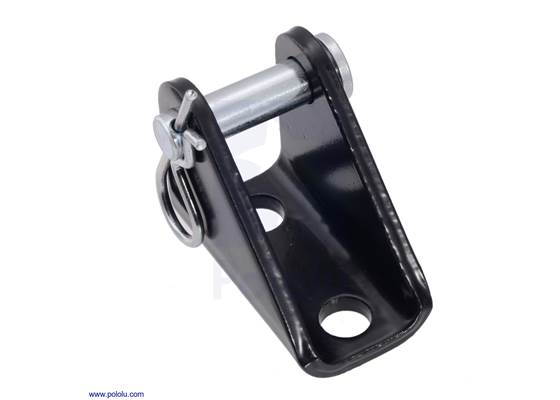

This bracket was designed specifically for the Glideforce Industrial-Duty (ID) linear actuators. It is made from stamped, black powder coated steel and has been tested to 1700 kgf [3800 lbs or 17,000 N] of static load, which is well above the highest static loads the ID actuators are rated for. The mounting pin has a 0.498″ (12.6 mm) diameter. This bracket is sold individually, and two brackets are required for each linear actuator.

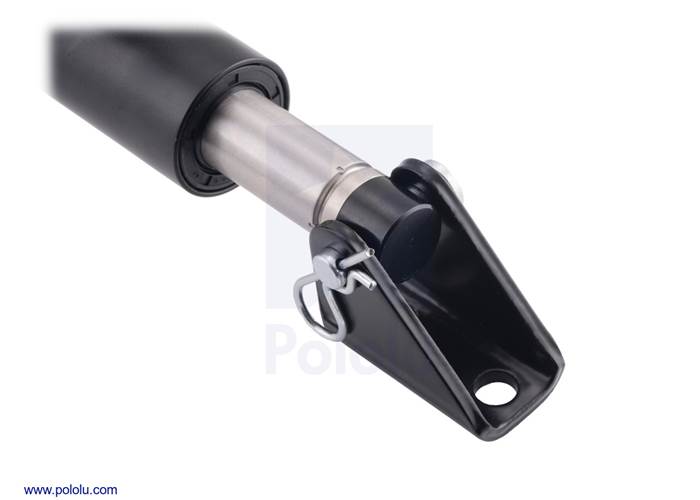

Steel mounting bracket on the extension rod of an Industrial-Duty linear actuator. |
Steel mounting bracket on the back of an Industrial-Duty linear actuator. |
See the bracket datasheet (315k pdf) for dimensions.
This product is Concentric part number LA-ID-BRKT-S-PC.
| Weight: | 365 g |
|---|
