This adaptor was designed specifically for the Glideforce Industrial-Duty (ID) linear actuators and can be used to turn either end into a clevis-style bracket.
Special Order
Shipping from $9.90
+10 more from our supplier in 7-10 days
Our Code: SKU-004496
Supplier Link: [Pololu MPN:3638]
This adapter was designed specifically for the Glideforce Industrial-Duty (ID) linear actuators and can be used to turn either end into a clevis-style bracket. It is machined out of a single piece of aluminum and has been tested to 1700 kgf [3800 lbs or 17,000 N] of static load, which is well above the highest static loads the ID actuators are rated for. The mounting pin has a 0.498″ (12.6 mm) diameter. This bracket is sold individually, and two brackets are required for each linear actuator.
This adaptor works on either end of the Glideforce industrial-duty (ID) linear actuators.
Mounting Clevis for Glideforce Industrial-Duty Linear Actuators – Aluminum. |
Mounting Clevis for Glideforce Industrial-Duty Linear Actuators – Aluminum. (1) |
A sleeve piece is included (visible set in the hole in the right picture above) to provide a better fit when using this on the back of the linear actuator, as shown below:

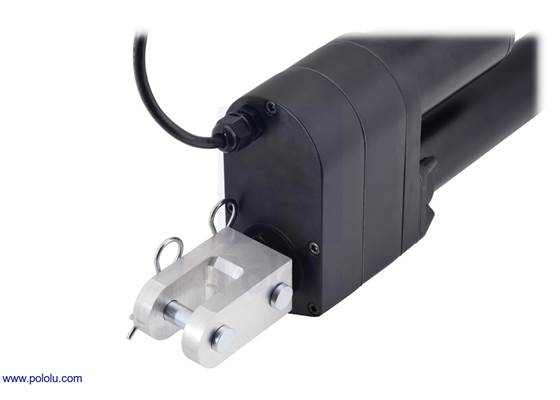

Mounting clevis on the back of an Industrial-Duty linear actuator.
When using this on the extension rod of the linear actuator, which has a wider diameter, the sleeve should be removed:

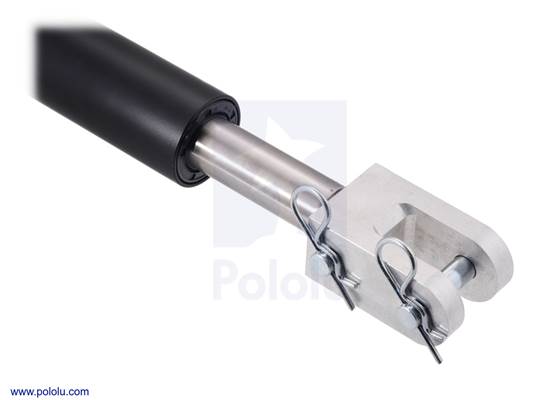

Mounting clevis on the extension rod of an Industrial-Duty linear actuator.
See the bracket datasheet (332k pdf) for dimensions.
This product is Concentric part number LA-ID-CLEVIS.
| Weight: | 360 g |
|---|
