Big Dome Pushbutton - Blue

AUD $19.95

In Stock: Ships Today

Back orders: Ship 301 units in 7 days

Our Code: SKU-000944

Supplier: [SparkFun MPN:11274]

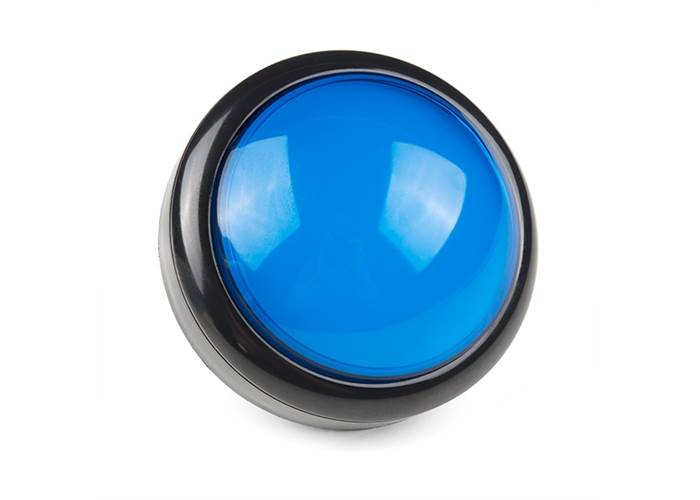

It’s the end of the world, and you need a button to press. This is it. A 100mm diameter (outside diameter) dome illuminated push button comes with an LED, securing nut and a pre-installed long life horizontal microswitch.


Description

It’s the end of the world, and you need a button to press. This is it. A 100mm diameter (outside diameter) dome illuminated push button comes with an LED, securing nut and a pre-installed long life horizontal microswitch. Button can also be adjusted to a low profile button by removing the middle ring.


Specifications

  • LED indicator light runs at 12VDC
  • Bulb holder is easy to install or remove

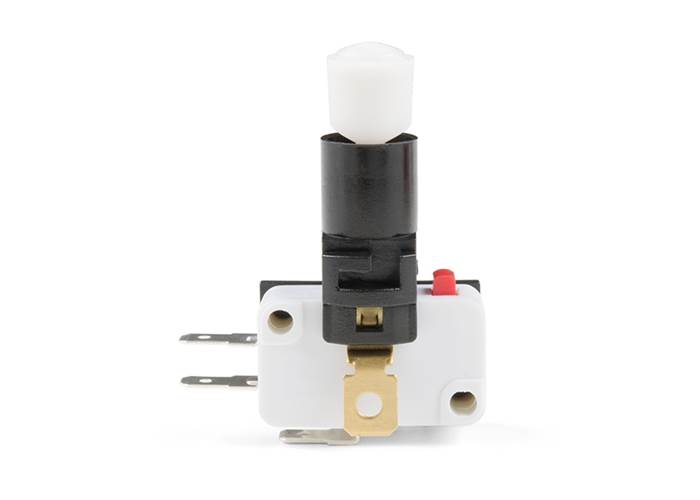

  • 3 Terminals Button Actuator microswitch included
  • Microswitch reliability tested to 10,000,000 cycles
  • Microswitch can be replaced
  • Polycarbonate lens cap for optical clarity

Dimensions

  • 100 mm Diameter x 72 mm Height
  • Net weight: 100grams
  • Mounting hole diameter: 24 mm
