With the SparkFun Serial MP3 Player Shield, turn any Arduino into a standalone audio player. Play MP3 and WAV files from a microSD card with simple serial control!
Special Order
Shipping from $19.90
+187 more from our supplier in 7-10 days
Our Code: SKU-011110
Supplier Link: [SparkFun MPN:28021]

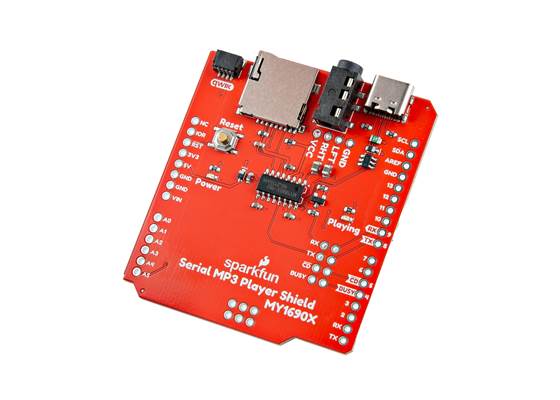

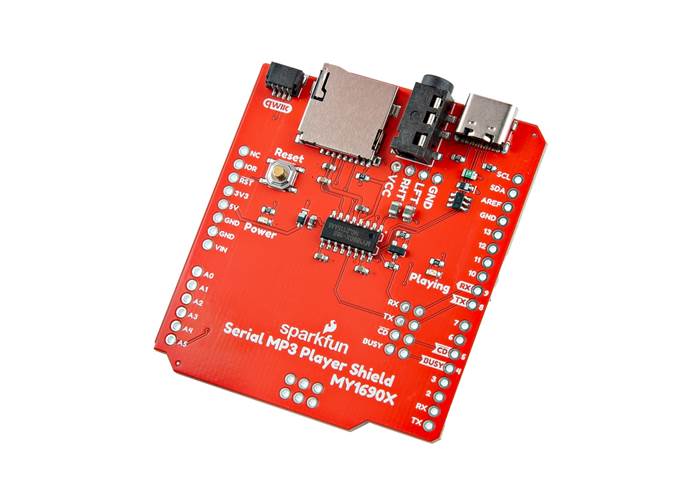

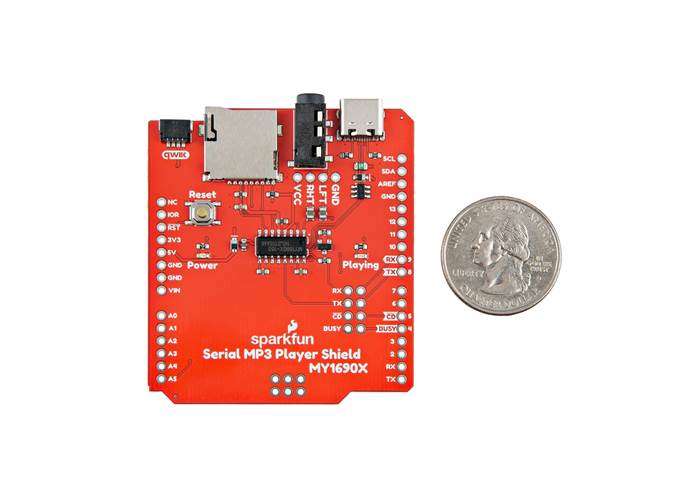

The SparkFun MY1690X Serial MP3 Player Shield is an awesome decoder that can store music files onto a standard microSD card, allowing you to add music or sound effects to any project. With this board, you can pull MP3 and WAV files from a microSD card and play them using only one shield, effectively turning any Arduino into a fully functional stand-alone audio player!

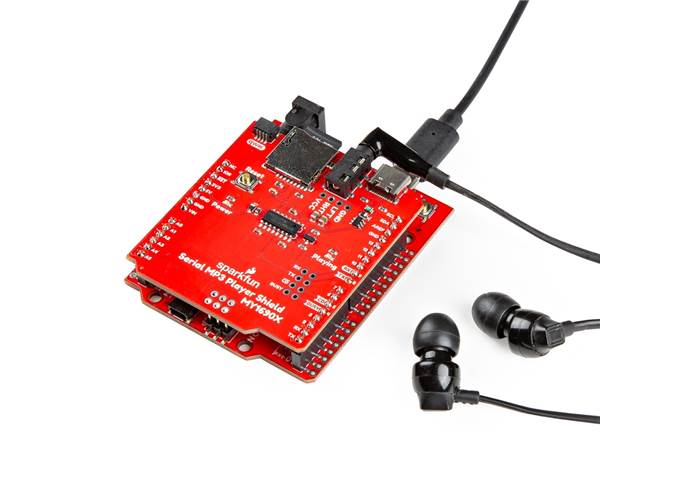

The MY1690X is controlled through a serial UART port. With a memory card (up to 32GB) formatted to FAT16 or FAT32, the MY1690X decodes MP3 and WAV files and outputs audio to a TRRS connector. You will just need a pair of headphones to jam out to your favourite tunes. A USB-C connector is populated to mount the microSD card to a computer easily. ESD protection diodes and 5V/1A resettable are included for protection. Once it shows up as a drive, audio files can be added or removed from the memory card. Up to 65536 tracks can be loaded and played back from the memory card.
Schottky diodes are also included for protection when powering the shield through the USB-C connector or an Arduino's 5V pin. The MY1690 is a serial device and is *not* I2C compatible, but a horizontal Qwiic connector is included to allow users access to the I2C bus on an Arduino that may not already have a Qwiic connector. Easy access to the reset pin is provided with the reset button populated. Status LEDs for power and playback are also included.
This shield does not have headers installed. We recommend the Arduino R3 Stackable Header Kit. Additionally, you will need an audio amplifier to connect the output to speakers.
