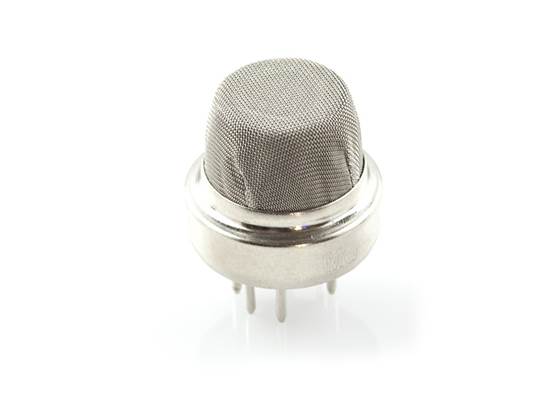

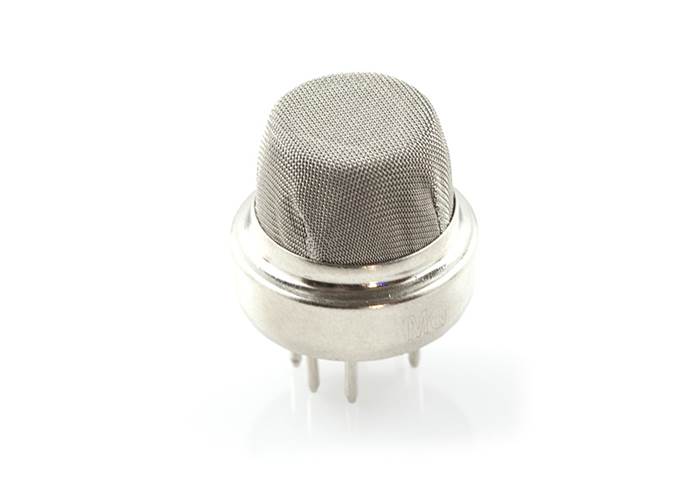

LPG Gas Sensor - MQ-6

This is a simple-to-use liquefied petroleum petrol (LPG) sensor, suitable for sensing LPG (composed of mostly propane and butane) concentrations in the air. The MQ-6 can detect petrol concentrations anywhere from 200 to 10000ppm. This sensor has a high sensitivity and fast response time.

AUD$ 9.95

Special Order

Shipping from $7.90

+53 more from our supplier in 7-10 days

Our Code: SKU-000409

Supplier Link: [SparkFun MPN:9405]


Description

This is a simple-to-use liquefied petroleum petrol (LPG) sensor, suitable for sensing LPG (composed of mostly propane and butane) concentrations in the air. The MQ-6 can detect petrol concentrations anywhere from 200 to 10000ppm.

This sensor has a high sensitivity and fast response time. The sensor’s output is an analogue resistance. The drive circuit is very simple; all you need to do is power the heater coil with 5V, add a load resistance, and connect the output to an ADC.

This sensor comes in a package similar to our MQ-3 alcohol sensor, and can be used with the breakout board below.
