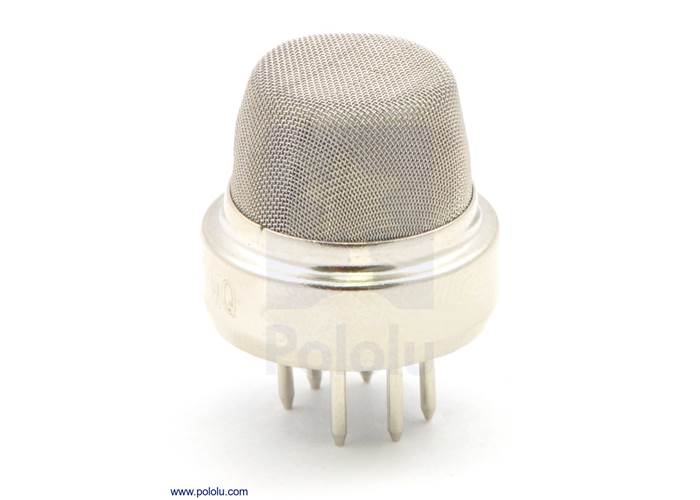

Flammable Gas & Smoke Sensor MQ-2

This semiconductor petrol sensor detects the presence of combustible petrol and smoke at concentrations from 300 to 10,000 ppm. The sensor’s simple analogue voltage interface requires only one analogue input pin from your microcontroller.

AUD$ 5.95

In stock in Australia

Our supplier is out of stock

Our Code: SKU-002622

Supplier Link: [Pololu MPN:1480]


Description

Gas sensor with metal case with quarter for size reference

Overview

This flammable petrol and smoke sensor detects the concentrations of combustible petrol in the air and ouputs its reading as an analogue voltage. The sensor can measure concentrations of flammable petrol of 300 to 10,000 ppm.The sensor can operate at temperatures from -20 to 50°C and consumes less than 150 mA at 5 V. Please read the MQ2 datasheet (184k pdf) for more information about the sensor.

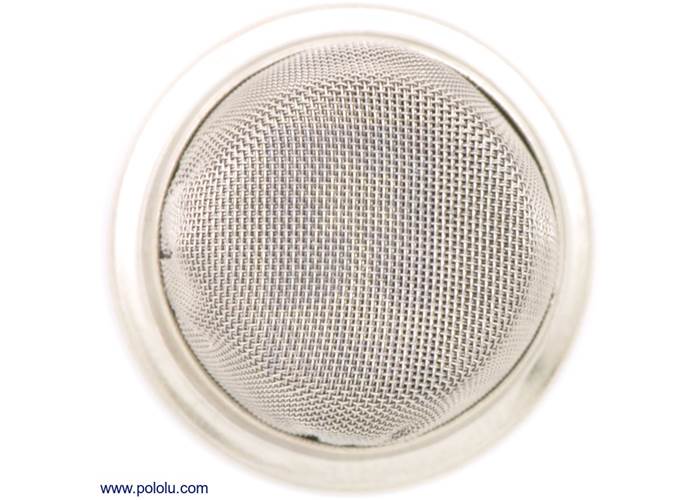

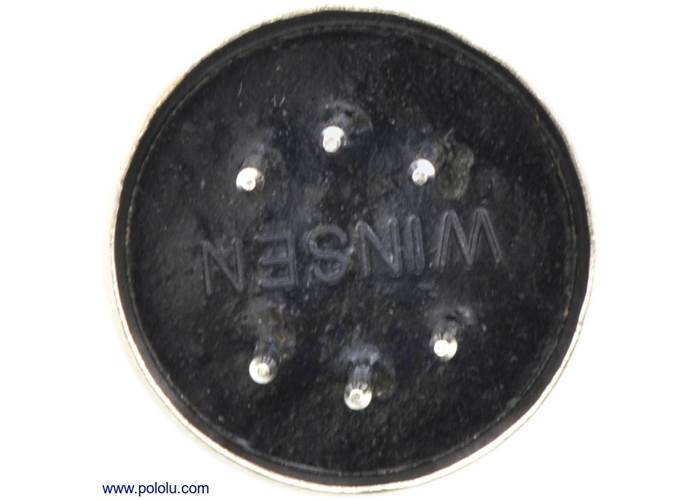

Gas sensor with metal case bottom view

Connections

Connecting five volts across the heating (H) pins keeps the sensor hot enough to function correctly. Connecting five volts at either the A or B pins causes the sensor to emit an analogue voltage on the other pins. A resistive load between the output pins and ground sets the sensitivity of the detector. Please note that the picture in the datasheet for the top configuration is wrong. Both configurations have the same pinout consistent with the bottom configuration.The resistive load should be calibrated for your particular application using the equations in the datasheet, but a good starting value for the resistor is 20 kΩ.

We offer two breakout boards that make it easier to interface with these sensors: a Pololu carrier board and a SparkFun carrier board. The Pololu version is shown below.

Pololu MQ gas sensor carrier with sensitivity-setting resistor soldered in the vertical orientation
