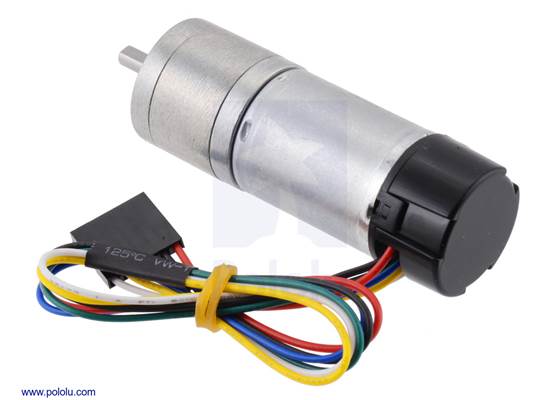

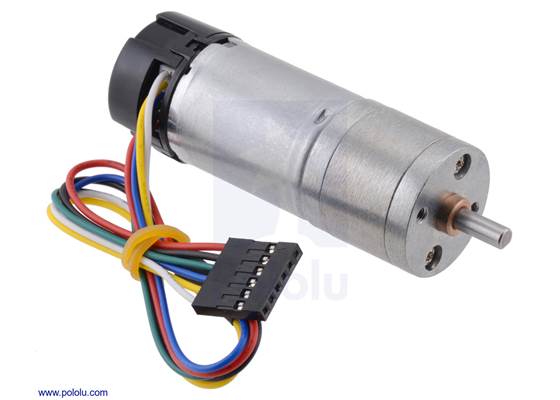

34:1 Metal Gearmotor 25Dx67L mm LP 6V with 48 CPR Encoder

This gearmotor consists of a low-power, 6 V brushed DC motor combined with a 34.014:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 1632.67 counts per revolution of the gearbox’s output shaft.

AUD$ 72.95

Special Order

Shipping from $7.90

+107 more from our supplier in 7-10 days

Our Code: SKU-005622

Supplier Link: [Pololu MPN:4824]


Description

Overview

These cylindrical brushed DC gearmotors are available in a wide range of gear ratios and with five different motors (two power levels of 6 V motors and three power levels of 12 V motors). The gearmotors all have the same 25 mm diameter case and 4 mm diameter gearbox output shaft, so it is generally easy to swap one version for another if your design requirements change (though the length of the gearbox tends to increase with the gear ratio). The motor and encoder portion is available by itself (no gearbox) for each combination of power level and nominal operating voltage, and versions without the encoder are also available. Please see the 25D metal gearmotor comparison table for detailed specifications of all our 25D metal gearmotors. This dynamically-sortable table can help you find the gearmotor that offers the best blend of speed, torque, and current-draw for your particular application. A more basic comparison table is available below:

Rated
Voltage
Motor Type Stall
Current
@ Rated Voltage
No-Load
Speed
@ Rated Voltage
Approximate
Stall Torque
@ Rated Voltage


With Encoder


Without Encoder
6 V high-power
(HP)
6.5 A 10,000 RPM 5 oz-in 1:1 HP 6V w/encoder
2150 RPM 20 oz-in 4.4:1 HP 6V w/encoder 4.4:1 HP 6V
990 RPM 39 oz-in 9.7:1 HP 6V w/encoder 9.7:1 HP 6V
460 RPM 75 oz-in 20.4:1 HP 6V w/encoder 20.4:1 HP 6V
280 RPM 90 oz-in 34:1 HP 6V w/encoder 34:1 HP 6V
200 RPM 115 oz-in 47:1 HP 6V w/encoder 47:1 HP 6V
130 RPM 150 oz-in 75:1 HP 6V w/encoder 75:1 HP 6V
97 RPM 210 oz-in 99:1 HP 6V w/encoder 99:1 HP 6V
56 RPM 350 oz-in 172:1 HP 6V w/encoder 172:1 HP 6V
6 V low-power
(LP)
2.4 A 6200 RPM 2 oz-in 1:1 LP 6V w/encoder
1300 RPM 8 oz-in 4.4:1 LP 6V w/encoder 4.4:1 LP 6V
590 RPM 17 oz-in 9.7:1 LP 6V w/encoder 9.7:1 LP 6V
290 RPM 33 oz-in 20.4:1 LP 6V w/encoder 20.4:1 LP 6V
170 RPM 50 oz-in 34:1 LP 6V w/encoder 34:1 LP 6V
120 RPM 65 oz-in 47:1 LP 6V w/encoder 47:1 LP 6V
78 RPM 95 oz-in 75:1 LP 6V w/encoder 75:1 LP 6V
58 RPM 130 oz-in 99:1 LP 6V w/encoder 99:1 LP 6V
34 RPM 200 oz-in 172:1 LP 6V w/encoder 172:1 LP 6V
25 RPM 220 oz-in 227:1 LP 6V w/encoder 227:1 LP 6V
15 RPM 300 oz-in 378:1 LP 6V w/encoder 378:1 LP 6V
11 RPM 400 oz-in 499:1 LP 6V w/encoder 499:1 LP 6V
12 V high-power
(HP)
5.6 A 10,200 RPM 5.5 oz-in 1:1 HP 12V w/encoder
2250 RPM 23 oz-in 4.4:1 HP 12V w/encoder 4.4:1 HP 12V
1030 RPM 44 oz-in 9.7:1 HP 12V w/encoder 9.7:1 HP 12V
500 RPM 85 oz-in 20.4:1 HP 12V w/encoder 20.4:1 HP 12V
290 RPM 120 oz-in 34:1 HP 12V w/encoder 34:1 HP 12V
210 RPM 165 oz-in 47:1 HP 12V w/encoder 47:1 HP 12V
130 RPM 240 oz-in 75:1 HP 12V w/encoder 75:1 HP 12V
100 RPM 300 oz-in 99:1 HP 12V w/encoder 99:1 HP 12V
12 V medium-power
(MP)
2.1 A 7800 RPM 2.7 oz-in 1:1 MP 12V w/encoder
1700 RPM 11 oz-in 4.4:1 MP 12V w/encoder 4.4:1 MP 12V
770 RPM 22 oz-in 9.7:1 MP 12V w/encoder 9.7:1 MP 12V
370 RPM 42 oz-in 20.4:1 MP 12V w/encoder 20.4:1 MP 12V
220 RPM 63 oz-in 34:1 MP 12V w/encoder 34:1 MP 12V
160 RPM 85 oz-in 47:1 MP 12V w/encoder 47:1 MP 12V
100 RPM 125 oz-in 75:1 MP 12V w/encoder 75:1 MP 12V
76 RPM 165 oz-in 99:1 MP 12V w/encoder 99:1 MP 12V
43 RPM 250 oz-in 172:1 MP 12V w/encoder 172:1 MP 12V
33 RPM 320 oz-in 227:1 MP 12V w/encoder 227:1 MP 12V
12 V low-power
(LP)
1.1 A 5600 RPM 2 oz-in 1:1 LP 12V w/encoder
1200 RPM 8 oz-in 4.4:1 LP 12V w/encoder 4.4:1 LP 12V
560 RPM 15 oz-in 9.7:1 LP 12V w/encoder 9.7:1 LP 12V
260 RPM 29 oz-in 20.4:1 LP 12V w/encoder 20.4:1 LP 12V
150 RPM 43 oz-in 34:1 LP 12V w/encoder 34:1 LP 12V
110 RPM 60 oz-in 47:1 LP 12V w/encoder 47:1 LP 12V
71 RPM 85 oz-in 75:1 LP 12V w/encoder 75:1 LP 12V
55 RPM 115 oz-in 99:1 LP 12V w/encoder 99:1 LP 12V
31 RPM 180 oz-in 172:1 LP 12V w/encoder 172:1 LP 12V
23 RPM 240 oz-in 227:1 LP 12V w/encoder 227:1 LP 12V
14 RPM 320 oz-in 378:1 LP 12V w/encoder 378:1 LP 12V

Note: Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. For these gearboxes, the recommended upper limit for instantaneous torque is 15 kg-cm (200 oz-in); we strongly advise keeping applied loads well under this limit. Stalls can also result in rapid (potentially on the order of a second) thermal damage to the motor windings and brushes, especially for the versions that use high-power (HP) motors; a general recommendation for brushed DC motor operation is 25% or less of the stall current.

In general, these kinds of motors can run at voltages above and below their nominal voltages (they can begin rotating at voltages as low as 1 V); lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.

These gearmotors are functionally identical to the previous versions we carried without end caps (they use the same motor, encoder, and gearboxes). The black plastic end cap is easily removable if you need to access the encoder or want to slightly reduce the overall gearmotor size, but there is a little bit of base plastic that will remain, as shown in the picture below:

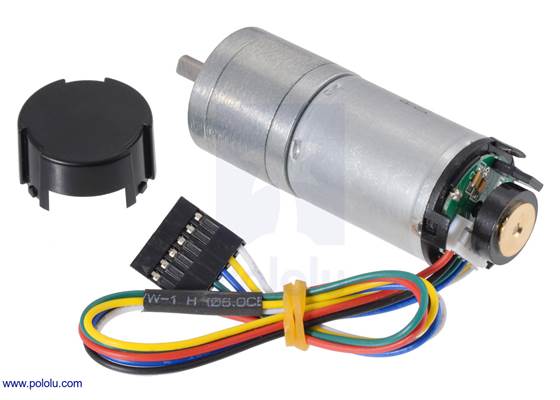

25D mm metal gearmotor with 48 CPR encoder (with end cap removed).

Details for item #4824

Exact gear ratio: ``(22×20×22×22×23) / (12×12×10×10×10) ~~ bb(34.014:1)``

Dimensions

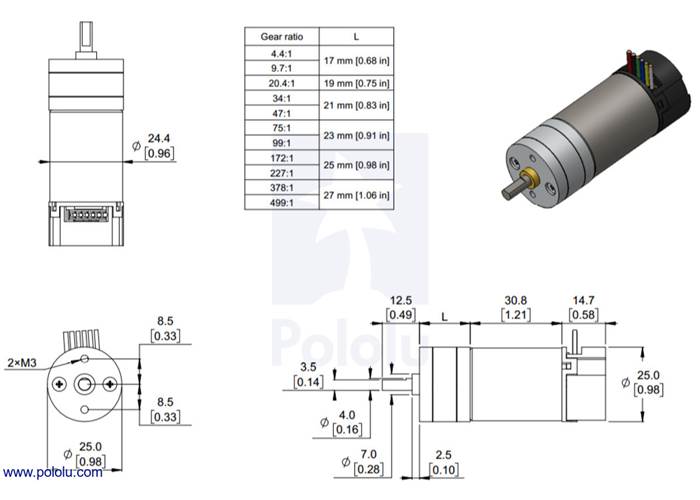

The diagram below shows the dimensions of the 25D mm line of gearmotors (units are mm over [inches]). This diagram is also available as a downloadable PDF (171k pdf).

Dimensions of the Pololu 25D mm metal gearmotors with encoders. Units are mm over [inches].

Warning: Do not screw too far into the mounting holes as the screws can hit the gears. We recommend screwing no further than 6 mm (0.24″) into the screw hole.

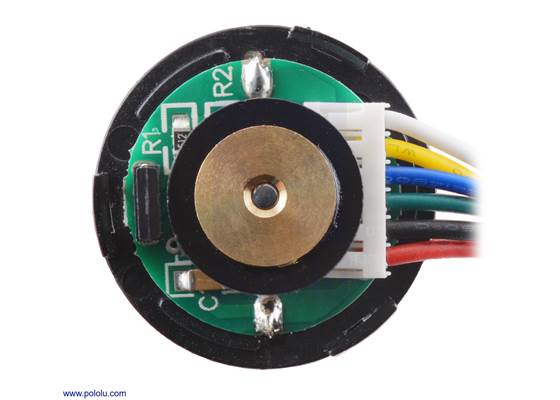

25D mm metal gearmotor with 48 CPR encoder (with end cap removed). (1)

The 25D and 37D mm metal gearmotors with encoders have cables that are terminated with a 6-pin, 0.1″-pitch female connector.

Using the encoder

A two-channel Hall effect encoder is used to sense the rotation of a magnetic disk on a rear protrusion of the motor shaft. The quadrature encoder provides a resolution of 48 counts per revolution of the motor shaft when counting both edges of both channels. To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48. The motor/encoder has six colour-coded, 8″ (20 cm) leads terminated by a 1×6 female header with a 0.1″ pitch, as shown in the main product picture. This header works with standard 0.1″ male headers and our male jumper and precrimped wires. If this header is not convenient for your application, you can pull the crimped wires out of the header or cut the header off. The following table describes the wire functions:

Colour Function
Red motor power (connects to one motor terminal)
Black motor power (connects to the other motor terminal)
Green encoder GND
Blue encoder Vcc (3.5 V to 20 V)
Yellow encoder A output
White encoder B output

The Hall sensor requires an input voltage, Vcc, between 3.5 and 20 V and draws a maximum of 10 mA. The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells you the speed of the motor, and the order of the transitions tells you the direction. The following oscilloscope capture shows the A and B (yellow and white) encoder outputs using a motor voltage of 6 V and a Hall sensor Vcc of 5 V:

Encoder A and B outputs for 25D mm HP 6V metal gearmotor with 48 CPR encoder (motor running at 6 V).

By counting both the rising and falling edges of both the A and B outputs, it is possible to get 48 counts per revolution of the motor shaft. Using just a single edge of one channel results in 12 counts per revolution of the motor shaft, so the frequency of the A output in the above oscilloscope capture is 12 times the motor rotation frequency.

Gearmotor accessories

The face plate has two mounting holes threaded for M3 screws. You can use our custom-designed 25D mm metal gearmotor bracket (shown in the picture below) to mount the gearmotor to your project via these mounting holes and the screws that come with the bracket.

Pololu 25D mm metal gearmotor bracket pair.

Pololu 25D mm gearmotor with encoder mounted to 25D mm bracket.

The 4 mm diameter gearbox output shaft works with Pololu multi-hub wheels as shown in the left picture below. That shaft also works with the Pololu universal aluminium mounting hub for 4mm shafts, which can be used to mount our larger Pololu wheels (60mm-, 70mm-, 80mm-, and 90mm-diameter) or custom wheels and mechanisms to the gearmotor’s output shaft as shown in the right picture below.

Pololu 80×10mm multi-hub wheel on a Pololu 25D mm metal gearmotor with encoder.

Pololu 60×8mm wheel with 4mm hub adaptor on Pololu 25D mm metal gearmotor with encoder.

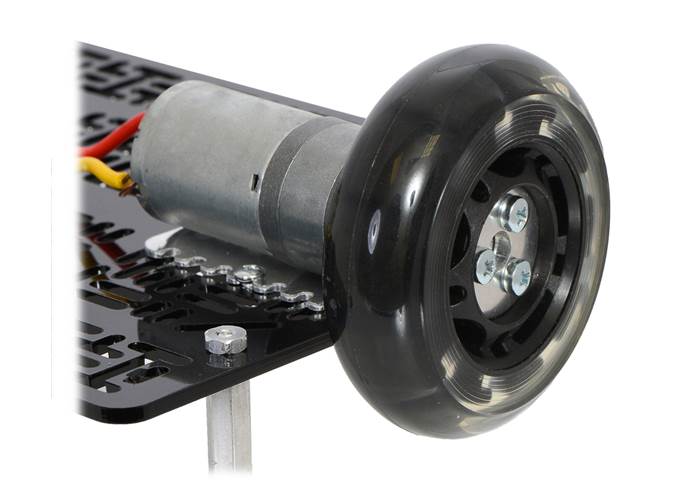

Alternatively, you could use our 4mm scooter wheel adaptor to mount many common scooter, skateboard, and inline skate wheels to the gearmotor’s output shaft as shown in the left picture below. For a general-purpose hex adaptor, consider our 12mm hex wheel adaptor, which lets you use this motor with many common hobby RC wheels as shown in the right picture below.

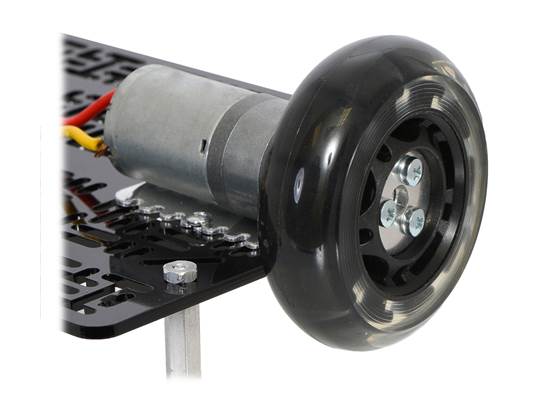

A 25D mm gearmotor with encoder connected to a scooter wheel by the 4mm scooter wheel adaptor.

12mm hex wheel adaptor for 4mm shaft on a 25D mm metal gearmotor with encoder.

These are the same type of motors used in the Wild Thumper all-terrain chassis, so the gearbox’s output shaft also works directly with the hex adapters included with the 120mm-diameter Wild Thumper wheels as shown in the image below:

Dagu Wild Thumper wheel 120×60mm (metallic red) and Pololu 25D mm metal gearmotor with encoder.

We have a number of motor drivers and motor controllers that work with these 25D mm metal gearmotors. For the LP and MP versions, we recommend our TB9051FTG-based drivers, for which we have a basic single carrier, a dual-channel shield for Arduino, and a dual-channel expansion board for Raspberry Pi. For the HP versions, we recommend our VNH5019-based motor drivers (available as single and dual carriers), though these can also be a good choice for the lower-power motors.

TB9051FTG Single Motor Driver Carrier.

Pololu dual VNH5019 motor driver shield for Arduino.

If you are looking for higher-level control interfaces, such as USB, RC, analogue voltages, I²C, or TTL serial, consider our Simple Motor Controllers, Jrk motor controllers, or RoboClaw motor controllers; these controllers are available in various power levels, and the appropriate one depends on the particular version of 25D mm motor you have (we generally recommend a motor controller that can handle continuous currents above the stall current of your motor).

High-Power Simple Motor Controller G2 18v15.

Jrk G2 21v3 USB Motor Controller with Feedback.

RoboClaw 2×7A Motor Controller (V5B) in its included case.

We have an assortment of Hall effect-based current sensors to choose from for those who need to monitor motor current:

ACS711EX current sensor carrier -15.5A to +15.5A.

ACS714 current sensor carrier -5A to +5A.

Selecting the right gearmotor

We offer a wide selection of metal gearmotors that offer different combinations of speed and torque. Our metal gearmotor comparison table can help you find the motor that best meets your project’s requirements.


Specifications

Dimensions

Size: 25D x 67L mm1
Weight: 101 g
Shaft diameter: 4 mm

General specifications

Gear ratio: 34.014:1
No-load speed @ 6V: 170 rpm
No-load current @ 6V: 250 mA
Stall current @ 6V: 2400 mA
Stall torque @ 6V: 50 oz·in
Motor type: 2.4A stall @ 6V (LP 6V)
Lead length: 8 in2
Encoders?: Y

Notes:

1
Length measurement is from gearbox face plate to back of encoder cap (it does not include the output shaft). See dimension diagram for details.
2
May vary by a few inches.

Resources

File downloads

Dimension diagram of the Pololu 25D Metal Gearmotors (171k pdf)
3D models of 25D mm gearmotors (9MB zip)
This file contains 3D models (in the step file format) of the 25D mm gearmotors with and without encoders.
Modifying the Wild Thumper to use motors with encoders (3MB pdf)

Customer Richard Nguyen has documented his work modifying the Wild Thumper chassis to use 25D motors with encoders in place of the chassis’s included motors.

Note: This is not an easy modification, and the chassis can be damaged if it is not done properly, so we generally recommend against it, and we can only provide very limited support for those who want to attempt it. The manufacturer did not intend for the chassis to be modified in this way, and we do not know how well such a modification will work out.

Recommended links

MATLAB script to plot motor performance curves for Pololu brushed DC gearmotors
This MATLAB script, written by Ali Asgher Mansoor Habiby, plots speed, power, current draw, and efficiency as they vary with torque when you input the gearmotor specifications. It also prints the resistance of the motor, and the current draw and torque at which maximum efficiency and maximum power occur.

FAQs

I need additional information about this motor; do you have a datasheet?

No; the information we have available for this motor can be found on its product page. However, you can approximate various additional motor parameters from the information found in the “Specs” tab.

The electrical resistance of the motor can be approximated by dividing the rated voltage by the stall current (at the rated voltage). The electromotive force constant (Ke) can be approximated by dividing the rated voltage by the free-run speed (at the rated voltage). To approximate the motor torque constant (Kt), you can divide the stall torque by the stall current.

For pretty much any DC motor, the current, speed, power, and efficiency curves as a function of torque will look like those in the graph below (assuming motor voltage and temperature are constant):

The current and speed curves are approximately linear, and the product pages for our motors provide the approximate end points for these lines: (0 torque, no-load current) and (stall torque, stall current) for the red line, and (0 torque, no-load speed) and (stall torque, 0 speed) for the blue line.

The orange output power curve is the product of the speed and the torque, which results in an inverted parabola with its peak at 50% of the stall torque.

The green efficiency curve is the output power divided by the input power, where the input power is current times voltage. The voltage is constant, so you can divide the output power curve by the current line to get the general shape of the efficiency curve, which in turn lets you identify the torque, speed, and current that correspond to max efficiency.

There are many programs out there that you can use to generate these curves. For example, if you have access to MATLAB, you can use this customer-created MATLAB script to generate these motor plots for you from the specifications we provide for each gearmotor.

Note: A good general rule of thumb is to keep the continuous load on a DC motor from exceeding approximately 20% to 30% of the stall torque. Stalling gearmotors can greatly decrease their lifetimes, occasionally resulting in immediate damage to the gearbox or thermal damage to the motor windings or brushes. Do not expect to be able to safely operate a brushed DC gearmotor all the way to stall. The safe operating range will depend on the specifics of the gearmotor itself.

What material is the gearbox output shaft made of, and can I get the shaft customised?
The shaft is composed of hardened stainless steel. Some customisation is generally possible (e.g., different length or no D-shaft) for sufficiently high-volume orders. If this is something you are interested in, please email us.
