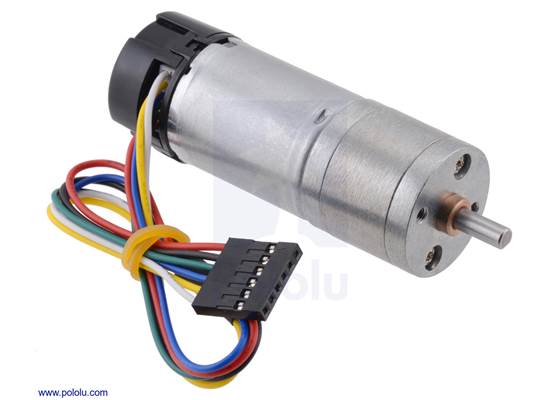

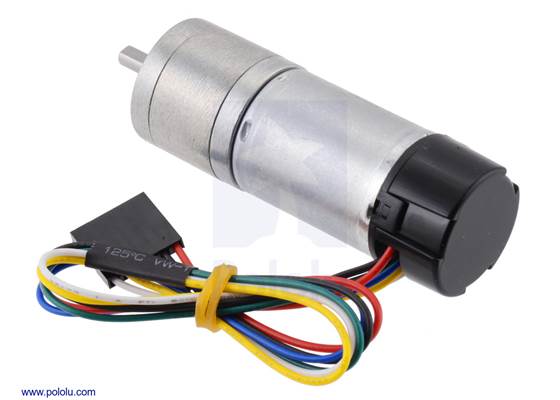

This gearmotor consists of a high-power, 6 V brushed DC motor combined with a 34.014:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 1632.67 counts per revolution of the gearbox’s output shaft.
We can ship 20 more in 7-10 days
Our Code: SKU-005613
Supplier Link: [Pololu MPN:4804]
These cylindrical brushed DC gearmotors are available in a wide range of gear ratios and with five different motors (two power levels of 6 V motors and three power levels of 12 V motors). The gearmotors all have the same 25 mm diameter case and 4 mm diameter gearbox output shaft, so it is generally easy to swap one version for another if your design requirements change (though the length of the gearbox tends to increase with the gear ratio). The motor and encoder portion is available by itself (no gearbox) for each combination of power level and nominal operating voltage, and versions without the encoder are also available. Please see the 25D metal gearmotor comparison table for detailed specifications of all our 25D metal gearmotors. This dynamically-sortable table can help you find the gearmotor that offers the best blend of speed, torque, and current-draw for your particular application. A more basic comparison table is available below:
@ Rated Voltage
@ Rated Voltage
@ Rated Voltage
|6.5 A||10,000 RPM||5 oz-in||1:1 HP 6V w/encoder|
|2150 RPM||20 oz-in||4.4:1 HP 6V w/encoder||4.4:1 HP 6V|
|990 RPM||39 oz-in||9.7:1 HP 6V w/encoder||9.7:1 HP 6V|
|460 RPM||75 oz-in||20.4:1 HP 6V w/encoder||20.4:1 HP 6V|
|280 RPM||90 oz-in||34:1 HP 6V w/encoder||34:1 HP 6V|
|200 RPM||115 oz-in||47:1 HP 6V w/encoder||47:1 HP 6V|
|130 RPM||150 oz-in||75:1 HP 6V w/encoder||75:1 HP 6V|
|97 RPM||210 oz-in||99:1 HP 6V w/encoder||99:1 HP 6V|
|56 RPM||350 oz-in||172:1 HP 6V w/encoder||172:1 HP 6V|
|2.4 A||6200 RPM||2 oz-in||1:1 LP 6V w/encoder|
|1300 RPM||8 oz-in||4.4:1 LP 6V w/encoder||4.4:1 LP 6V|
|590 RPM||17 oz-in||9.7:1 LP 6V w/encoder||9.7:1 LP 6V|
|290 RPM||33 oz-in||20.4:1 LP 6V w/encoder||20.4:1 LP 6V|
|170 RPM||50 oz-in||34:1 LP 6V w/encoder||34:1 LP 6V|
|120 RPM||65 oz-in||47:1 LP 6V w/encoder||47:1 LP 6V|
|78 RPM||95 oz-in||75:1 LP 6V w/encoder||75:1 LP 6V|
|58 RPM||130 oz-in||99:1 LP 6V w/encoder||99:1 LP 6V|
|34 RPM||200 oz-in||172:1 LP 6V w/encoder||172:1 LP 6V|
|25 RPM||220 oz-in||227:1 LP 6V w/encoder||227:1 LP 6V|
|15 RPM||300 oz-in||378:1 LP 6V w/encoder||378:1 LP 6V|
|11 RPM||400 oz-in||499:1 LP 6V w/encoder||499:1 LP 6V|
|5.6 A||10,200 RPM||5.5 oz-in||1:1 HP 12V w/encoder|
|2250 RPM||23 oz-in||4.4:1 HP 12V w/encoder||4.4:1 HP 12V|
|1030 RPM||44 oz-in||9.7:1 HP 12V w/encoder||9.7:1 HP 12V|
|500 RPM||85 oz-in||20.4:1 HP 12V w/encoder||20.4:1 HP 12V|
|290 RPM||120 oz-in||34:1 HP 12V w/encoder||34:1 HP 12V|
|210 RPM||165 oz-in||47:1 HP 12V w/encoder||47:1 HP 12V|
|130 RPM||240 oz-in||75:1 HP 12V w/encoder||75:1 HP 12V|
|100 RPM||300 oz-in||99:1 HP 12V w/encoder||99:1 HP 12V|
|2.1 A||7800 RPM||2.7 oz-in||1:1 MP 12V w/encoder|
|1700 RPM||11 oz-in||4.4:1 MP 12V w/encoder||4.4:1 MP 12V|
|770 RPM||22 oz-in||9.7:1 MP 12V w/encoder||9.7:1 MP 12V|
|370 RPM||42 oz-in||20.4:1 MP 12V w/encoder||20.4:1 MP 12V|
|220 RPM||63 oz-in||34:1 MP 12V w/encoder||34:1 MP 12V|
|160 RPM||85 oz-in||47:1 MP 12V w/encoder||47:1 MP 12V|
|100 RPM||125 oz-in||75:1 MP 12V w/encoder||75:1 MP 12V|
|76 RPM||165 oz-in||99:1 MP 12V w/encoder||99:1 MP 12V|
|43 RPM||250 oz-in||172:1 MP 12V w/encoder||172:1 MP 12V|
|33 RPM||320 oz-in||227:1 MP 12V w/encoder||227:1 MP 12V|
|1.1 A||5600 RPM||2 oz-in||1:1 LP 12V w/encoder|
|1200 RPM||8 oz-in||4.4:1 LP 12V w/encoder||4.4:1 LP 12V|
|560 RPM||15 oz-in||9.7:1 LP 12V w/encoder||9.7:1 LP 12V|
|260 RPM||29 oz-in||20.4:1 LP 12V w/encoder||20.4:1 LP 12V|
|150 RPM||43 oz-in||34:1 LP 12V w/encoder||34:1 LP 12V|
|110 RPM||60 oz-in||47:1 LP 12V w/encoder||47:1 LP 12V|
|71 RPM||85 oz-in||75:1 LP 12V w/encoder||75:1 LP 12V|
|55 RPM||115 oz-in||99:1 LP 12V w/encoder||99:1 LP 12V|
|31 RPM||180 oz-in||172:1 LP 12V w/encoder||172:1 LP 12V|
|23 RPM||240 oz-in||227:1 LP 12V w/encoder||227:1 LP 12V|
|14 RPM||320 oz-in||378:1 LP 12V w/encoder||378:1 LP 12V|
Note: Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. For these gearboxes, the recommended upper limit for instantaneous torque is 15 kg-cm (200 oz-in); . Stalls can also result in rapid (potentially on the order of a second) thermal damage to the motor windings and brushes, especially for the versions that use high-power (HP) motors; a general recommendation for brushed DC motor operation is 25% or less of the stall current.
In general, these kinds of motors can run at voltages above and below their nominal voltages (they can begin rotating at voltages as low as 1 V); lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.

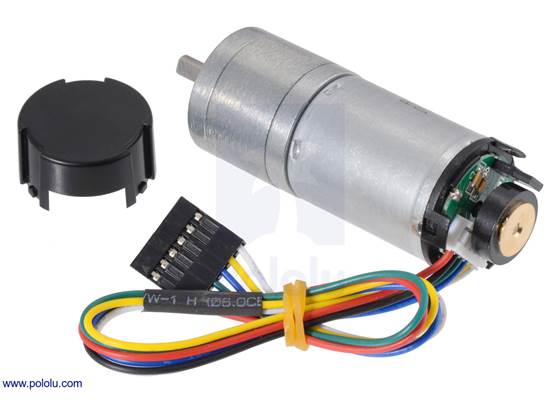

These gearmotors are functionally identical to the previous versions we carried without end caps (they use the same motor, encoder, and gearboxes). The black plastic end cap is easily removable if you need to access the encoder or want to slightly reduce the overall gearmotor size, but there is a little bit of base plastic that will remain, as shown in the picture below:
Exact gear ratio: ``(22×20×22×22×23) / (12×12×10×10×10) ~~ bb(34.014:1)``

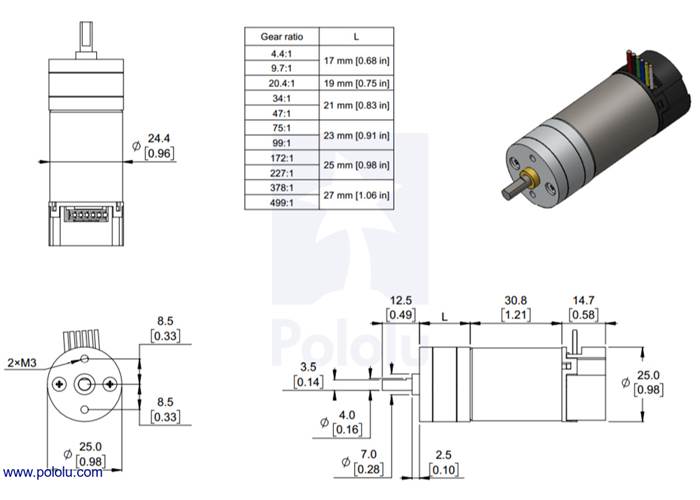

The diagram below shows the dimensions of the 25D mm line of gearmotors (units are mm over [inches]). This diagram is also available as a downloadable PDF (171k pdf).
Warning: Do not screw too far into the mounting holes as the screws can hit the gears. We recommend screwing no further than 6 mm (0.24″) into the screw hole.

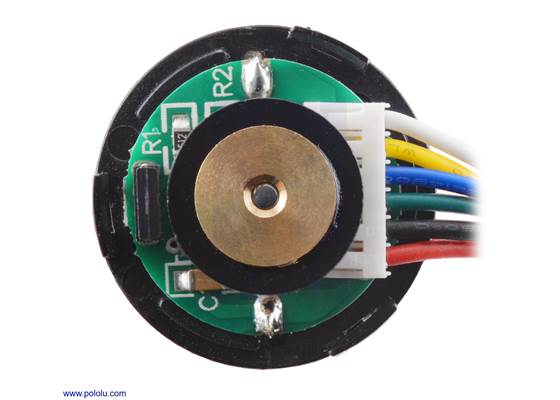

A two-channel Hall effect encoder is used to sense the rotation of a magnetic disk on a rear protrusion of the motor shaft. The quadrature encoder provides a resolution of 48 counts per revolution of the motor shaft when counting both edges of both channels. To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48. The motor/encoder has six colour-coded, 8″ (20 cm) leads terminated by a 1×6 female header with a 0.1″ pitch, as shown in the main product picture. This header works with standard 0.1″ male headers and our male jumper and precrimped wires. If this header is not convenient for your application, you can pull the crimped wires out of the header or cut the header off. The following table describes the wire functions:
|Red||motor power (connects to one motor terminal)|
|Black||motor power (connects to the other motor terminal)|
|Blue||encoder Vcc (3.5 V to 20 V)|
|Yellow||encoder A output|
|White||encoder B output|
The Hall sensor requires an input voltage, Vcc, between 3.5 and 20 V and draws a maximum of 10 mA. The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells you the speed of the motor, and the order of the transitions tells you the direction. The following oscilloscope capture shows the A and B (yellow and white) encoder outputs using a motor voltage of 6 V and a Hall sensor Vcc of 5 V:
Encoder A and B outputs for 25D mm HP 6V metal gearmotor with 48 CPR encoder (motor running at 6 V).
By counting both the rising and falling edges of both the A and B outputs, it is possible to get 48 counts per revolution of the motor shaft. Using just a single edge of one channel results in 12 counts per revolution of the motor shaft, so the frequency of the A output in the above oscilloscope capture is 12 times the motor rotation frequency.
The face plate has two mounting holes threaded for M3 screws. You can use our custom-designed 25D mm metal gearmotor bracket (shown in the picture below) to mount the gearmotor to your project via these mounting holes and the screws that come with the bracket.
The 4 mm diameter gearbox output shaft works with Pololu multi-hub wheels as shown in the left picture below. That shaft also works with the Pololu universal aluminium mounting hub for 4mm shafts, which can be used to mount our larger Pololu wheels (60mm-, 70mm-, 80mm-, and 90mm-diameter) or custom wheels and mechanisms to the gearmotor’s output shaft as shown in the right picture below.

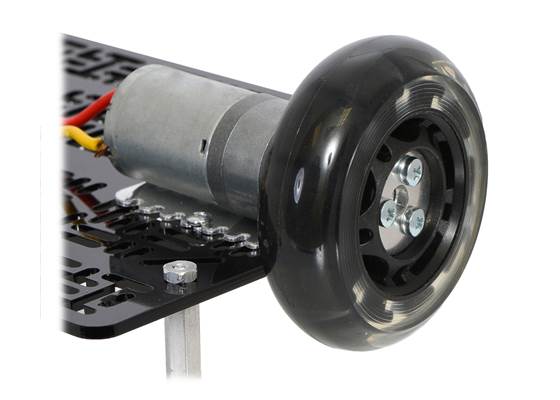

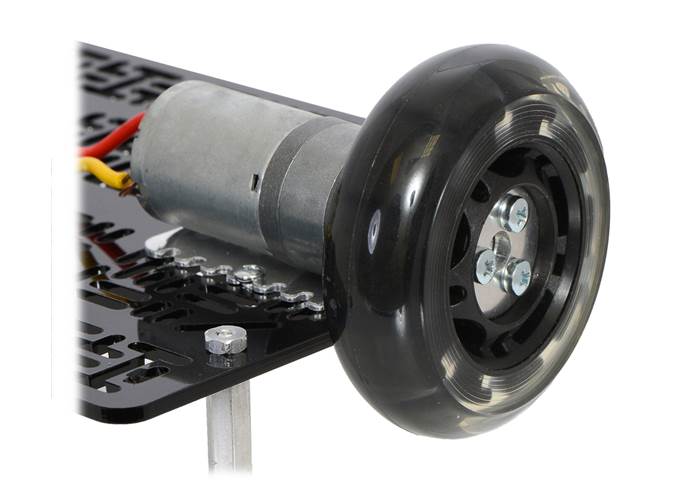

Alternatively, you could use our 4mm scooter wheel adaptor to mount many common scooter, skateboard, and inline skate wheels to the gearmotor’s output shaft as shown in the left picture below. For a general-purpose hex adaptor, consider our 12mm hex wheel adaptor, which lets you use this motor with many common hobby RC wheels as shown in the right picture below.
These are the same type of motors used in the Wild Thumper all-terrain chassis, so the gearbox’s output shaft also works directly with the hex adapters included with the 120mm-diameter Wild Thumper wheels as shown in the image below:
Dagu Wild Thumper wheel 120×60mm (metallic red) and Pololu 25D mm metal gearmotor with encoder.
We have a number of motor drivers and motor controllers that work with these 25D mm metal gearmotors. For the LP and MP versions, we recommend our TB9051FTG-based drivers, for which we have a basic single carrier, a dual-channel shield for Arduino, and a dual-channel expansion board for Raspberry Pi. For the HP versions, we recommend our VNH5019-based motor drivers (available as single and dual carriers), though these can also be a good choice for the lower-power motors.
If you are looking for higher-level control interfaces, such as USB, RC, analogue voltages, I²C, or TTL serial, consider our Simple Motor Controllers, Jrk motor controllers, or RoboClaw motor controllers; these controllers are available in various power levels, and the appropriate one depends on the particular version of 25D mm motor you have (we generally recommend a motor controller that can handle continuous currents above the stall current of your motor).
We have an assortment of Hall effect-based current sensors to choose from for those who need to monitor motor current:
We offer a wide selection of metal gearmotors that offer different combinations of speed and torque. Our metal gearmotor comparison table can help you find the motor that best meets your project’s requirements.
|Size:||25D x 67L mm1|
|Shaft diameter:||4 mm|
|No-load speed @ 6V:||280 rpm|
|No-load current @ 6V:||550 mA|
|Stall current @ 6V:||6500 mA|
|Stall torque @ 6V:||90 oz·in|
|Motor type:||6.5A stall @ 6V (HP 6V)|
|Lead length:||8 in2|
Note: This is not an easy modification, and the chassis can be damaged if it is not done properly, so we generally recommend against it, and we can only provide very limited support for those who want to attempt it. The manufacturer did not intend for the chassis to be modified in this way, and we do not know how well such a modification will work out.
No; the information we have available for this motor can be found on its product page. However, you can approximate various additional motor parameters from the information found in the “Specs” tab.
The electrical resistance of the motor can be approximated by dividing the rated voltage by the stall current (at the rated voltage). The electromotive force constant (Ke) can be approximated by dividing the rated voltage by the free-run speed (at the rated voltage). To approximate the motor torque constant (Kt), you can divide the stall torque by the stall current.
For pretty much any DC motor, the current, speed, power, and efficiency curves as a function of torque will look like those in the graph below (assuming motor voltage and temperature are constant):
The current and speed curves are approximately linear, and the product pages for our motors provide the approximate end points for these lines: (0 torque, no-load current) and (stall torque, stall current) for the red line, and (0 torque, no-load speed) and (stall torque, 0 speed) for the blue line.
The orange output power curve is the product of the speed and the torque, which results in an inverted parabola with its peak at 50% of the stall torque.
The green efficiency curve is the output power divided by the input power, where the input power is current times voltage. The voltage is constant, so you can divide the output power curve by the current line to get the general shape of the efficiency curve, which in turn lets you identify the torque, speed, and current that correspond to max efficiency.
There are many programs out there that you can use to generate these curves. For example, if you have access to MATLAB, you can use this customer-created MATLAB script to generate these motor plots for you from the specifications we provide for each gearmotor.
Note: A good general rule of thumb is to keep the continuous load on a DC motor from exceeding approximately 20% to 30% of the stall torque. Stalling gearmotors can greatly decrease their lifetimes, occasionally resulting in to the gearbox or thermal damage to the motor windings or brushes. Do not expect to be able to safely operate a brushed DC gearmotor all the way to stall. The safe operating range will depend on the specifics of the gearmotor itself.
