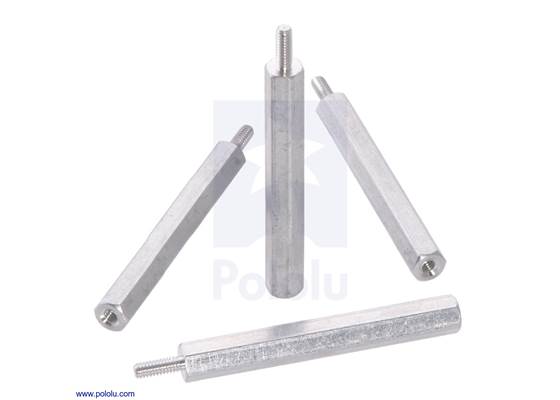

Aluminum Standoff: 1-1/2" Length, 2-56 Thread, M-F (4-Pack)

AUD $3.05

Order As Required

Back orders: Ship 121 units in 7 days

Our Code: SKU-004976

Supplier: [Pololu MPN:2009]

These hexagonal male-female aluminium standoffs keep parts spaced 1.5" (38 mm) apart and are great for building a multi-level robot chassis. Both ends of these 3/16" -wide standoffs have 2-56 threads. The standoffs are sold in packs of 4 .


Description

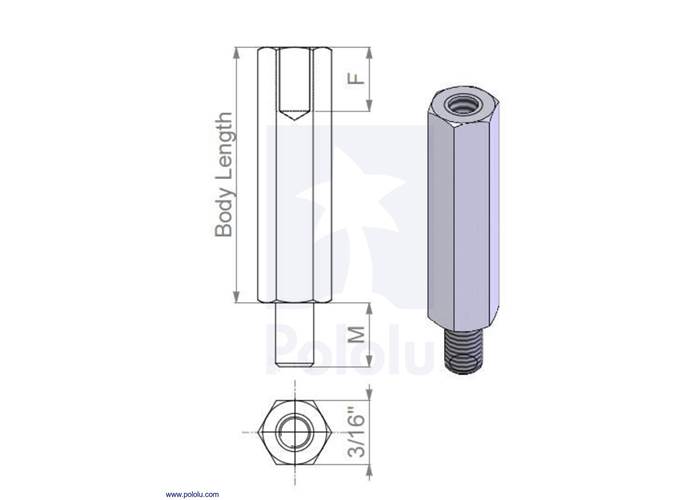

Mechanical drawing of male-female standoff.

Mechanical drawing of male-female standoff.

Overview

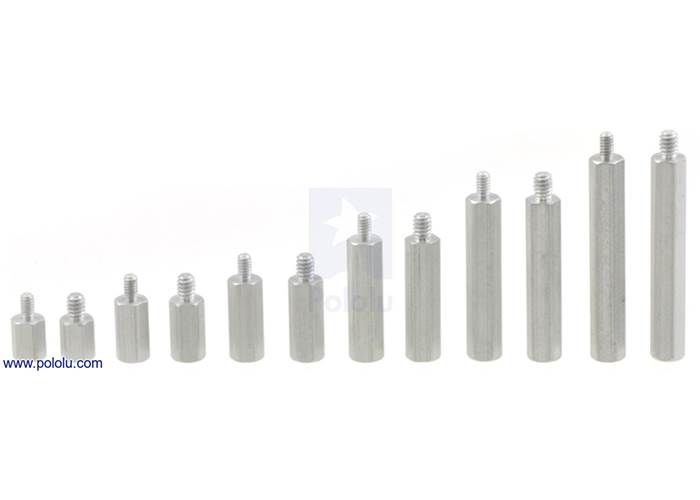

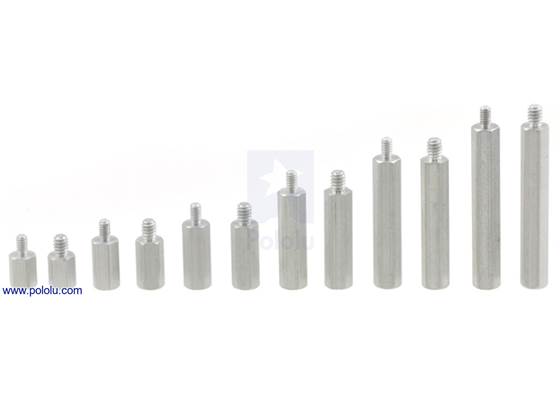

These M-F (male-female) aluminium standoffs are great for separating stacked components or chassis tiers. Each hexagonal standoff is 3/16″ wide with male threading extending 3/16″ to 1/4″ from one end (dimension M on the mechanical drawing to the right) and female threading to a depth of 3/16″ to 1/4″ in the other end (dimension F). A variety of lengths and thread types are available:

Body
Length
Thread Price per
4-pack
Body
Length
Thread Price per
4-pack
0.25″ #2-56 #4-40 $1.29 11 mm M2.5, 4mm $1.39
0.375″ #2-56 #4-40 $1.29 11 mm M2.5, 6mm $1.39
0.5″ #2-56 #4-40 $1.29 18.6 mm M2.5, 6mm $1.59
0.75″ #2-56 #4-40 $1.39
1.0″ #2-56 #4-40 $1.59
1.25″ #2-56 #4-40 $1.89
1.5″ #2-56 $2.19

The standoffs can be screwed together to make longer standoffs.

F-F (female-female) standoffs with threading running through the entire length of the body are also available:

Select variant

Several alternatives are available for this product. Select from the options below and click “Go” to find a particular version.

Close

Alternatives available with variations in these parameter(s): length thread type Select variant…

We carry a variety of 2-56 and 4-40 screws and hex nuts that can be used with these standoffs.


Specifications

Dimensions

Length: 1.5 in
Weight: 2 g1

General specifications

Gender: Male-Female
Thread type: 2-56

Notes:

1
Per standoff.
