Romi Encoder Pair Kit, 12 CPR, 3.5-18V

Add quadrature encoders to the mini plastic gearmotors on your Romi chassis with this kit that uses a magnetic disc and Hall effect sensors to provide 12 counts per revolution of the motor shaft.

AUD$ 11.95

In stock in Australia

We can ship 440 more in 7 days

Our Code: SKU-003756

Supplier Link: [Pololu MPN:3542]


Description

Overview

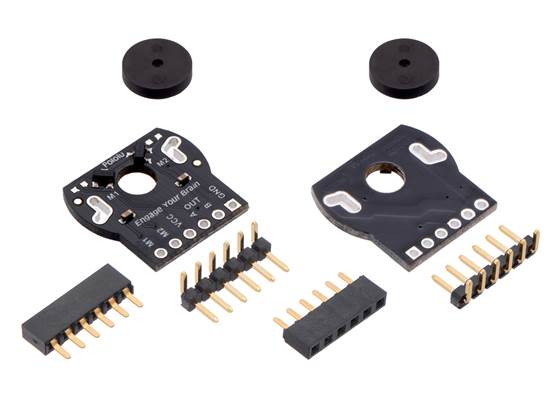

This kit includes two dual-channel Hall effect sensor boards and two 6-pole magnetic discs that can be used to add quadrature encoding to the mini plastic gearmotors on a Romi chassis. The encoder board senses the rotation of the magnetic disc and provides a resolution of 12 counts per revolution of the motor shaft when counting both edges of both channels, which corresponds to approximately 1440 counts per revolution of the Romi’s wheels.

This compact encoder solution fits within the 11.5 mm × 22.5 mm cross section of the rear of the motors on three of the four sides. The quarter side of the encoder has the signal and power connections, and it extends 7 mm past the edge of the motor so that it is at just the right height to be able to plug into a board mounted below on the Romi chassis when the included low-profile male and female header pins are used. The assembly does not extend past the end of the extended motor shaft, which protrudes 5 mm beyond the back of the motor.

Pinout and installation

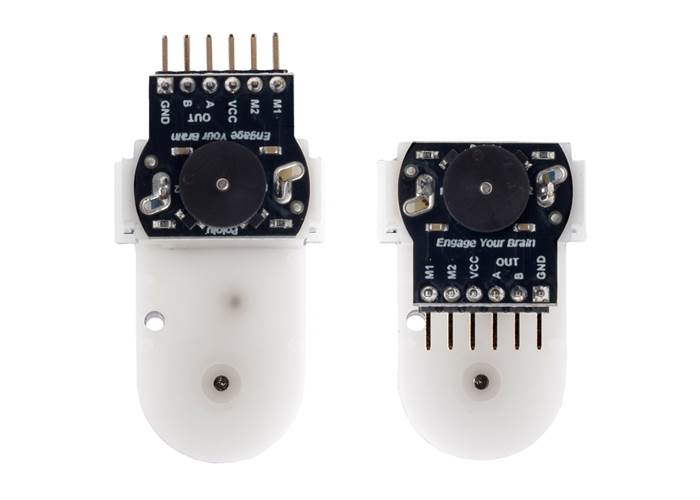

The encoder board is designed to be soldered directly to the back of the motor, with the back shaft of the motor protruding through the hole in the middle of the circuit board. One way to achieve good alignment between the board and the motor is to tack down the board to one motor pin and to solder the other pin only when the board is flat and well aligned. Be careful to avoid prolonged heating of the motor pins, which could deform the motor case or brushes.

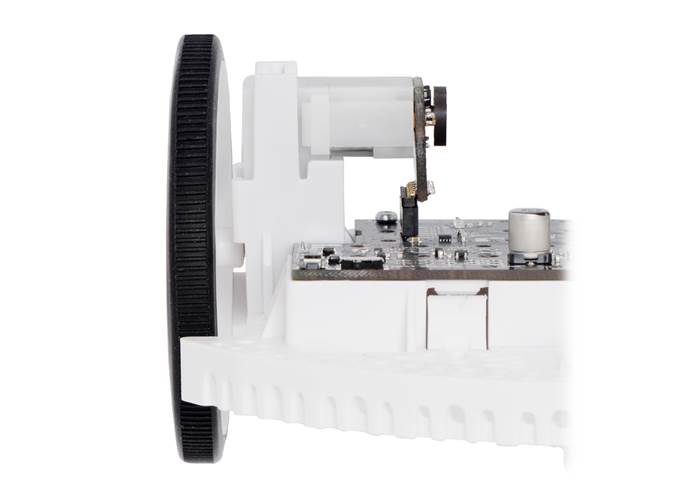

We currently do not have any boards for the Romi chassis that these encoders can just directly plug into, but when we do, the encoder and pins will need to be installed pointing down towards the chassis. For an immediate solution, it might be more convenient to install the board and pins facing up and connect to them with a cable made from our wires with pre-crimped terminals.

The included low-profile headers are still long enough to work with our pre-crimped jumper wires.

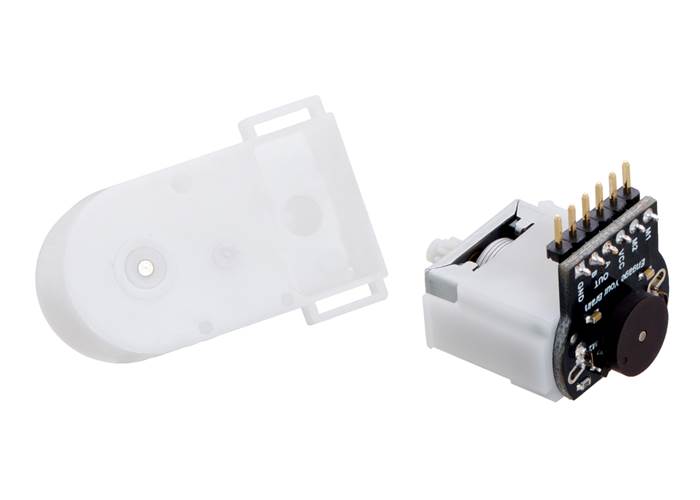

To later use the same encoders with a board that they can plug into, just pull the motor portion off of the gearbox, rotate it 180°, and push it back in to make the encoder and pins point down.

The motor can be removed from the gearbox even when the encoder is soldered to the motor.

The motor portion can be removed from the gearbox and rotated 180° to change whether the connector pins point up our down.

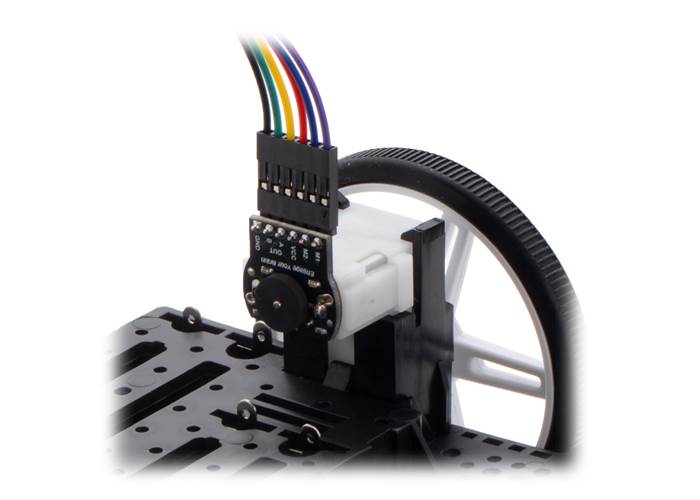

If you do not care about compatibility with potential future boards, we recommend soldering wires directly to the encoder or installing a standard-length male header that works better with cables made from our wires with pre-crimped terminals.

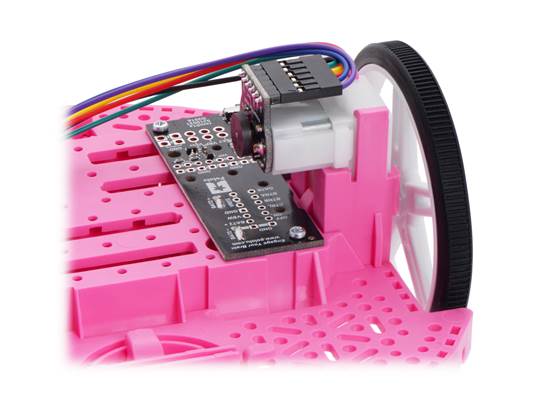

A standard-length straight 0.1″ male header allows for compact cable connection.

Once the board is soldered down to the two terminals, the motor leads are connected to the M1 and M2 pads along the edge of the board; the remaining four pads are used to power the sensors and access the two quadrature outputs:

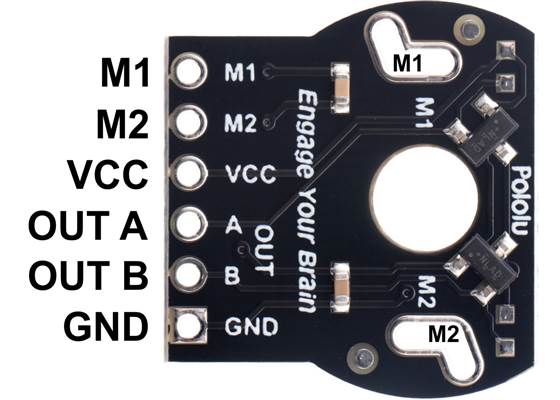

Romi Encoder Pair Kit, magnet-side view of PCB with labeled pinout.

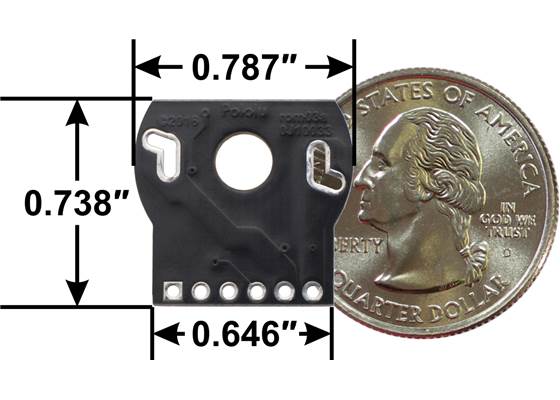

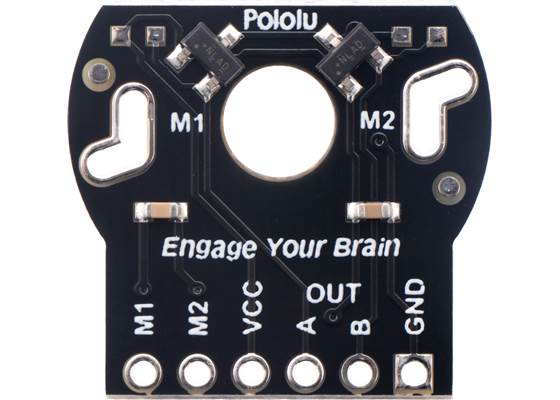

Romi Encoder Pair Kit, motor-side view of PCB with dimensions.

The sensors are powered through the VCC and GND pins. VCC can be 3.5 V to 18 V, and the quadrature outputs A and B are open-drain digital signals that need to be pulled up to the appropriate logic voltage of your system. The encoder boards have pads for optional 0603 size surface-mount resistors to pull the outputs up to VCC, but in typical applications, the pull-up resistors will be on the main electronics board.

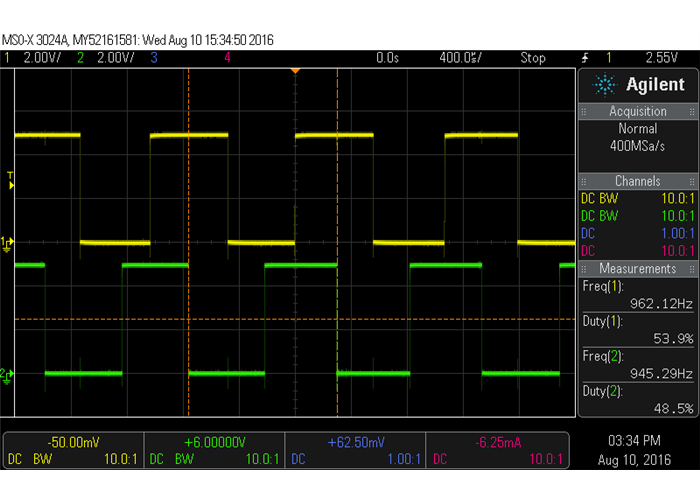

Encoder A and B outputs of a magnetic encoder on a high-power (HP) mini plastic gearmotor running at 4.5 V.

The board’s six pads have a 0.1″ (2.54 mm) pitch, so they are compatible with common 0.1″ connectors, or you can just solder individual wires directly to the board.

Once the board is soldered to the motor, the magnetic encoder disc can be pushed onto the motor shaft. One easy way to accomplish this is to press the motor onto the disc while it is sitting on a flat surface, pushing until the shaft makes contact with that surface. The size of the gap between the encoder disc and the sensor board does not have a big impact on performance as long as the motor shaft is at least all the way through the disc.

Schematic diagram

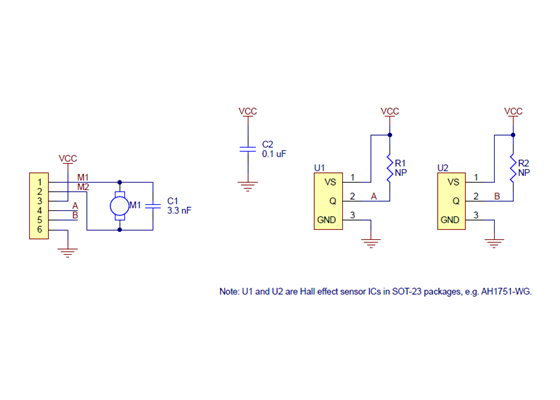

Schematic diagram for the Romi Encoder Pair Kit.

This schematic is also available as a downloadable pdf (84k pdf).


Specifications

Dimensions

Size: 20 mm × 18.7 mm1
Weight: 3.0 g2

General specifications

Minimum operating voltage: 3.5 V
Maximum operating voltage: 18 V

Identifying markings

PCB dev codes: rom03a
Other PCB markings: 0J10033

Notes:

1
The assembled encoder will extend 5 mm beyond the back of the motor (it fits entirely within the length of the extended motor shaft).
2
Combined weight of two encoder PCBs and two magnetic discs. Each encoder board weighs ~0.9 g and each magnet disc weighs ~0.6 g.
