Robot Arm Kit for Romi


Description

Overview

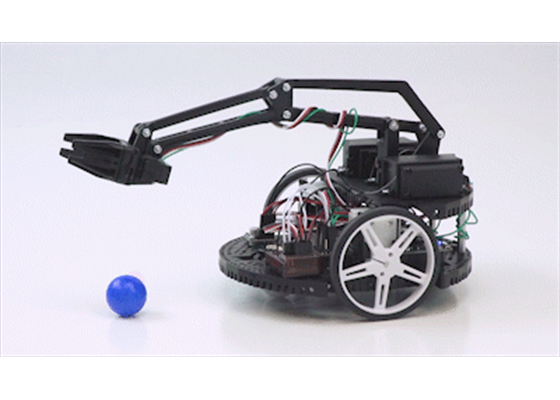

This Robot Arm Kit is an accessory for the Romi Chassis that allows it to manipulate small objects around it. The kit includes a micro gripper with paddles that can slide up to 32 mm apart, arm linkages for supporting the gripper, and a platform to mount everything to. The assembly is actuated by three included servos that are specially modified to provide access to their feedback potentiometers through a quarter (green) wire, which lets you detect if something is interfering with their ability to get to their commanded positions. This feedback also enables more complex closed-loop control of the arm from your main controller.

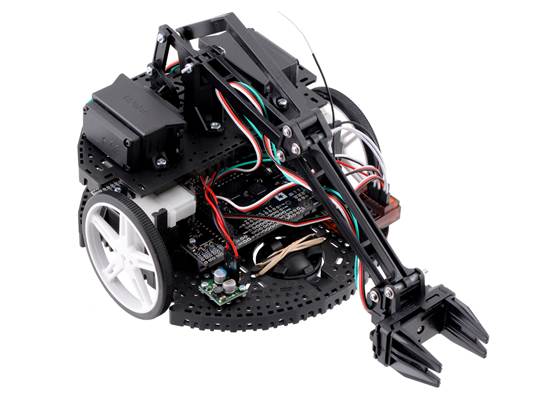

Side view of the Romi with Robot Arm and various electronics to enable RC control.

Side view of the Romi with Robot Arm and various electronics to enable RC control.

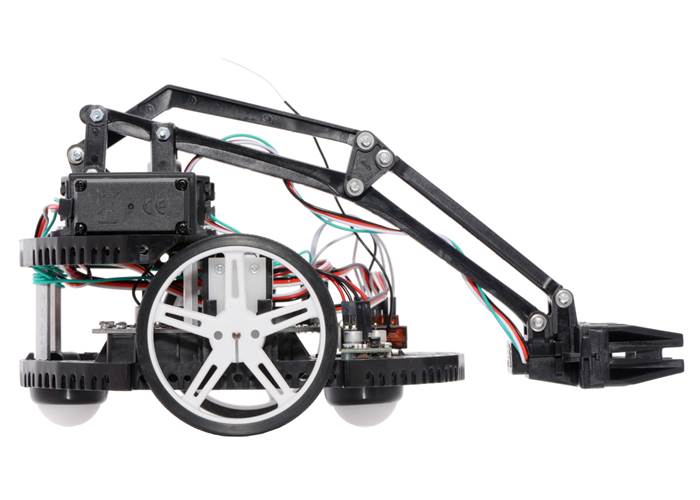

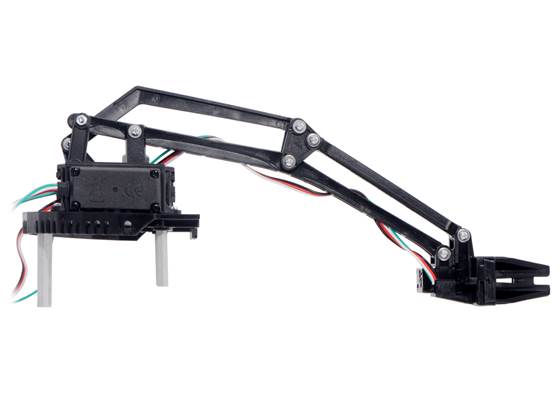

The Romi arm mounts on the rear half of the Romi chassis, just above the motors, using the included aluminium standoffs. Two standard-size servos sit at the base of the arm and control the height and tilt angle of the micro gripper while a micro servo is housed inside the gripper to actuate the paddles themselves. The larger lift and tilt servos can briefly draw up to around 1.8 A each when commanded to move abruptly, but the typical current draw should be under an amp each.

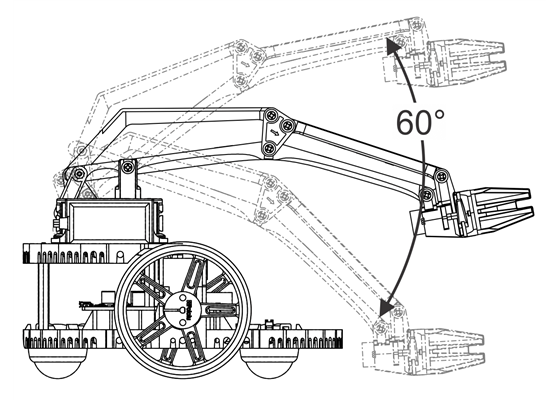

Range of motion of the height of the Robot Arm for Romi.

Range of motion of the height of the Robot Arm for Romi.

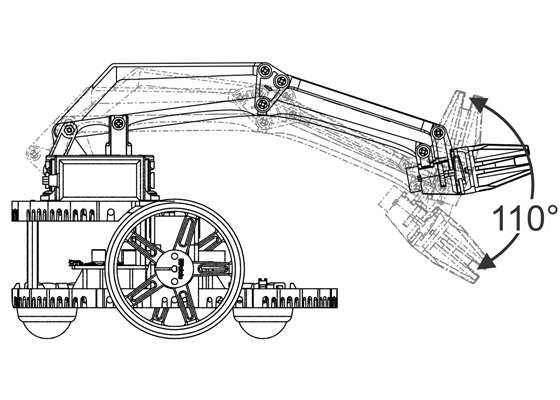

Range of motion of the wrist tilt on the Robot Arm for Romi.

Range of motion of the wrist tilt on the Robot Arm for Romi.

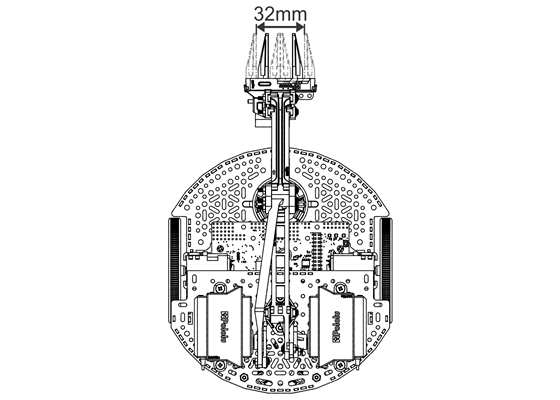

Range of motion of the gripper on the Robot Arm for Romi.

Range of motion of the gripper on the Robot Arm for Romi.

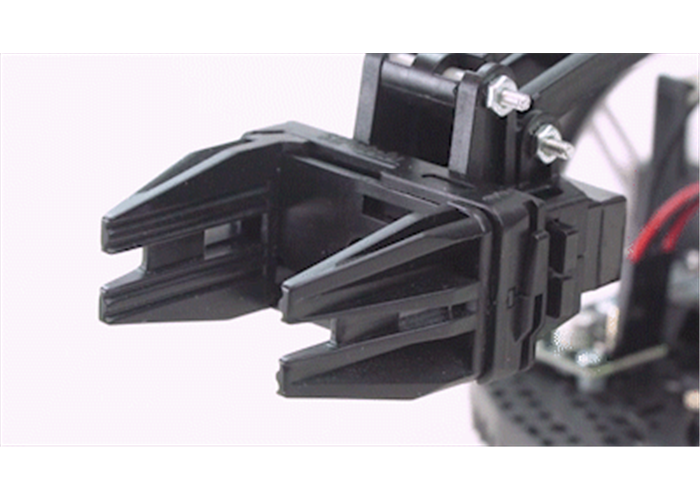

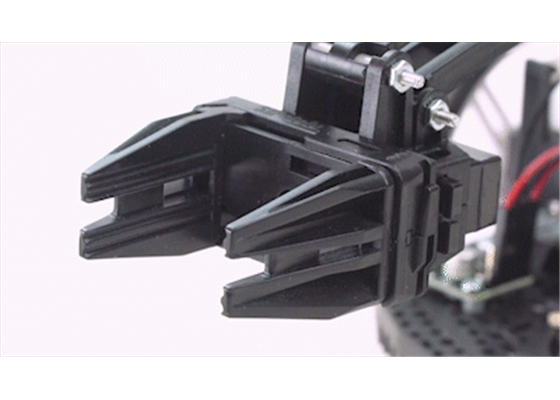

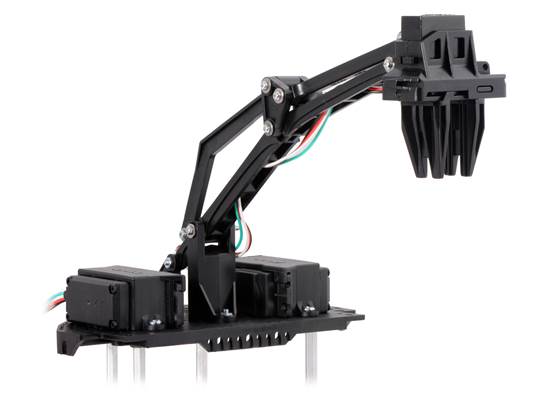

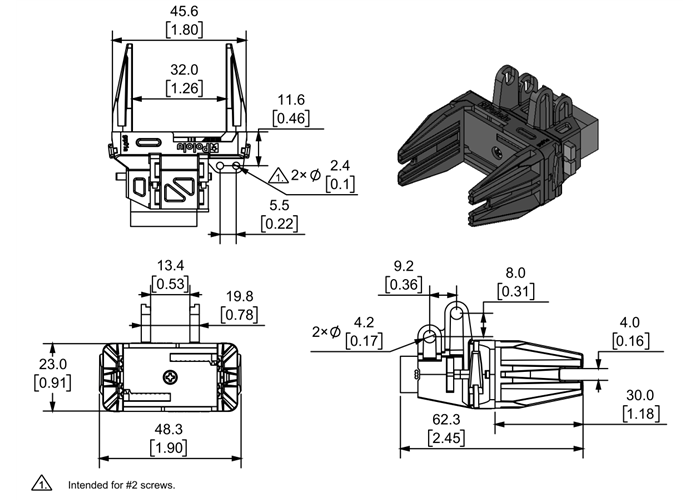

The gripper, which can be mounted to the end of the arm in either a horizontal (scoop) or vertical (crane) orientation, uses a rack and pinion design with the pinion gear mounted to the servo spline and opposing racks to keep the gripper paddles synchronised and parallel to each other throughout the range of motion.

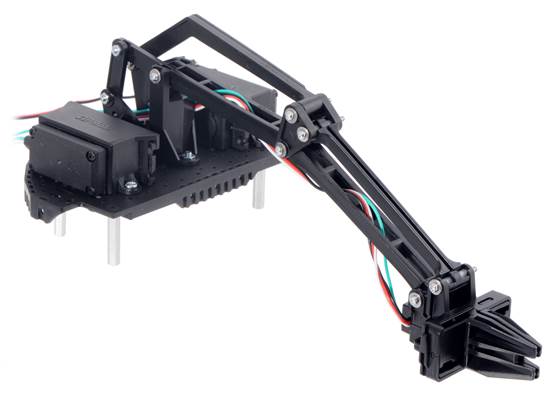

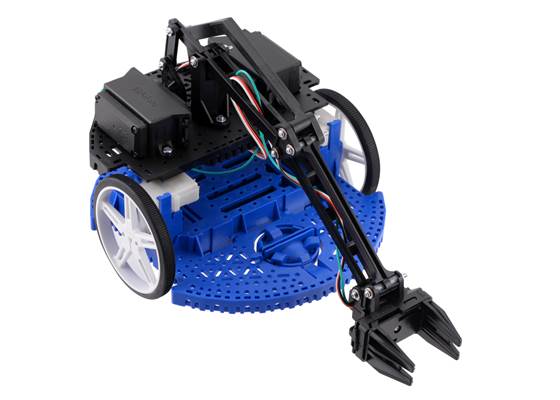

Romi arm with horizontal gripper orientation installed on a Romi.

Romi arm with horizontal gripper orientation installed on a Romi.

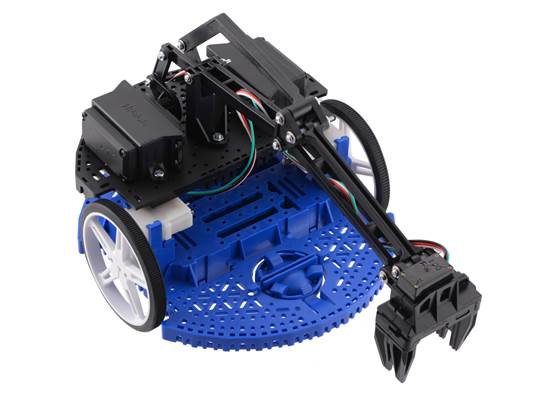

Romi arm with vertical gripper orientation installed on a Romi.

Romi arm with vertical gripper orientation installed on a Romi.

The maximum recommended payload of the arm is 3.5 oz (100 g), and the gripper can open to a maximum width of 32 mm. Please note that the full range of motion of the gripper servo requires pulses beween 0.5 ms (fully open) to 2.4 ms (fully closed), which well beyond the standard hobby servo range of 1 ms to 2 ms, so you should make sure your control electronics is capable of generating such signals if you care about getting the full range.

Note: Even though most of the arm’s weight is positioned in the back of the chassis, lifting objects will generally cause the Romi to tilt forward, so we strongly recommend adding a second ball castor to the optional ball castor spot on the front of the Romi. You can use a rubber band to stiffen the suspension of this ball castor if desired (see the user’s guide for more information). For assembly instructions and more details about using the Robot Arm for the Romi, see the Robot Arm for Romi User’s Guide

We are working on electronics to simplify integrating this arm into your Romi robot, but we did not want that to hold up releasing the arm itself for ambitious users with the skills to assemble their own electronics for powering and controlling the arm. For now, this accessory is intended for advanced users.

Kit contents

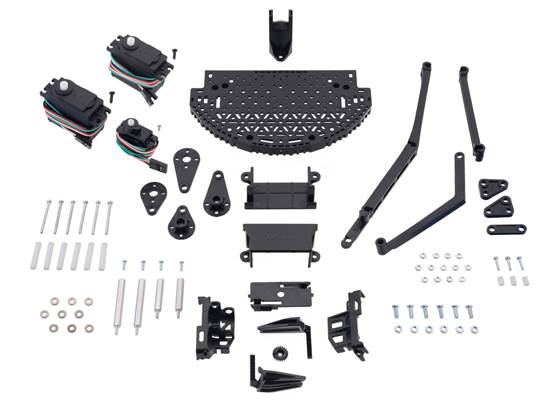

Contents of the Robot Arm Kit for Romi.

Contents of the Robot Arm Kit for Romi.


Specifications

Dimensions

Weight: 210 g

General specifications

Colour: black

Resources

Documentation and other information

User’s guide for the Robot Arm Kit for Romi

Assembly instructions and user’s manual for the Robot Arm Kit for Romi. (This also contains the assembly instructions for the Micro Gripper Kit, which is included as part of the Romi Arm Kit but is also a standalone product.)
