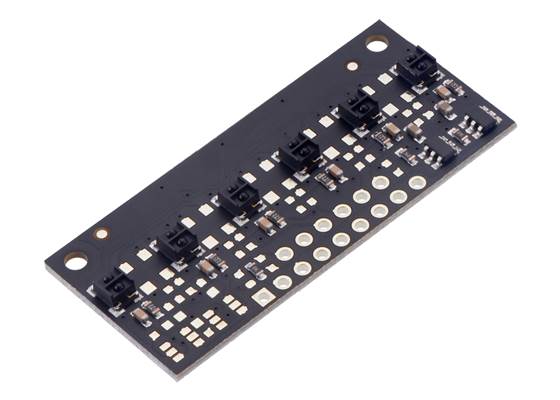

QTRX-MD-06RC Reflectance Sensor Array: 6-Channel, 8mm Pitch, RC Output, Low Current

AUD $8.95

Order As Required

Back orders: Ship 18 units in 7 days

Our Code: SKU-005032

Supplier: [Pololu MPN:4346]

pitch × sensors size (mm) output max current optimal range LED board 8 mm × 6 45.0 × 20.0 RC (digital) 3.5 mA 14 mA 10 mm This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection).


Description

Details for item #4346

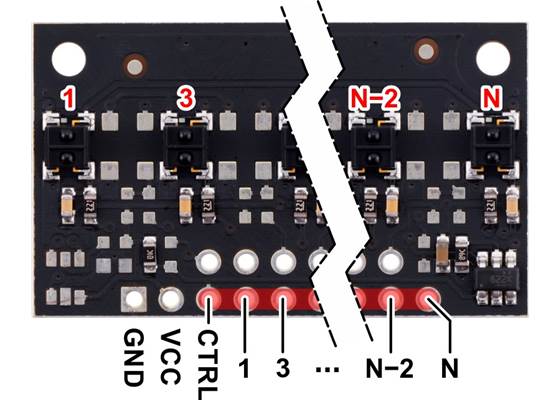

Pinout diagram of a QTRX-MD-xRC Reflectance Sensor Array.

Pinout diagram of a QTRX-MD-xRC Reflectance Sensor Array.

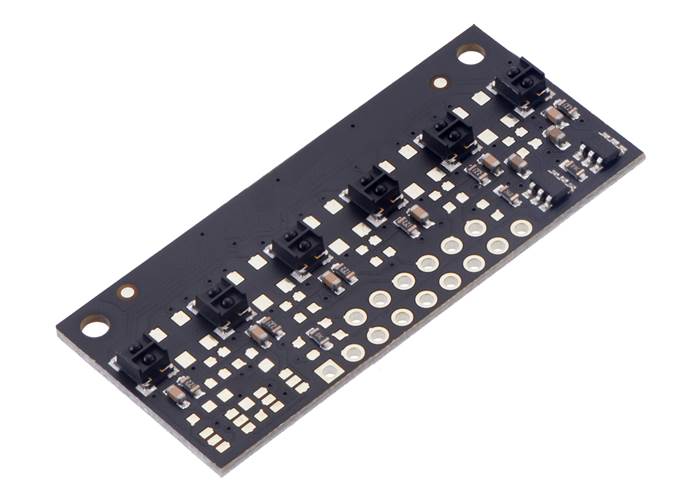

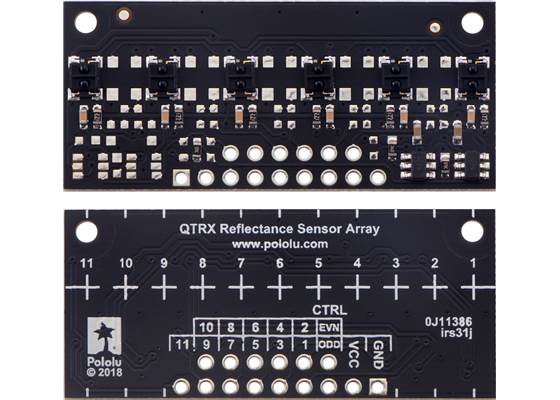

QTRX-MD-06RC Reflectance Sensor Array, front and back views.

QTRX-MD-06RC Reflectance Sensor Array, front and back views.

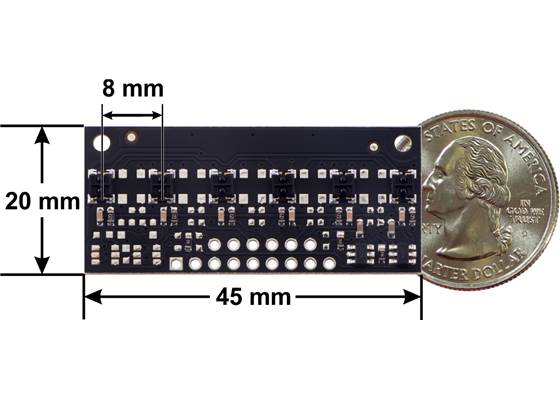

QTRX-MD-06RC Reflectance Sensor Array dimensions.

QTRX-MD-06RC Reflectance Sensor Array dimensions.

Specifications

  • Dimensions: 45.0 × 20.0 × 3.0 mm (see the dimension diagram (1MB pdf) for more details)
  • Operating voltage: 2.9 V to 5.5 V
  • Sensor type: QTRX
  • Sensor count: 6
  • Sensor pitch: 8 mm
  • Full-brightness LED current: 3.5 mA (independent of supply voltage)
  • Max board current: 14 mA
  • Output format: digital I/O-compatible signals that can be read in parallel as timed high pulses
  • Optimal sensing distance: 10 mm
  • Maximum recommended sensing distance: 40 mm
  • Weight: 2.3 g

All available QTR/QTRX versions with dimmable LEDs (older QTR sensors can be found here)

QTR sensors
2.9 V to 5.5 V; 30 mA max LED current(1); 5 mm optimal range
Board
width
Configuration Max board
current(2)
Max range Output
type
Name 1-piece
price
5.0 mm 1 sensor (HD)
32 mA 30 mm analogue QTR-HD-01A $1.79
RC (digital) QTR-HD-01RC
7.5 mm 1 sensor (MD)
32 mA 30 mm analogue QTR-MD-01A $1.61
RC (digital) QTR-MD-01RC
10.2 mm 4 mm × 2
32 mA 30 mm analogue QTR-HD-02A $2.12
RC (digital) QTR-HD-02RC
13.0 mm 8 mm × 2
32 mA 30 mm analogue QTR-MD-02A $2.18
RC (digital) QTR-MD-02RC
4 mm × 3
62 mA 30 mm analogue QTR-HD-03A $2.69
RC (digital) QTR-HD-03RC
17.0 mm 4 mm × 4
62 mA 40 mm analogue QTR-HD-04A $3.26
RC (digital) QTR-HD-04RC
21.0 mm 8 mm × 3
62 mA 30 mm analogue QTR-MD-03A $2.81
RC (digital) QTR-MD-03RC
4 mm × 5
93 mA 40 mm analogue QTR-HD-05A $4.26
RC (digital) QTR-HD-05RC
25.0 mm 4 mm × 6
93 mA 40 mm analogue QTR-HD-06A $4.83
RC (digital) QTR-HD-06RC
29.0 mm 8 mm × 4
62 mA 40 mm analogue QTR-MD-04A $3.44
RC (digital) QTR-MD-04RC
4 mm × 7
125 mA 40 mm analogue QTR-HD-07A $5.40
RC (digital) QTR-HD-07RC
37.0 mm 8 mm × 5
93 mA 40 mm analogue QTR-MD-05A $4.50
RC (digital) QTR-MD-05RC
4 mm × 9
155 mA 40 mm analogue QTR-HD-09A $6.97
RC (digital) QTR-HD-09RC
45.0 mm 8 mm × 6
93 mA 40 mm analogue QTR-MD-06A $5.13
RC (digital) QTR-MD-06RC
4 mm × 11
185 mA 40 mm analogue QTR-HD-11A $8.54
RC (digital) QTR-HD-11RC
61.0 mm 8 mm × 8
125 mA 40 mm analogue QTR-MD-08A $6.39
RC (digital) QTR-MD-08RC
4 mm × 15
250 mA 50 mm analogue QTR-HD-15A $10.82
RC (digital) QTR-HD-15RC
125.0 mm 4 mm × 31
495 mA 50 mm analogue QTR-HD-31A $21.66
RC (digital) QTR-HD-31RC
QTRX sensors
2.9 V to 5.5 V; 3.5 mA max LED current(1); 10 mm optimal range
Board
width
Configuration Max board
current(2)
Max range Output
type
Name 1-piece
price
5.0 mm 1 sensor (HD)
5 mA 30 mm analogue QTRX-HD-01A $2.17
RC (digital) QTRX-HD-01RC
7.5 mm 1 sensor (MD)
5 mA 30 mm analogue QTRX-MD-01A $1.99
RC (digital) QTRX-MD-01RC
10.2 mm 4 mm × 2
5 mA 30 mm analogue QTRX-HD-02A $2.88
RC (digital) QTRX-HD-02RC
13.0 mm 8 mm × 2
5 mA 30 mm analogue QTRX-MD-02A $2.94
RC (digital) QTRX-MD-02RC
4 mm × 3
9 mA 30 mm analogue QTRX-HD-03A $3.83
RC (digital) QTRX-HD-03RC
17.0 mm 4 mm × 4
9 mA 40 mm analogue QTRX-HD-04A $4.78
RC (digital) QTRX-HD-04RC
21.0 mm 8 mm × 3
9 mA 30 mm analogue QTRX-MD-03A $3.95
RC (digital) QTRX-MD-03RC
4 mm × 5
14 mA 40 mm analogue QTRX-HD-05A $6.16
RC (digital) QTRX-HD-05RC
25.0 mm 4 mm × 6
14 mA 40 mm analogue QTRX-HD-06A $7.11
RC (digital) QTRX-HD-06RC
29.0 mm 8 mm × 4
9 mA 40 mm analogue QTRX-MD-04A $4.96
RC (digital) QTRX-MD-04RC
4 mm × 7
17 mA 40 mm analogue QTRX-HD-07A $8.06
RC (digital) QTRX-HD-07RC
37.0 mm 8 mm × 5
14 mA 40 mm analogue QTRX-MD-05A $6.40
RC (digital) QTRX-MD-05RC
4 mm × 9
22 mA 40 mm analogue QTRX-HD-09A $10.39
RC (digital) QTRX-HD-09RC
45.0 mm 8 mm × 6
14 mA 40 mm analogue QTRX-MD-06A $7.41
RC (digital) QTRX-MD-06RC
4 mm × 11
26 mA 40 mm analogue QTRX-HD-11A $12.72
RC (digital) QTRX-HD-11RC
61.0 mm 8 mm × 8
17 mA 40 mm analogue QTRX-MD-08A $9.43
RC (digital) QTRX-MD-08RC
4 mm × 15
34 mA 50 mm analogue QTRX-HD-15A $16.52
RC (digital) QTRX-HD-15RC
125.0 mm 4 mm × 31
68 mA 50 mm analogue QTRX-HD-31A $33.44
RC (digital) QTRX-HD-31RC
QTRXL sensors
2.9 V to 5.5 V; 30 mA max LED current(1); 20 mm optimal range
Board
width
Configuration Max board
current(2)
Max range Output
type
Name 1-piece
price
5.0 mm 1 sensor (HD)
32 mA 80 mm analogue QTRXL-HD-01A $2.17
RC (digital) QTRXL-HD-01RC
7.5 mm 1 sensor (MD)
32 mA 80 mm analogue QTRXL-MD-01A $1.99
RC (digital) QTRXL-MD-01RC
1 Can be dynamically reduced to any of 32 available dimming levels.
2 With all LEDs on at max brightness setting.

QTR family overview

These reflectance sensors feature a linear array of infrared emitter/phototransistor pair modules in a high-density (4 mm pitch) or medium-density (8 mm pitch) arrangement, which makes them well suited for applications that require detection of changes in reflectivity. This change in reflectivity can be due to a colour change at a fixed distance, such as when sensing a black line on a white background, as well as due to a change in the distance to or presence of an object in front of the sensor. A variety of sensor counts and densities is available so you can pick the ideal arrangement for your application. Since the outputs are all independent, you can connect just some of the channels to attain an irregular or non-standard sensor spacing.

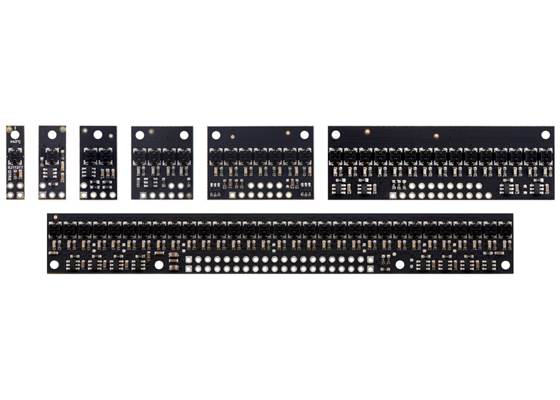

The QTR Reflectance Sensor Arrays are available in many different sizes.

The QTR Reflectance Sensor Arrays are available in many different sizes.

Unlike our original QTR sensor modules, these units have integrated LED drivers that provide brightness control independent of the supply voltage, which can be anywhere from 2.9 V to 5.5 V, while enabling optional dimming to any of 32 possible brightness settings. For high-density (HD) modules with five or more sensors, there are separate controls for the odd-numbered and even-numbered LEDs, which gives you extra options for detecting light reflected at various angles. See the “Emitter control” section below for more information on using this feature.

Two different sensor options are available, denoted by “QTR” or “QTRX” in the product name. The “QTR” versions feature lower-cost sensor modules without lenses while the “QTRX” versions feature higher-performance sensor modules with lenses, which allow similar performance at a much lower IR LED current. You can see the two different sensor styles in the pictures below of the 4-channel modules:

QTR-HD-04A Reflectance Sensor Array.

QTRX-HD-04RC Reflectance Sensor Array.

We also have several single-channel modules with the “QTRXL” designator that offer extra-long range by using the QTRX-style sensor module with higher current through the emitter.

Each sensor option is available in two output types: an “A” version with analogue voltage outputs between 0 V and VCC, and an “RC” version with outputs that can be read with a digital I/O line on a microcontroller by first setting the lines high and then releasing them and timing how long it takes them to read as low (typically anywhere from a few microseconds to a few milliseconds). The lower the output voltage or shorter the voltage decay time, the higher the reflectance. The following simplified schematic diagrams show the circuits for the individual channels:

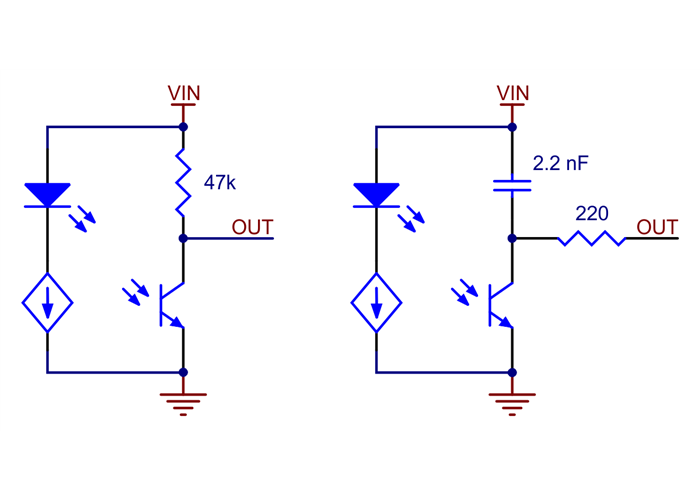

Schematic diagrams of individual QTR sensor channels for A version (left) and RC version (right).  This applies only to the newer QTRs with dimmable emitters.

Schematic diagrams of individual QTR sensor channels for A version (left) and RC version (right). This applies only to the newer QTRs with dimmable emitters.

Our Arduino library makes it easy to use these sensor modules with an Arduino or compatible controller by providing methods for controlling the emitters, calibrating the module, and reading the individual sensor values from either the A or RC versions. It also has a method specifically for line-following applications to compute the location of the line under the array.

Note: Unlike most of our products, these sensor arrays do not ship with any headers or connectors included, so you will need to supply your own or solder wires directly to the board to use it. See our selection of male headers, female headers, and pre-crimped wires for various connector options.

Interfacing with the outputs of the A versions

Each sensor on the A versions outputs its reflectance measurement as an analogue voltage that can range from 0 V when the reflectance is very strong to VCC when the reflectance is very weak. The typical sequence for reading a sensor is:

  • Use a microcontroller’s analogue-to-digital converter (ADC) to measure the voltages.
  • Use a comparator with an adjustable threshold to convert each analogue voltage into a digital (i.e. black/white) signal that can be read by the digital I/O line of a microcontroller.
  • Connect each output directly to a digital I/O line of a microcontroller and rely upon its logic threshold.

This last method will work if you are able to get high reflectance from your white surface as depicted in the left image, but will probably fail if you have a lower-reflectance signal profile like the one on the right.

QTR-1A output 1/8" away from a spinning white disk with a black line on it.

QTR-1A output 3/8" away from a spinning white disk with a black line on it.

Interfacing with the outputs of the RC versions

Each sensor on the RC versions requires a digital I/O line capable of driving the output line high and then measuring the time for the output voltage to decay. The typical sequence for reading a sensor is:

QTR-1RC output (yellow) when 1/8" above a black line and microcontroller timing of that output (blue).

QTR-1RC output (yellow) when 1/8" above a white surface and microcontroller timing of that output (blue).

  1. Turn on IR LEDs (optional).
  2. Set the I/O line to an output and drive it high.
  3. Allow at least 10 μs for the sensor output to rise.
  4. Make the I/O line an input (high impedance).
  5. Measure the time for the voltage to decay by waiting for the I/O line to go low.
  6. Turn off IR LEDs (optional).

These steps can typically be executed in parallel on multiple I/O lines.

With a strong reflectance, the decay time can be as low as a few microseconds; with no reflectance, the decay time can be up to a few milliseconds. The exact time of the decay depends on your microcontroller’s I/O line characteristics. Meaningful results can be available within 1 ms in typical cases (i.e. when not trying to measure subtle differences in low-reflectance scenarios), allowing up to 1 kHz sampling of all sensors. If lower-frequency sampling is sufficient, you can achieve substantial power savings by turning off the LEDs. For example, if a 100 Hz sampling rate is acceptable, the LEDs can be off 90% of the time, lowering average current consumption from 125 mA to 13 mA.

Emitter control

These reflectance sensor arrays maintain a constant current through their IR emitters, keeping the emitters’ brightness constant, independent of the supply voltage (2.9 V to 5.5 V). The emitters can be controlled with the board’s CTRL pins, and the details of the control depends on the array size and density:

  • Units with five or more sensors in a high-density (HD) arrangement have two emitter control pins: CTRL ODD and CTRL EVEN. By default, these are connected together with a 1 kΩ resistor and pulled up, turning on all the emitters by default and allowing them to be controlled with a signal on either pin, but the CTRL ODD and CTRL EVEN pins can be driven separately for independent control of the odd-numbered and even-numbered emitters.
  • Units with three or more sensors in a medium-density (MD) arrangement also have two emitter control pins since these are made by only populating every other sensor on an HD board, but only the CTRL ODD pin will have an effect on these versions (it is not possible to independently control alternate emitters).
  • Units with four or fewer sensors have a single CTRL pin that controls all of the emitters.

Driving a CTRL pin low for at least 1 ms turns off the associated emitter LEDs, while driving it high (or allowing the board to pull it high) turns on the emitters with the board’s default (full) current, which is 30 mA for “QTR” versions and 3.5 mA for “QTRX” versions. For more advanced use, the CTRL pin can be pulsed low to cycle the associated emitters through 32 dimming levels.

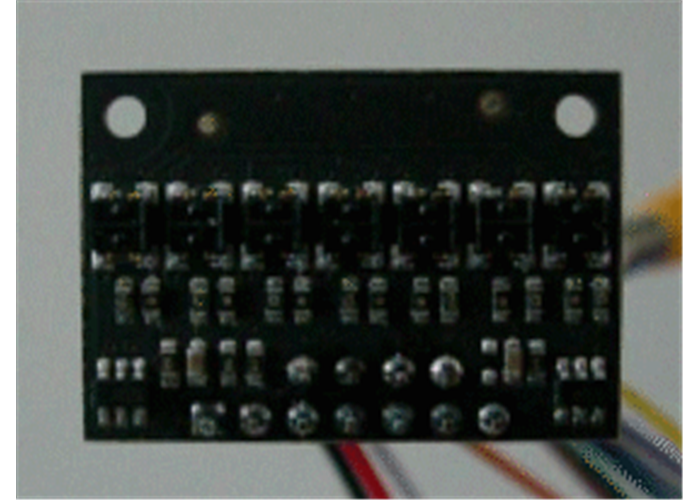

Demo of IR LED dimming and independent even/odd control on the QTR-HD-07x (as seen through an old digital camera that can see IR).

Demo of IR LED dimming and independent even/odd control on the QTRX-HD-07x (as seen through an old digital camera that can see IR).

Demo of IR LED dimming and independent even/odd control on the QTRX-HD-07x (as seen through an old digital camera that can see IR).

To send a pulse, you should drive the CTRL pin low for at least 0.5 μs (but no more than 300 μs), then high for at least 0.5 μs; (it should remain high after the last pulse). Each pulse causes the driver to advance to the next dimming level, wrapping around to 100% after the lowest-current level. Each dimming level corresponds to a 3.33% reduction in current, except for the last three levels, which represent a 1.67% reduction, as shown in the table below. Note that turning the LEDs off with a >1 ms pulse and then back on resets them to full current.

Dimming
level
(pulses)
Emitter
current
(%)
Dimming
level
(pulses)
Emitter
current
(%)
0 100.00% 16 46.67%
1 96.67% 17 43.33%
2 93.33% 18 40.00%
3 90.00% 19 36.67%
4 86.67% 20 33.33%
5 83.33% 21 30.00%
6 80.00% 22 26.67%
7 76.67% 23 23.33%
8 73.33% 24 20.00%
9 70.00% 25 16.67%
10 66.67% 26 13.33%
11 63.33% 27 10.00%
12 60.00% 28 6.67%
13 56.67% 29 5.00%
14 53.33% 30 3.33%
15 50.00% 31 1.67%

For example, to reduce the emitter current to 50%, you would apply 15 low pulses to the CTRL pin and then keep it high after the last pulse.


Specifications

Dimensions

Size: 45.0 × 20.0 × 3.0 mm
Weight: 2.3 g

General specifications

Maximum range: 40 mm
Optimal range: 10 mm
Minimum operating voltage: 2.9 V
Maximum operating voltage: 5.5 V
LED current: 3.5 mA1
Peak wavelength: 940 nm
Maximum current draw: 14 mA2
Sensor type: QTRX
Sensor pitch: 8.0 mm
Sensor count: 6
Output type: RC (measurable by digital I/O)

Identifying markings

PCB dev codes: irs31j3
Other PCB markings: 0J113863

Notes:

1
Can be dynamically reduced to any of 32 available dimming levels.
2
With all LEDs on at max brightness setting.
3
Note: this does not differentiate between the A and RC output types.

Resources

Documentation and other information

Arduino Library for the Pololu QTR Reflectance Sensors (Printable PDF)

This guide explains how to use the QTRSensors library to read Pololu QTR sensors with an Arduino or A-Star 32U4 controller.


File downloads

Schematic diagrams of the QTR/QTRX-HD Reflectance Sensor Arrays (206k pdf)
Dimension diagrams of the QTR/QTRX Reflectance Sensor Arrays (1MB pdf)
3D models (STEP) of the QTR/QTRX Reflectance Sensor Arrays (34MB zip)
This file contains 3D models (in the step file format) of the QTR and QTRX Reflectance Sensor Arrays.
Drill guides (DXF) for the QTR/QTRX Reflectance Sensor Arrays (55k zip)
These DXF drawings show the locations of all of the holes on the QTR and QTRX Reflectance Sensor Arrays.
