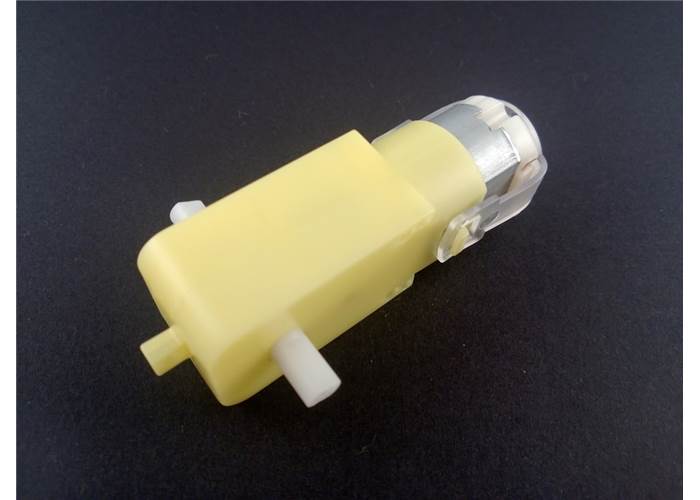

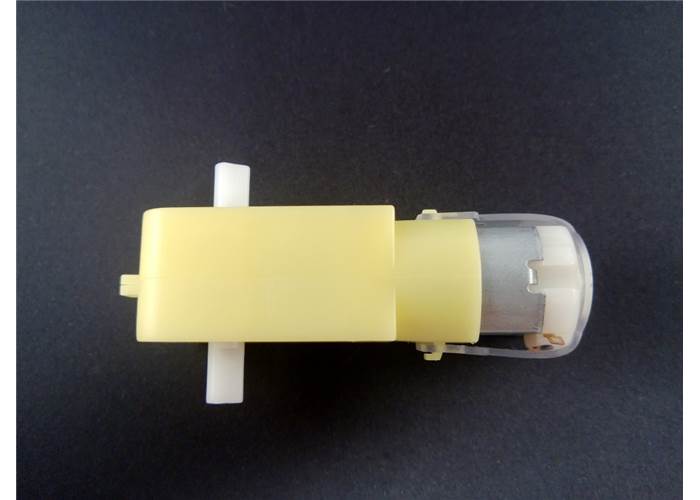

48:1 Gear Motor with two 90 deg outputs (PAIR)

This pair of 48:1 gear motors (gearbox with motor) have low-current motors that provide power and speed that is comparable to an RC servo at a fraction of the cost. Designed to work with our plastic wheels. ** Sold as a pair **

AUD$ 9.95

In stock in Australia

Shipping from $7.90

+lots more from our supplier in 3 weeks

Our Code: MEC-030218

Overview

This motor is a low cost drive system for robots and other robotics applications. The hobby DC motor has a wide operating voltage and the two output shafts allow for wheel and encoder mounting. Supplied as a pair of motors.

These gearboxes fit nicely with our plastic & rubber wheels and we also stock plastic gearmotor brackets to fit.

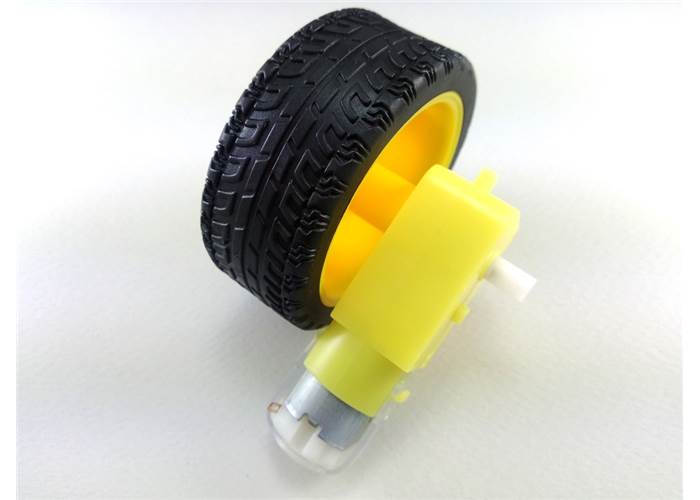

Plastic Gearmotor with 90 output - wheel mounted



Note: these motor shafts are not compatible with Solarbotics wheels and mounts (GMW).

Specifications

These are approximate specifications:

  • Suggested Voltage:4.5V DC , work fine from 3-6V
  • No load Speed:90±10rpm
  • No Load Current:190mA(max.250mA)
  • Torque:800gf.cm min

Dimensions

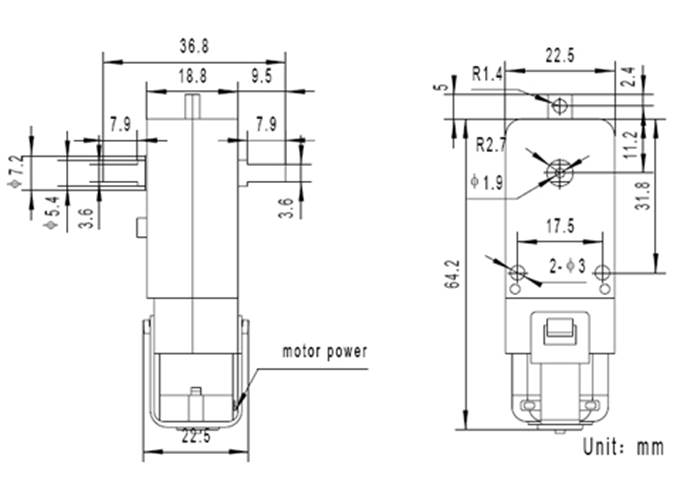

Gearmotor Dimensions
