DC Barrel Plug to 2-Pin Terminal Block Adapter

This connector adapts a 5.5 × 2.1 mm DC barrel plug to a pair of screw terminals spaced approximately 5 mm (0.2″) apart. The terminals are labelled positive and negative, with the positive terminal connected to the centre contact.

AUD$ 2.95

Out of Local Stock

We can ship 324 more in 7 days

Our Code: SKU-003237

Supplier Link: [Pololu MPN:2448]


Description

Most sources refer to this style of connector as “male”, but since it has a female basket at its centre, some will refer to it as “female”. Please look at the product photos carefully to make sure this is the connector you are looking for. This connector is compatible with our DC barrel jack to 2-pin terminal block adaptor and our PCB-mountable barrel jack.

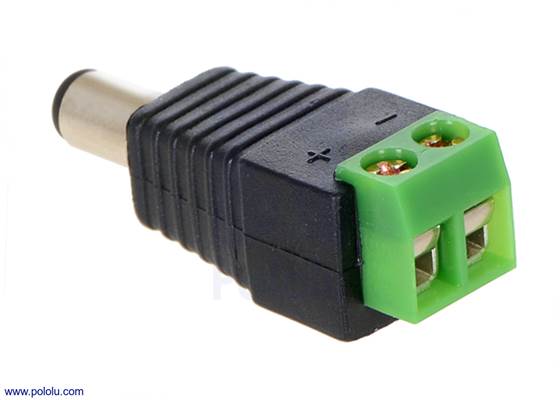

DC barrel plug to 2-pin terminal block adapter (1)

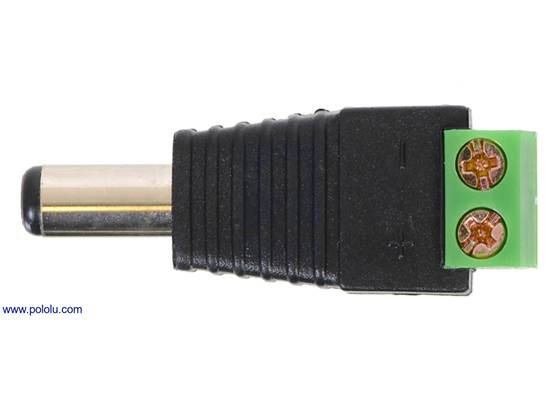

DC barrel plug to 2-pin terminal block adapter (2) (2)

Note: The positive and negative markings on the terminal block side correspond to a centre-positive barrel plug (the side labelled “+” connects to the centre of the barrel plug and the side labelled “-” connects to the outside); you can flip the connections to make a centre-negative plug.
