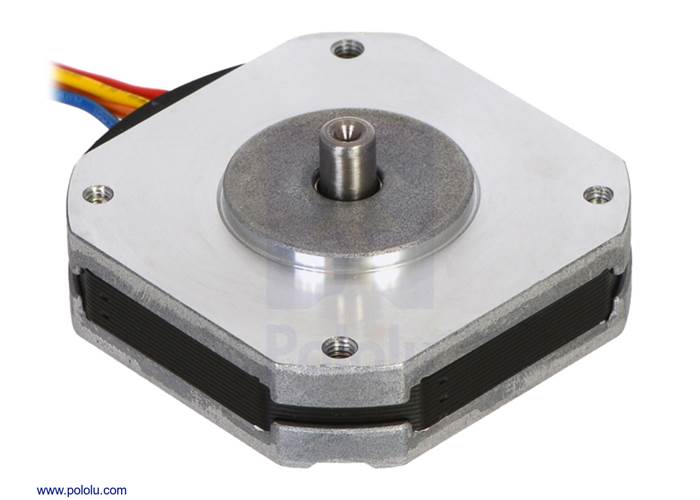

This NEMA 17-size pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). It offers a holding torque of 850 g-cm (12 oz-in), and each phase draws 1 A at 3.5 V.
Special Order
Shipping from $9.90
+129 more from our supplier in 7-10 days
Our Code: SKU-003156
Supplier Link: [Pololu MPN:2298]
This NEMA 17-size pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). It offers a holding torque of 850 g-cm (12 oz-in), and each phase draws 1 A at 3.5 V. This stepper motor’s flat profile (18.6 mm including the shaft) allows it to be used in places where more traditional stepper motors would be too bulky.

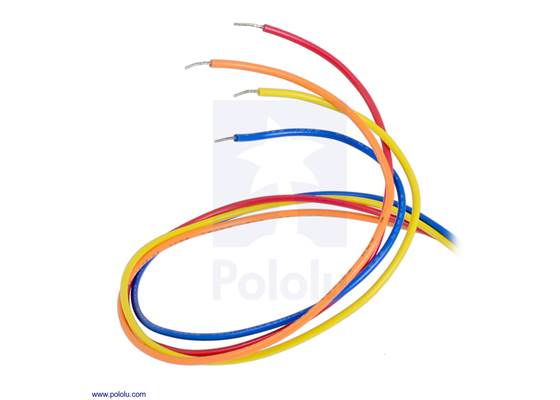

Bipolar stepper motor wires are terminated with bare leads.
 |

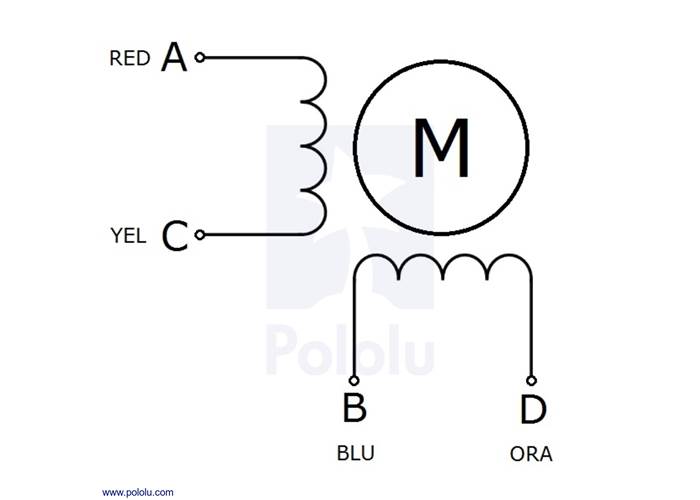

Sanyo bipolar stepper motor wiring diagram. |
|---|
This pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 3.5 V, allowing for a holding torque of 850 g-cm (12 oz-in). The motor has four colour-coded wires terminated with bare leads: red and yellow connect to one coil; orange and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but we recommend using a bipolar stepper motor driver or one of our Tic Stepper Motor Controllers. In particular, the Tics make control easy because they support six different interfaces (USB, TTL serial, I²C, RC, analogue voltages, and quadrature encoder) and are configurable over USB with our free configuration utility.
Our 5 mm universal mounting hub can be used to mount objects on the stepper motor’s 5 mm-diameter output shaft, and our NEMA 17 aluminium bracket offers a variety of options for mounting this stepper motor in your project.
This stepper motor is also available with a high-resolution quadrature encoder.
More specifications can be found in the datasheet (385k pdf).

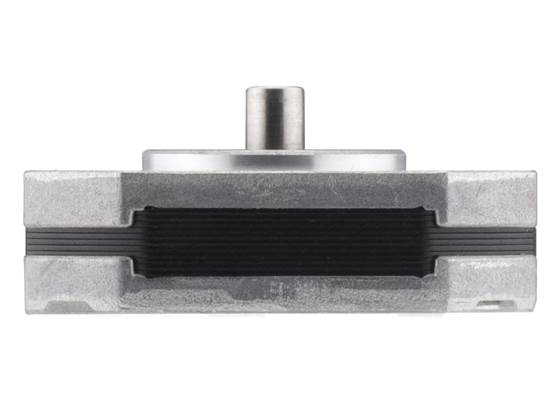

Side view of the 42×11.6mm Sanyo pancake stepper motor.

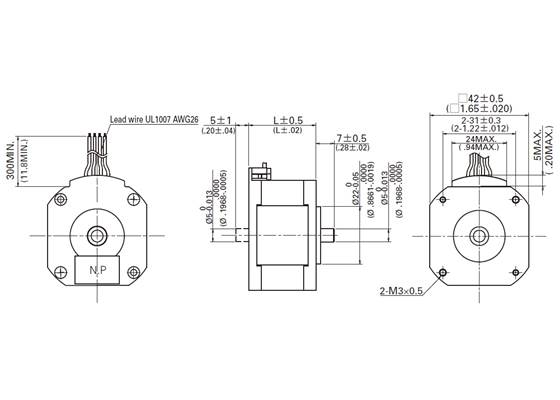

The following diagram shows the stepper motor dimensions in mm. The dimension labelled “L” is 11.6 mm. This stepper motor has a single output shaft with a length of 5 mm from the mounting face and a diameter of 5 mm. This shaft works with our 5 mm universal mounting hub.
 |
We also carry a stronger, taller version of this stepper motor where “L” in the above diagram is 18.6 mm and all other dimensions are the same.

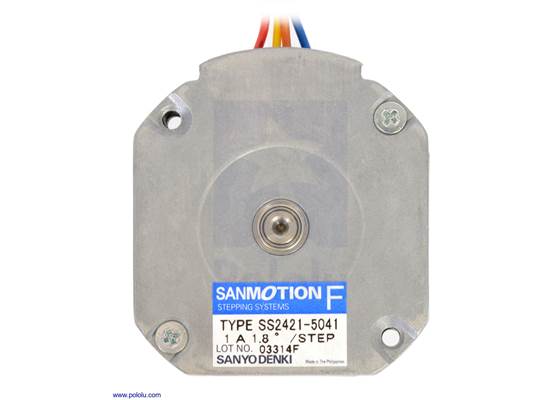

Bottom view of the 42×11.6mm Sanyo pancake stepper motor.
Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:
 |

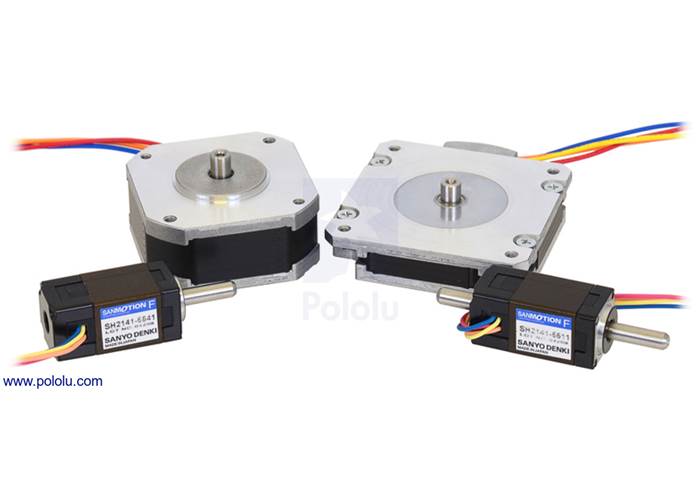

Sanyo stepper motors; from left to right: 14mm single shaft, 42×18.6mm, 50×11mm, 14mm double shaft |
|---|
Note: Sanyo Denki calls this product the “SANMOTION F2 STEPPING SYSTEMS TYPE SS2421-5041 (or SS2421-5041P)”.
| Size: |
42 mm square × 11.6 mm (NEMA 17)1 |
|---|---|
| NEMA size: | 17 |
| Weight: | 70 g |
| Shaft diameter: | 5 mm |
| Current rating: | 1000 mA2 |
|---|---|
| Voltage rating: | 3.5 V |
| Model: | SS2421-5041 or SS2421-5041P |
| Holding torque: | 11.8 oz·in |
| Steps per revolution: | 200 |
| Resistance: | 3.5 Ohm2 |
| Inductance per phase: | 1.2 mH |
| Number of leads: | 4 |
| Lead length: | 30 cm |
| Encoders?: | N |
Yes. To avoid damaging your stepper motor, you want to avoid exceeding the rated current, which is 600 mA in this instance. All of our stepper motor drivers let you limit the maximum current, so as long as you set the limit below the rated current, you will be within spec for your motor, even if the voltage exceeds the rated voltage. The voltage rating is just the voltage at which each coil draws the rated current, so the coils of your stepper motor will draw 600 mA at 3.9 V. By using a higher voltage along with active current limiting, the current is able to ramp up faster, which lets you achieve higher step rates than you could using the rated voltage.
If you do want to use a lower motor supply voltage for other reasons, consider using our DRV8834 or STSPIN-220 low-voltage stepper motor drivers.
