Futaba J Connector Pack, Female

This pack contains everything you need to add up to three female Futaba J connectors — the connectors found on many Futaba servos — to custom cables. You can use a crimping tool to attach the included pins to your own 22–26 AWG wires.

2.45

Out of Local Stock

No Stock Available

Our Code: SKU-002898

Supplier Link: [Pololu MPN:1926]


Description

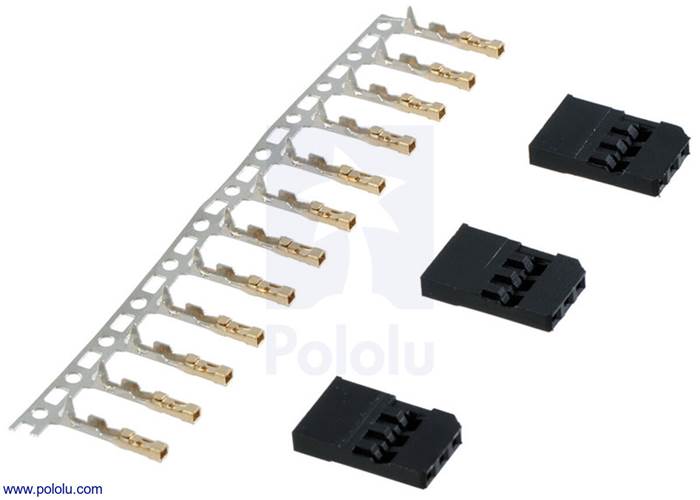

This Futaba J connector has a 0.1" pin spacing and is found on many Futaba servos. It is keyed with a polarizing tab that enforces proper orientation when used with a corresponding male Futaba connector. This pack contains three housings and twelve gold-flashed crimp pins, which is enough for three complete female connectors and three spare pins. The crimp pins are designed for 22–26 AWG wires, and we sell a crimping tool that works well with them. You can use these connectors to make your own custom servo cables, servo extension cables, battery pack cables for plugging into an RC receiver, etc.

We also sell JR connectors, which are very similar but lack the Futaba connector’s polarizing tab/slot, and we carry an variety of premade servo extension and splitter cables.

Note: these connectors are commonly referred to as “male” in the RC hobby industry, so please look carefully at the pictures of female Futaba J connectors below to make sure they are what you want.

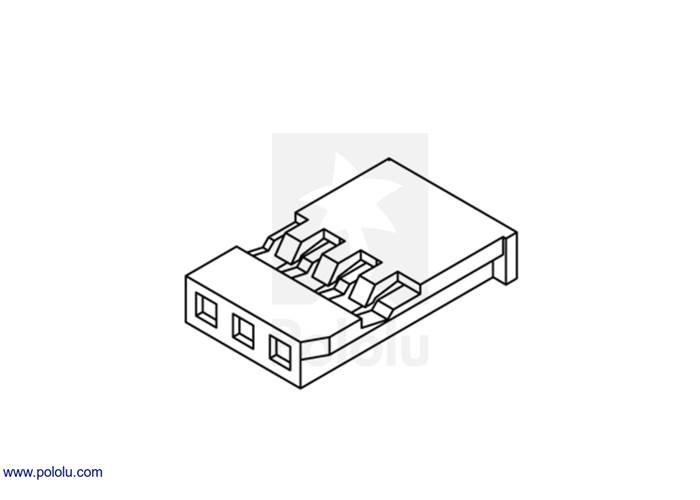

Female Futaba J connector (often referred to as “male” in the RC hobby industy)

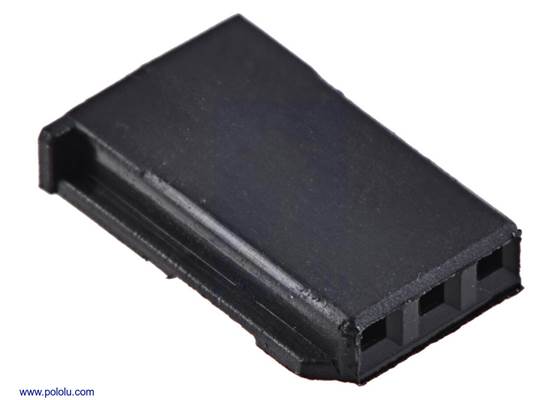

Connector included with the Futaba J connector pack, female


Specifications

General specifications

Gender: female
Wire gauge: 22-26 AWG
Connector: Futaba J
