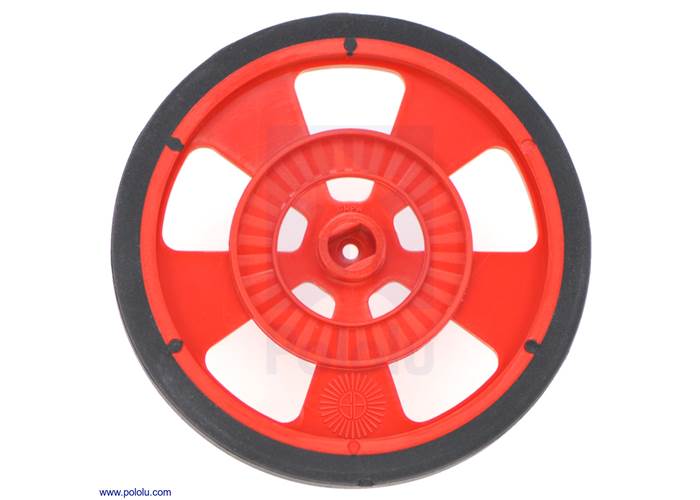

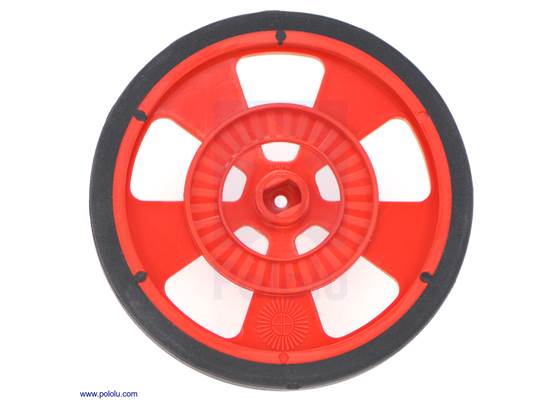

Solarbotics GMPW-R RED Wheel with Encoder Stripes, Silicone Tire

This 2-5/8″ plastic wheel is made specifically for the Solarbotics GM2 , GM3 , GM8 , and GM9 gearbox output shafts, and it also matches the largest Pololu plastic gearmotors . Each wheel has a silicone tyre and 64-stripe encoder pattern molded in. These wheels are sold individually , NOT in pairs.

AUD$ 14.95

Special Order

Shipping from $9.90

+8 more from our supplier in 7-10 days

Our Code: SKU-002451

Supplier Link: [Pololu MPN:980]

This 2-5/8″ plastic wheel is made specifically for the Solarbotics GM2, GM3, GM8, and GM9 gearbox output shafts, and it also matches the largest Pololu plastic gearmotors. Each wheel has a silicone tire and 64-stripe encoder pattern molded in. These wheels are sold individually, NOT in pairs.

Description

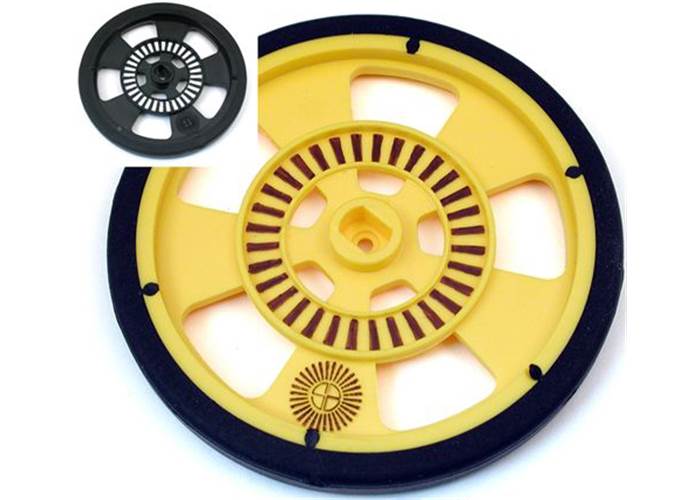

Solarbotics GMPW plastic wheel with molded tire; encoder stripes shown colored in.

The GMPW wheel is made to match the Solarbotics GM2, GM3, GM8, and GM9 gearmotors, and it also matches the largest Pololu plastic gearmotors. This plastic wheel is molded from ABS and has a molded-on thermoplastic silicone tyre with great traction and wear characteristics. There is a 64-stripe encoder pattern on one side of the wheel compatible with the Wheel Watcher. The plastic wheel measures just under 2-5/8″ (69 mm) across by 0.3″ (7.62 mm) wide and is available in blue, yellow, red, and black.

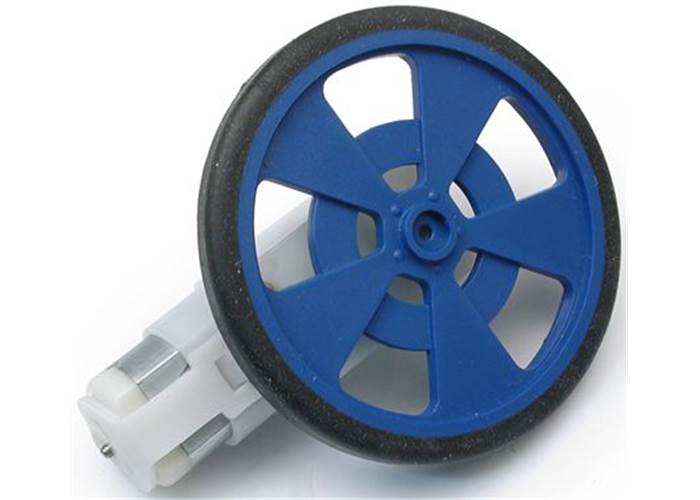

Solarbotics GMPW blue plastic wheel with molded tire and encoder stripes, mounted on a GM9 gearmotor.

Included Parts

One wheel
One screw for mounting to a suitable motor such as those listed under the related products on this page.

Feature Summary

Diameter: just under 2-5/8″ (69 mm)
Tyre width: 0.3″ (7.62 mm)
Tyre: molded-on thermoplastic silicone
Encoder stripes: 64-stripe pattern molded in on one side (compatible with the Wheel Watcher)
Colour options: blue, yellow, red, and black
