Tamiya 70171 3mm Threaded Shaft Set

AUD $9.95

Order As Required

Back orders: Ship 34 units in 7 days

Our Code: SKU-002394

Supplier: [Pololu MPN:733]

The Tamiya 70171 3mm Threaded Shaft Set includes ball joints so you can make control rods with three-dimensional movement. The two threaded shafts are also useful for mounting pulleys.


Description

Instructions for Tamiya 70171 3 mm threaded shaft set

Instructions for Tamiya 70171 3 mm threaded shaft set

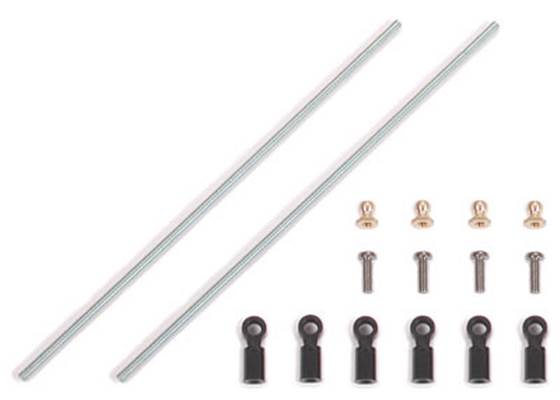

The Tamiya 70171 3 mm Threaded Shaft Set includes two 3 x 150 mm threaded shafts that can be cut to desired lengths and used to mount pulleys. Also included are six ball joints, four ball connector nuts, and four screws that can be used with the shafts to make control rods with three-dimensional movement. The 3 mm diameter of the shafts, screws, and ball nuts make this set compatible with many Tamiya products.

For a set of standard Tamiya shafts, see the Tamiya 70105 3mm Diameter Shaft Set.

Included Parts

  • Two 3 x 150 mm threaded shafts (the whole length of the shafts are threaded)
  • Six 5 mm ball joints
  • Four 5 mm ball connector nuts
  • Four 3 x 10 mm screws
