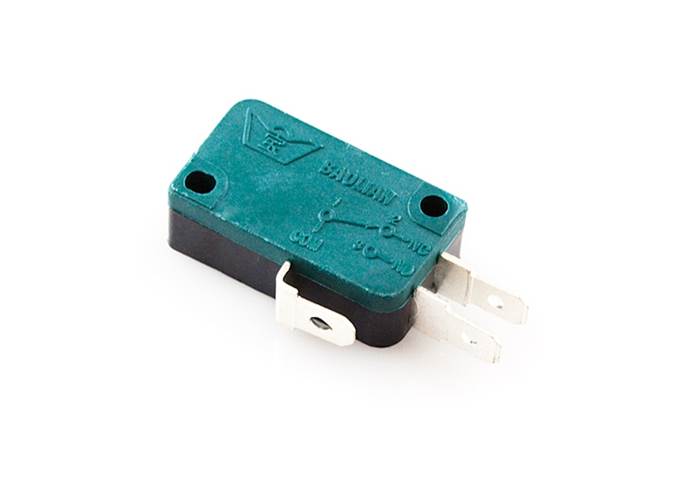

Microswitch - 3-terminal

This is a 3-terminal microswitch with a small push-button. This switch has a great 'clicky' sound to it and a nice tactile feel.Features:Max 4A 125/240VAC2 mounting holesLong mechanical operating lifeContact resistance: less than 0.2ΩInsulation resistance: 500Ω minimum @500VDCRated to 10000 cli...

3.15

Not currently available

Our Code: SKU-000443

Supplier Link: [SparkFun MPN:9506]

Description

This is a 3-terminal microswitch, with a small push-button. This switch has a great 'clicky' sound to it, and a nice tactile feel.

Features:

  • Max 4A 125/240VAC
  • 2 mounting holes
  • Long mechanical operating life
  • Contact resistance: less than 0.2Ω
  • Insulation resistance: 500Ω minimum @500VDC
  • Rated to 10000 clicks

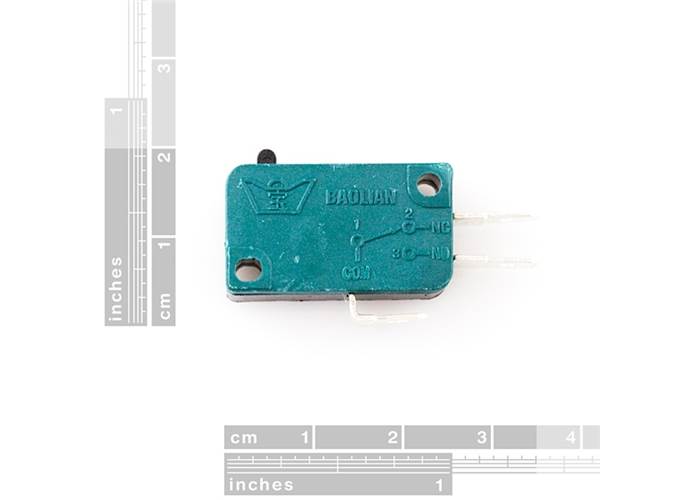

Dimensions:

  • 0.63x1.1x0.42"
  • Weight: 5g

Specifications

  • Max 4A 125/240VAC
  • 2 mounting holes
  • Long mechanical operating life
  • Contact resistance: less than 0.2Ω
  • Insulation resistance: 500Ω minimum @500VDC
  • Rated to 10000 clicks
  • 0.63x1.1x0.42"
  • Weight: 5g

Resources
