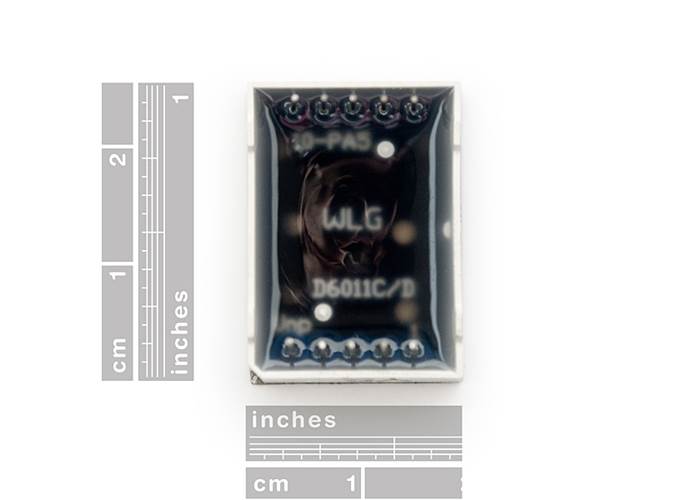

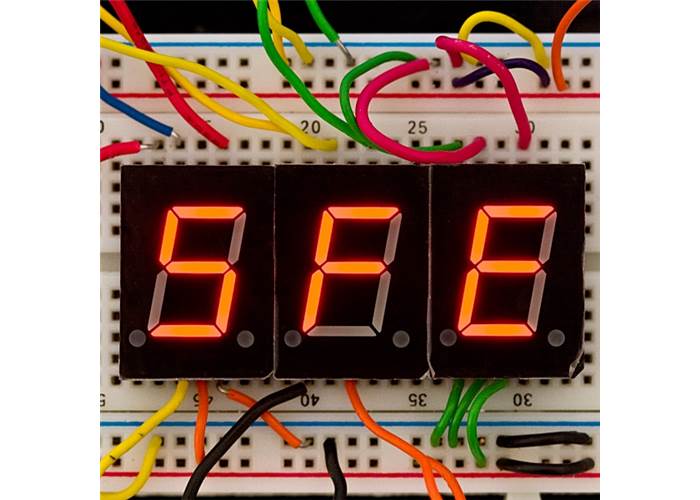

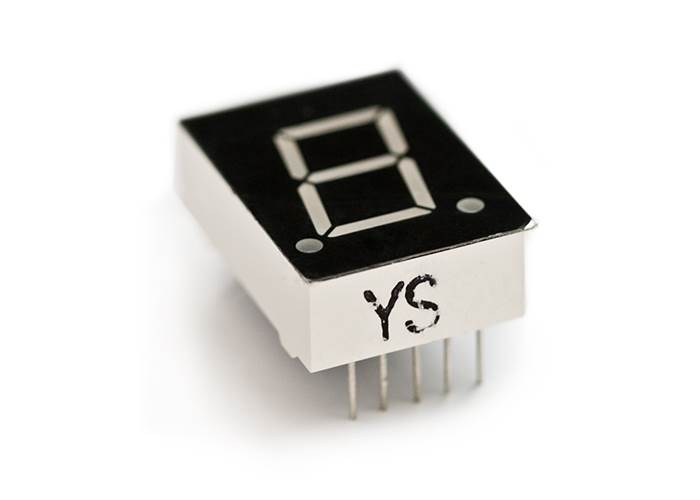

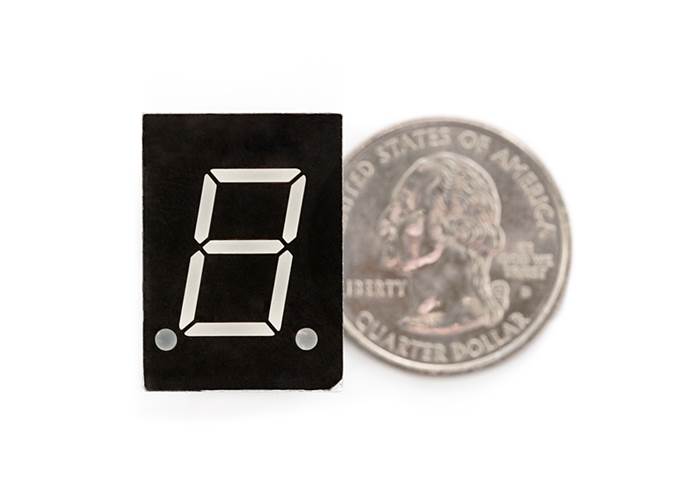

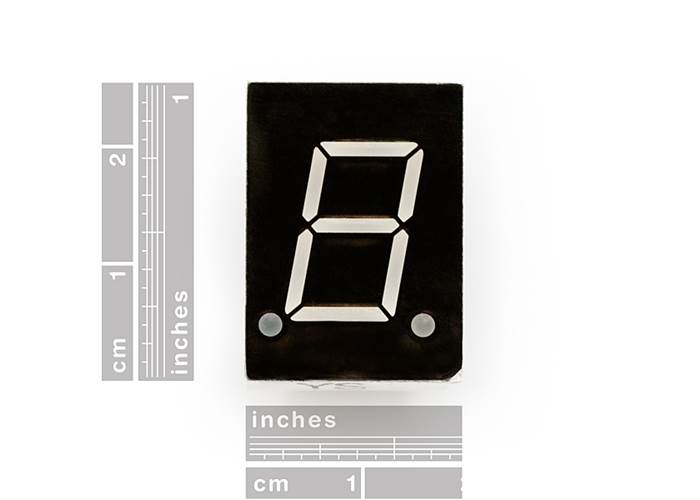

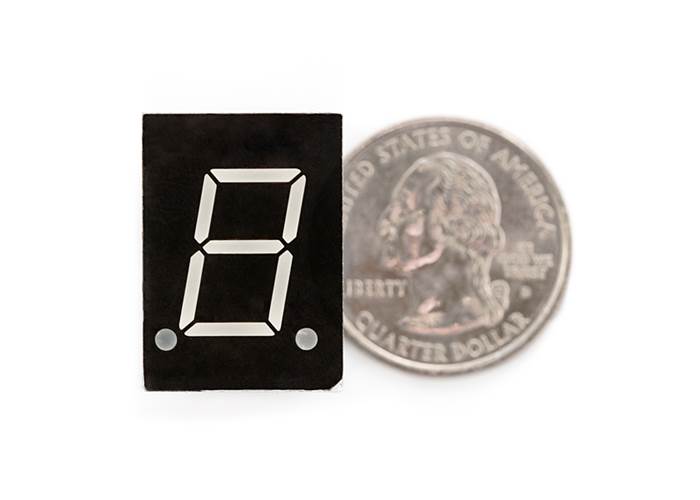

7-Segment Display - LED (Red)

Your basic 7-segment LED. Common anode. Two decimal points but only the one on the right is wired. Digit height is 0.6". Overall height is 1"Documents:Datasheet Arduino Library (Thanks Derek!)

AUD$ 2.90

Special Order

Shipping from $4.90

+407 more from our supplier in 7-10 days

Our Code: SKU-000198

Supplier Link: [SparkFun MPN:8546]

Description

Your basic 7-segment LED. Common anode. Two decimal points, but only the one on the right is wired. Digit height is 0.6". Overall height is 1"

Documents:

Resources
